JGX-0480D-72A Wire Rope Vibration Isolator Factory-Direct Fully Certified Transit Logistics Protection Damper

JGX-0480D-72A Factory-Direct Wire Rope Vibration Isolator — Fully Certified with Transit & Logistics Protection

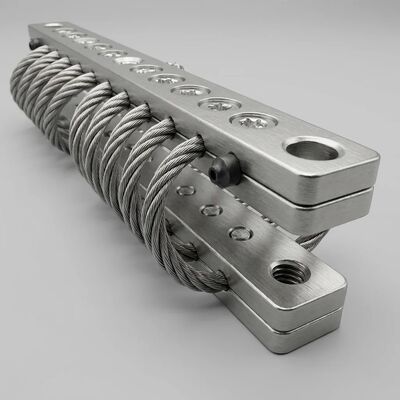

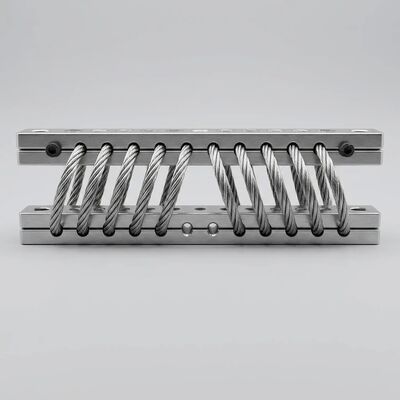

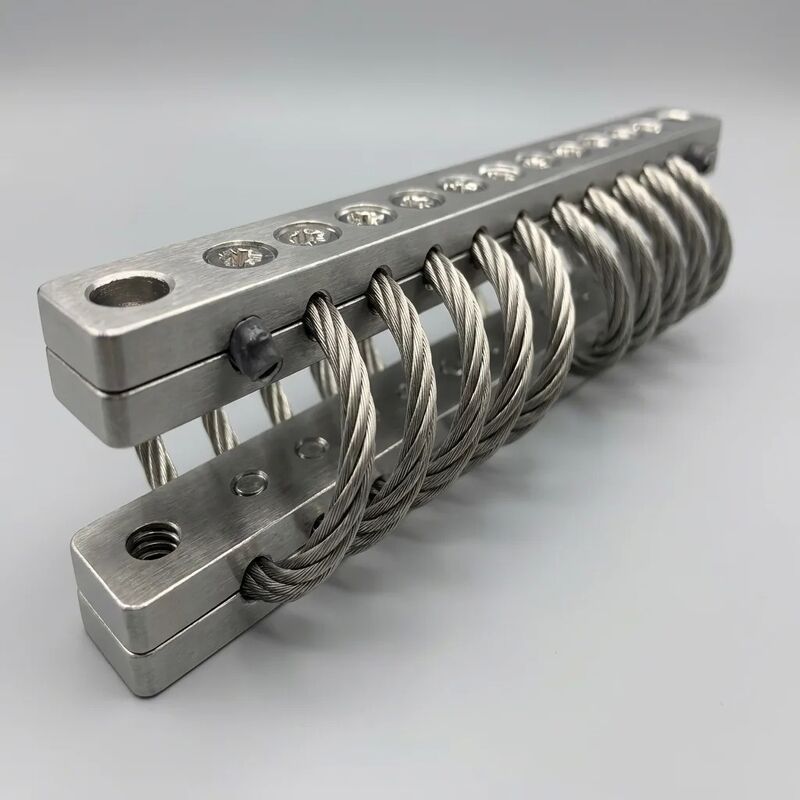

The JGX-0480D-72A from Xi'an Hoan Microwave delivers 72 kg rated isolation capacity with the commercial advantages of factory-direct procurement and comprehensive certification. Its 4.8mm stainless steel 304 wire rope (7*19 strand, 10-coil symmetrical winding) and aluminum alloy 6061-T6 retaining bars with M12 threaded D-type studs are designed and tested to protect sensitive equipment during transit, handling, and logistics operations — from factory floor to final installation site — as well as throughout its operational service life.

Full Engineering Data Sheet

Factory-Direct Advantage — Eliminate the Middleman

Xi'an Hoan is an original equipment manufacturer (OEM), not a trading company. When you purchase the JGX-0480D-72A, you deal directly with the factory that designs, machines, assembles, and tests every unit. This factory-direct model delivers three measurable commercial benefits:

1. Cost Efficiency — No Distributor Markup

The typical industrial vibration isolator supply chain involves manufacturer → regional distributor → local reseller → end user, with each intermediary adding a 20–35% markup. Hoan's factory-direct model compresses this to manufacturer → end user. For volume procurement (100+ units), this translates to unit cost savings of typically 25–40% compared to equivalent specification isolators sourced through distribution channels.

2. Technical Direct Line — Engineer-to-Engineer Communication

When you have a technical question — load calculation, natural frequency prediction, mounting configuration optimization — you communicate directly with Hoan's R&D engineers, not a distributor's sales representative. Our 100+ engineering team provides:

• Pre-sales application engineering: Load analysis, isolation efficiency prediction, mounting recommendation — at no charge for qualified projects
• Custom configuration support: Non-standard bar geometries, alternative coil counts, modified load ratings, special surface treatments
• Post-installation technical support: On-site vibration measurement guidance, troubleshooting, replacement sizing

3. Full Documentation — Every Unit, Every Shipment

As a factory-direct ISO 9001:2015 manufacturer, Hoan provides comprehensive certification and traceability with every order:

• EN 10204 3.1 Material Certificates: Chemical composition and mechanical properties for both the SS304 wire rope stock and Al 6061-T6 bar stock used in your specific production batch
• Individual Load-Deflection Test Reports: Each JGX-0480D-72A is serialized and tested on a calibrated servo-hydraulic test stand. The test report shows: static load vs. deflection curve (3 conditioning cycles + 1 measurement cycle), dynamic stiffness at 5/10/20 Hz, and visual inspection pass/fail for all 10 coil windings
• Certificate of Conformance: Statement of compliance with declared specifications, signed by Hoan's quality manager, with full batch traceability
• Dimensional Inspection Report: Critical-to-quality dimensions (overall length, width, height, stud thread pitch, coil pitch uniformity) measured and recorded per AQL 1.0 sampling plan
• Export Documentation: Commercial invoice, packing list, certificate of origin (Form E/Form F as applicable), and bill of lading — all prepared by Hoan's dedicated export documentation team

Transit & Logistics Protection — Engineered for the Journey

Equipment vibration isolation is not only an operational requirement — it is equally critical during transportation from factory to installation site. Shock and vibration during truck, rail, sea, and air freight can misalign precision assemblies, fatigue structural connections, and cause latent damage that manifests only after commissioning. The JGX-0480D-72A is designed and packaged to protect equipment through the entire logistics chain:

In-Transit Isolation Performance

• Shock survivability > 40 G (11 ms): The 10-coil geometry provides sufficient travel and progressive hardening to absorb transport handling shocks — container loading impacts, rail humping, truck pothole strikes — without transmitting damaging acceleration to the mounted equipment
• Continuous vibration endurance: During extended sea freight (2–6 weeks of 0.5–5 Hz ship engine and wave-induced vibration) or road transport (5–200 Hz road surface excitation), the JGX-0480D-72A maintains isolation without degradation — unlike rubber mounts that can take a compression set when held under static load for weeks during shipping
• Multi-orientation capability: The all-axis isolation design means the isolator functions in any mounting orientation — equipment can be shipped horizontally, vertically, or at any angle without compromising the isolation path

Packaging & Shipping Specifications

Shipping Marks & Handling

• Each master carton marked with: Hoan logo, model number, quantity, gross/net weight, dimensions, batch number, handling symbols (keep dry, this way up, fragile, stack limit)
• Each pallet tagged with: pallet ID number, purchase order reference, destination, total carton count
• Export documentation package attached to Pallet #1 in weatherproof document pouch

Operational Application Domains

• Export Machinery OEMs: Pump skids, compressor packages, generator sets shipped from China to project sites worldwide — equipment that must arrive at the installation site in the same alignment condition it left the factory test stand
• Pre-Installed Equipment Modules: Skid-mounted process units where isolators are installed at the fabrication shop and must survive road transport, ocean freight, and jobsite lifting without adjustment or replacement
• Field-Deployable Systems: Containerized data centers, mobile substations, temporary power generation — equipment that is repeatedly transported and redeployed, requiring isolators that survive multiple shipping cycles
• Heavy Industrial Installations: 72 kg per-mount capacity enables isolation of large motors, industrial fans, centrifugal pumps, and medium-scale rotating machinery in permanent installations

About Xi'an Hoan Microwave — Your Factory-Direct Partner

Founded in 2005 and headquartered in Xi'an, Shaanxi Province — China's historic aerospace manufacturing center — Xi'an Hoan Microwave Co. Ltd. is a specialist OEM manufacturer of vibration isolation solutions. Our 500+ workforce includes 100+ R&D engineers operating within an ISO 9001:2015 certified quality management system. We maintain a comprehensive inventory of standard JGX series isolators for immediate factory-direct shipment, and a dedicated export documentation team that ensures smooth customs clearance and logistics coordination for customers in 35+ countries. All JGX-0480D-72A isolators are 100% load-deflection tested, serialized, and shipped with full EN 10204 3.1 material traceability.

Ready to source factory-direct with full certification? Contact Xi'an Hoan for a quotation on the JGX-0480D-72A. Include your annual volume estimate for volume discount pricing — we respond to all RFQs within 24 hours with complete technical and commercial proposals.
