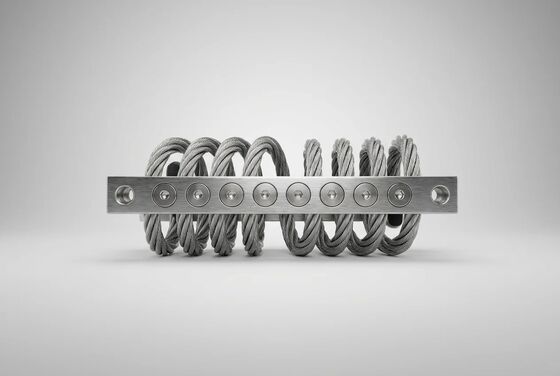

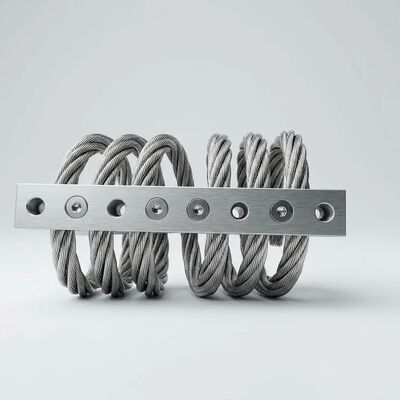

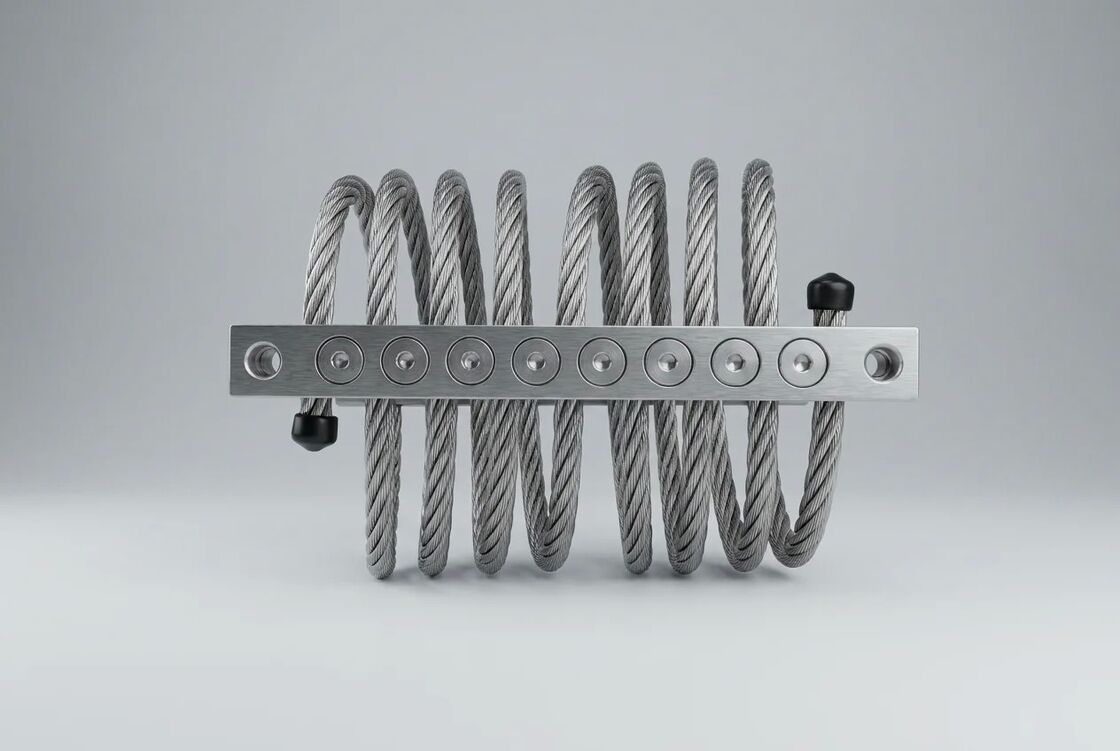

JGX-0648D-68A All-Metal Wire Rope Vibration Isolator Durable Shock Mount with Wide Load Range

Name: JGX-0648D-68A All-Metal Wire Rope Vibration Isolator Durable Shock Mount with Wide Load Range
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0648D-68A
Availability: InStock

Brand Name:	Hoan
Model Number:	JGX-0648D-68A
MOQ:	10 Pieces
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO 9001:2015, RoHS

Product Type:

Wire Rope Vibration Isolator

Wire Rope Diameter:

6.8 Mm

Number Of Wire Loops:

Wire Rope Material:

304 Stainless Steel, Zinc-Phosphatized

Mounting Block Material:

6061-T6 Aluminum Alloy, Hard Anodized

Surface Treatment:

Hard Anodized Oxide Layer 15-20μm

Compression Load Range:

2-45 Kg Per Isolator

Tension Load Range:

1-30 Kg Per Isolator

Shear Load Range:

0.8-25 Kg Per Isolator

Roll Load Range:

0.5-18 Kg Per Isolator

Static Stiffness Compression:

12 ± 3 N/mm

Static Stiffness Tension:

8 ± 2 N/mm

Natural Frequency:

8-15 Hz (load-dependent)

Damping Ratio:

>15% (hysteresis Coulomb Damping)

Maximum Deflection:

±12 Mm Compression / ±8 Mm Shear

Amplification Factor At Resonance:

≤ 3.0

Operating Temperature:

-75°C To +300°C

Mounting Hole Diameter:

8.5 Mm (M8 Bolt Compatible)

Net Weight:

~0.35 Kg

Compliance:

ISO 9001:2015, RoHS

Highlight:

All-Metal Construction Durable

Wide Load Range Support

Corrosion Resistant Shock Mount

Product Description

JGX-0648D-68A All-Metal Wire Rope Vibration Isolator — Technical Overview

The JGX-0648D-68A is a high-performance all-metal wire rope vibration isolator designed for demanding industrial shock and vibration control applications. Engineered with 6.8mm diameter stainless steel wire rope helically wound through precision-machined aluminum alloy clamping blocks, this isolator provides exceptional load-bearing capability and long-term durability without the degradation issues inherent to elastomeric mounts.

Material & Construction

Wire Rope: Multi-strand 304 stainless steel wire rope, 6.8mm nominal diameter, cold-drawn for uniform tensile strength exceeding 1570 MPa. The wire rope is zinc-phosphatized prior to stranding for enhanced internal lubrication and corrosion resistance.
Mounting Blocks: 6061-T6 aluminum alloy with hard anodized surface treatment (15-20μm oxide layer), providing excellent corrosion resistance in humid, saline, and chemically aggressive environments.
Fasteners: 304 stainless steel hex socket cap screws with nylon-insert lock nuts to prevent loosening under sustained vibration.

Load & Performance Data

Model	JGX-0648D-68A
Wire Rope Diameter	6.8 mm
Number of Wire Loops	8
Compression Load Range	2 – 45 kg
Tension Load Range	1 – 30 kg
Shear Load Range	0.8 – 25 kg
Roll Load Range	0.5 – 18 kg
Static Stiffness (Compression)	12 ± 3 N/mm
Static Stiffness (Tension)	8 ± 2 N/mm
Natural Frequency	8 – 15 Hz (load-dependent)
Damping Ratio	>15% (hysteresis damping)
Maximum Deflection	±12 mm (compression) / ±8 mm (shear)
Amplification Factor at Resonance	≤ 3.0
Operating Temperature	-75°C to +300°C
Net Weight per Isolator	~0.35 kg
Mounting Hole Diameter	8.5 mm (clearance fit for M8 bolts)

Quality Assurance

Each JGX-0648D-68A isolator undergoes 100% dimensional inspection, load-deflection curve verification, and surface finish audit before shipment. Batch-traceable material certificates are available upon request. The isolator complies with ISO 9001:2015 quality management standards and RoHS environmental requirements.

Typical Industrial Applications

HVAC compressor and chiller vibration isolation
Precision CNC machinery and coordinate measuring equipment
Marine electronics and navigation instrument mounting
Generator set and pump skid isolation
Industrial control panel and server rack protection
Transport packaging for sensitive instruments

For custom load configurations, multi-isolator system design support, or technical inquiries, please contact our engineering team with your specific equipment weight and operating environment.
