JGX-0956D-104A Transport Grade Wire Rope Vibration Isolator Easy Integration Mobile Protection Shock Mount

JGX-0956D-104A Wire Rope Vibration Isolator — Transport Dynamics & Field Integration

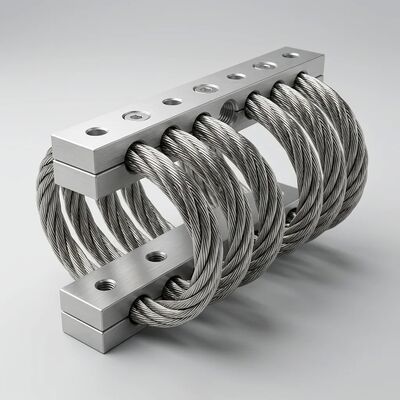

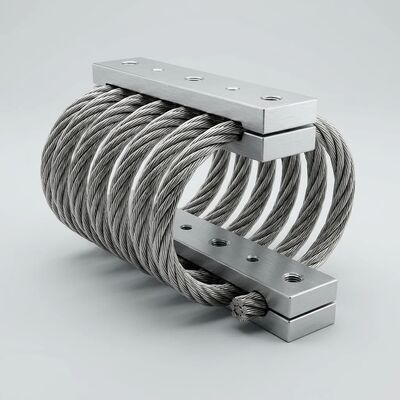

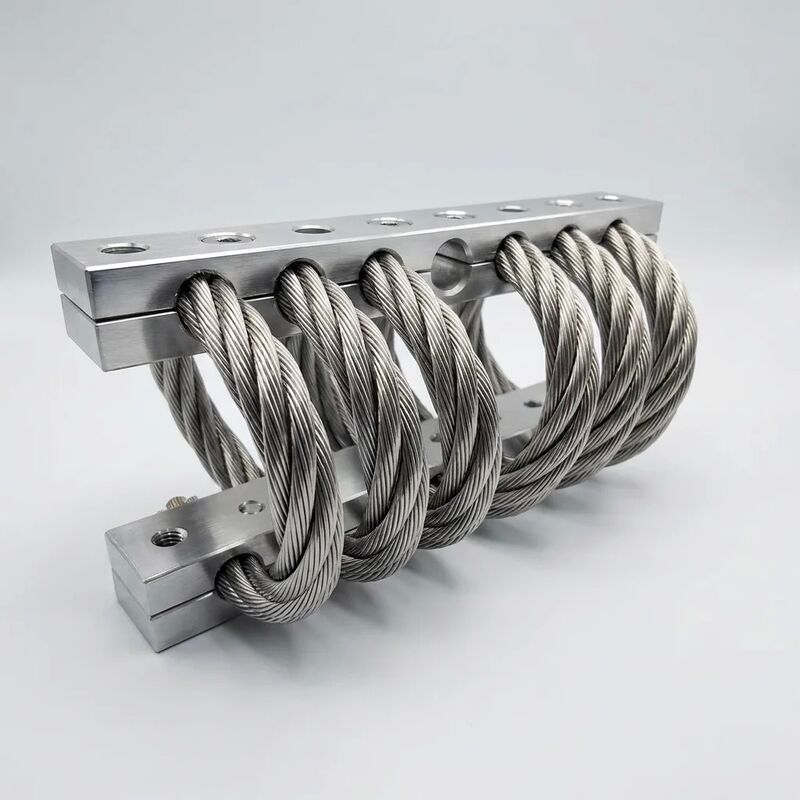

The JGX-0956D-104A addresses the unique challenge of protecting equipment during transport and mobile operation, where vibration environments combine road-induced shock, powertrain harmonics, and unpredictable terrain inputs into a demanding multi-axis loading profile. Engineered around a 10.4mm 304 stainless steel wire rope (7*19 strand construction) with 10 helical loops and 6061-T6 aluminum clamping blocks, this isolator delivers field-proven protection with straightforward bolt-on installation.

Understanding Transport Vibration Environments

Equipment in transit experiences vibration fundamentally different from stationary installations. Road transport generates a composite excitation spectrum spanning 1-200 Hz with dominant energy in the 3-20 Hz band (suspension resonance) and 15-100 Hz band (engine and driveline harmonics). Superimposed on this continuous vibration are discrete shock events—pothole impacts, rail crossing transitions, and container handling drops—generating acceleration peaks of 15-30g with pulse durations of 5-15ms.

The JGX-0956D-104A manages this environment through three complementary mechanisms:

• Continuous Vibration Attenuation: With a natural frequency range of 6-14 Hz (load-dependent), the isolator achieves effective vibration isolation beginning at approximately 20 Hz. At typical diesel engine cruising speeds (1500-1800 RPM, producing 25-30 Hz primary excitation), attenuation exceeds 90%, protecting sensitive electronics and instrumentation from fatigue-inducing high-cycle vibration.
• Transient Shock Absorption: The Coulomb friction between individual wire strands within each loop converts shock energy into low-grade heat during the compression-extension cycle. Rated for shock pulses up to 30g (11ms half-sine), the isolator absorbs energy that would otherwise transmit directly to equipment internals—circuit boards, optical components, and precision bearings.
• Self-Centering Recovery: After a shock event, the elastic recovery of the stainless steel wire rope returns the isolated equipment to its nominal position without residual offset—a critical advantage over elastomeric mounts that can take a permanent compression set after severe shock loading.

Field Integration Engineering

Installation Procedure: The JGX-0956D-104A mounts via two Ø10.5mm through holes on 68 * 48mm center-to-center spacing using standard M10 hex bolts. Apply 25-30 N·m tightening torque (8.8 grade fasteners with flat washer and spring lock washer). No shimming or height adjustment is required—the wire rope loops self-level to the static load within the first compression cycle. For multi-point installations, maintain isolator quantity such that each unit carries 30-60% of its rated compression capacity under static load for optimal isolation performance.

Retrofit Compatibility: The 68 * 48mm bolt pattern matches many common rubber mount form factors in the 80-150mm overall length class, enabling direct mechanical replacement without re-drilling equipment skids or mounting frames. The all-metal construction eliminates the chemical compatibility concerns of rubber mounts—no swelling from diesel fuel or hydraulic fluid exposure, no softening from oil mist, and no embrittlement from UV exposure in open-frame installations.

Design Integration Resources: Engineering support includes 3D CAD models (STEP and IGES formats), 2D dimensioned drawings with geometric tolerancing per ISO 2768-m, and application-specific load-deflection curves. Our application engineers provide complimentary static and dynamic analysis including:

• Multi-degree-of-freedom mounting layout design for non-symmetric equipment mass distributions
• Natural frequency and mode shape calculation to verify separation from excitation frequencies
• Shock response spectrum (SRS) analysis for transport and handling shock qualification
• Isolator life estimation based on measured or specified transport vibration profiles (MIL-STD-810 equivalent road transport spectra available)

Technical Specifications

Mobile & Field Equipment Applications

• Mobile Power Generation: Diesel generator sets (15-100 kVA class) on service trucks, trailers, and skid-mounted emergency power units where road shock and engine vibration combine during transport and stationary operation
• Telecom Shelter Equipment: Base station electronics, rectifier cabinets, and battery racks transported pre-installed in ISO containers to remote sites via unpaved access roads
• Mobile Medical & Laboratory Units: Diagnostic imaging equipment, refrigerated centrifuge isolation, and mobile laboratory instrumentation in containerized field hospitals and research vehicles
• Rail-Mounted Equipment: Trackside signaling cabinets, axle counter electronics, and switch machine controllers exposed to ground-borne vibration from passing trains
• Offshore Containerized Systems: Wellhead control panels, chemical injection skids, and emergency shutdown systems in DNV-certified offshore containers requiring corrosion-resistant isolation in salt-laden atmospheres
• Construction Machinery: Onboard compressor packages, hydraulic power packs, and electronic control modules on crawler excavators, drill rigs, and crushing plants

Comparative Advantage Over Elastomeric Mounts

In mobile applications, rubber vibration isolators typically fail within 2-4 years due to a combination of dynamic stiffening (ozone/UV cross-linking), compression set (static load creep), and chemical attack (fuel/oil swelling). The JGX-0956D-104A eliminates all three failure modes through all-metal construction. For fleet operators and equipment packagers, this translates to reduced warranty claims, elimination of scheduled isolator replacement, and consistent vibration protection over the full equipment service life. Contact our engineering team for a comparative life-cycle cost analysis specific to your equipment platform.
