JGX-0956D-104A Wire Rope Vibration Isolator — Material Engineering & Acoustic Performance

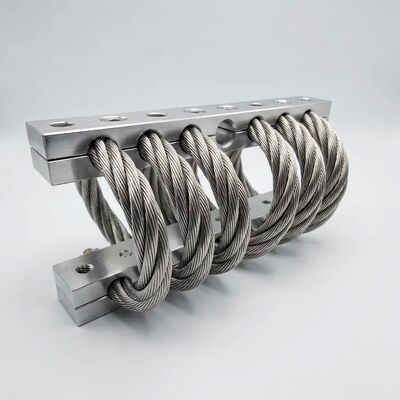

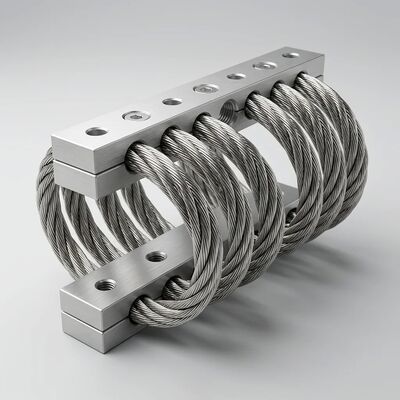

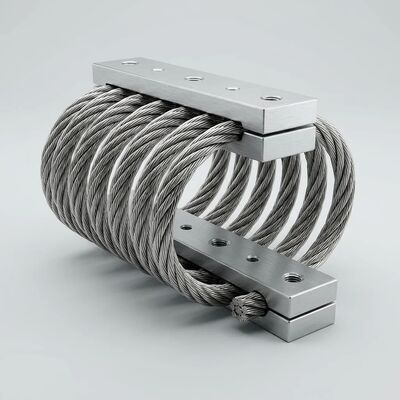

The JGX-0956D-104A combines premium metallurgy with advanced vibration physics to deliver exceptional resonance control and noise reduction for industrial machinery. At its core, a 10.4mm diameter 304 stainless steel wire rope—constructed in a 7*19 strand configuration with regular right-hand lay—is helically wound through 10 continuous loops and clamped between two 6061-T6 aluminum alloy blocks with 25-30μm hard anodized surfaces.

Material Metallurgy & Quality Chain

Wire Rope Metallurgy: The 7*19 construction (7 strands, each containing 19 individual wires) provides an optimal balance of flexibility and fatigue life. Each wire is cold-drawn from UNS S30400 austenitic stainless steel to a minimum tensile strength of 1570 MPa. The zinc-phosphatization treatment—applied after stranding—creates a microcrystalline phosphate coating that serves dual purposes: reducing inter-strand friction coefficient for consistent Coulomb damping behavior, and providing a sacrificial corrosion barrier that complements the inherent passivity of the 304 stainless substrate.

Aluminum Block Engineering: The 6061-T6 clamping blocks (approximately 12mm thickness each, contributing to the overall ~40mm profile height) undergo solution heat treatment at 530°C followed by water quenching and artificial aging at 175°C for 8 hours to achieve the T6 temper condition. Subsequent hard anodizing per MIL-A-8625 Type III produces a 25-30μm oxide layer with surface hardness exceeding 400 HV—comparable to case-hardened tool steel—providing both electrical isolation (dielectric strength >800V) and corrosion resistance exceeding 1000 hours in neutral salt spray per ASTM B117.

Full Traceability: Every JGX-0956D-104A carries batch-level traceability linking the finished isolator to raw material mill certificates. Chemical composition analysis (C, Mn, P, S, Si, Cr, Ni per ASTM A240), mechanical property verification (yield strength, tensile strength, elongation), and intergranular corrosion testing (ASTM A262 Practice E) are documented and available upon request.

Acoustic & Resonance Performance

Uncontrolled machinery vibration manifests as both structural fatigue and airborne noise—two problems the JGX-0956D-104A addresses simultaneously through its non-linear stiffness and hysteresis damping characteristics:

• Transmissibility Control: At excitation frequencies above √2 * the system natural frequency (approximately 20 Hz for typical installations), vibration transmissibility drops below unity, achieving >90% isolation at operating speeds. The non-linear stiffening behavior prevents amplitude growth even as excitation approaches resonance during equipment start-up and coast-down.
• Resonance Amplification Suppression: With a Q factor ≤ 2.8 at resonance versus 10-50* for undamped spring mounts, the JGX-0956D-104A limits peak transmitted force to well below structural damage thresholds without requiring tuned-mass dampers or active control systems.
• Structure-Borne Noise Attenuation: The mechanical impedance discontinuity at the wire rope-to-mounting-block interface reflects and dissipates vibrational energy before it reaches building structures. Field measurements demonstrate 15-25 dB reduction in structure-borne noise transmission in the 100-2000 Hz octave bands most critical for perceived acoustic comfort.
• Broadband Effectiveness: Unlike viscoelastic dampers whose performance is temperature and frequency dependent, the Coulomb (dry friction) damping mechanism of the wire rope isolator maintains consistent energy dissipation from 5 Hz to over 500 Hz across the full -75°C to +300°C operating envelope.

Complete Technical Specifications

Industrial Application Fields

• Compressor Stations: Reciprocating and screw compressor isolation in natural gas processing, refrigeration plants, and pneumatic systems—where low-frequency pulsation and harmonic excitation demand high-damping isolation
• Precision Metrology: Coordinate measuring machines (CMM), optical comparators, and laser interferometry benches requiring sub-micron isolation from building-borne vibration
• Heavy HVAC Equipment: Centrifugal chiller isolation in commercial high-rise buildings, where structure-borne noise transmission to occupied floors must be minimized
• Industrial Motor-Generator Sets: Variable-frequency drive (VFD) motor isolation where inverter-induced high-frequency harmonic currents excite mechanical resonances in the motor frame
• Test & Calibration Laboratories: Vibration-sensitive analytical balances, microscope workstations, and environmental test chamber isolation

For detailed acoustic performance curves, material certificates, or application-specific isolation system design, please contact our engineering team. We provide complimentary natural frequency verification and load distribution analysis for your specific equipment configuration.
