JGX-1278D-310B Multi-Axis Vibration Shock Isolator Ensuring Continuous Equipment Protection with Fail-Safe Structure

JGX-1278D-310B — 6-DOF Multi-Axis Isolator with Inherent Fail-Safe Architecture

Real-world vibration is rarely unidirectional. Rotating machinery, seismic events, and impact loads produce complex motion across compression, tension, roll, pitch, yaw, and shear axes simultaneously. The JGX-1278D-310B Wire Rope Vibration Isolator is engineered from the ground up for this multi-axis reality, delivering effective isolation in all six degrees of freedom (6-DOF). Equally important, its fail-safe interlocking structure guarantees that the wire rope element cannot separate from the mounting blocks—even under overload conditions that would destroy conventional isolators.

Six Degrees of Freedom, One Integrated Solution

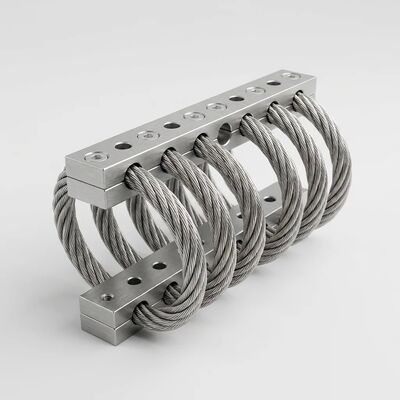

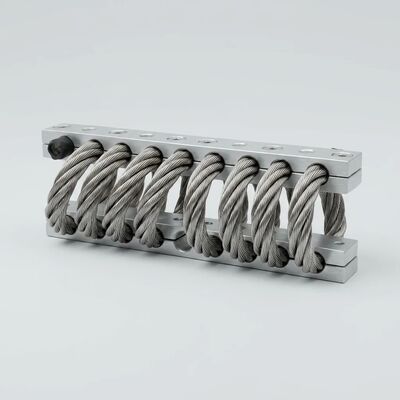

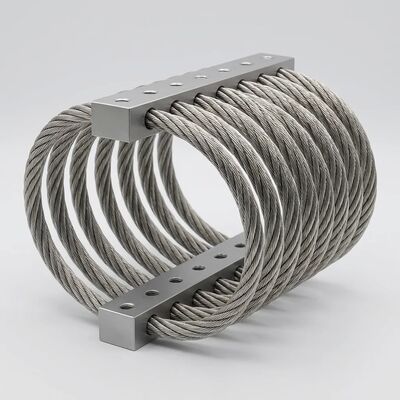

Each JGX-1278D-310B unit features a precision-formed helical wire rope loop, fabricated from AISI 304 stainless steel and anchored at both ends by 6061-T6 aluminum alloy clamping bars. The geometry of this configuration—8 coils of 6.4 mm diameter wire rope, mounted at 45° angled slots—creates a nonlinear stiffness characteristic that stiffens progressively under increasing load. This behavior is critical for applications where shock and steady-state vibration coexist:

• Compression axis: Load capacity up to 50 kg static, with deflection range of 3-8 mm varying by preload
• Roll and shear axes: The helical coil structure buckles laterally in a controlled manner, absorbing off-axis energy without bottoming out
• Tension axis: The interlocking bar design prevents wire rope pull-out, maintaining structural continuity even when the mounted equipment experiences uplift forces
• Shock tolerance: Transient shock loads up to 75 kg per mount are handled without permanent deformation

The resonance amplification factor is maintained below 3 at resonance, meaning the isolator does not amplify vibration even when the excitation frequency coincides with the system's natural frequency—a critical safety margin for unpredictable operational environments.

Fail-Safe by Design, Not by Add-On

Conventional wire rope isolators rely solely on friction and clamping force to retain the rope element. Under extreme loading, these designs risk rope slippage or complete disengagement—a failure that leaves heavy equipment suddenly unsupported. The JGX-1278D-310B takes a fundamentally different approach.

The clamping bars incorporate a machined interlocking groove profile that mechanically captures the wire rope terminations. Rather than depending on bolt torque alone, this geometry creates a positive mechanical lock: the harder the rope pulls, the tighter the interlock engages. The result is a fail-safe load path that keeps the isolator structurally intact regardless of overload direction or magnitude.

Additional reliability factors built into the JGX-1278D-310B:

• The multi-strand rope construction contains hundreds of individual AISI 304 wires. Even if a single strand develops a flaw, the remaining strands continue carrying the load—there is no single point of failure.
• 6061-T6 aluminum clamping blocks are anodized for electrical insulation and supplemental corrosion resistance, preventing galvanic coupling between dissimilar metals in humid or marine environments.
• The entire assembly has been thermal-cycled from -40°C to +200°C with zero change in clamping preload, validating the design for arctic installations and engine-compartment mounting alike.

Engineered for the World's Toughest Duty Cycles

Deployed Across the Most Demanding Industries

• Offshore Oil & Gas Platforms: Protect generator skids, pump packages, and control cabinets from combined wave-induced vibration and occasional impact. Salt spray resistance verified to 500+ hours per ASTM B117
• Aerospace Ground Support Equipment (GSE): Isolate sensitive test stands, calibration rigs, and ground power units at airport maintenance facilities where reliability directly impacts flight safety schedules
• Seismic Zone Emergency Systems: Maintain structural integrity of backup generators and fire pump sets in regions subject to earthquake loading; the fail-safe design remains engaged even through multi-directional ground motion
• Heavy Industrial Presses & Stamping Lines: Absorb repetitive high-amplitude shock from forging hammers, injection molding machines, and metal stamping presses without fatigue degradation
• Telecommunications Base Stations: Protect rooftop and tower-mounted radio units, antenna positioning systems, and backup battery racks from wind-induced oscillation and thermal expansion cycling

Contact our engineering team today for a detailed load-deflection curve, custom mounting pattern drawings, or a quotation for the JGX-1278D-310B configured to your specific multi-axis isolation requirements.
