JGX-0240D-6.3A Wire Rope Vibration Isolator High Fatigue Life Dual-Mode Operation Transit Protection Non-Linear Damping

JGX-0240D-6.3A Wire Rope Vibration Isolator – Metallurgical Fatigue Science Applied to Continuous-Duty Isolation

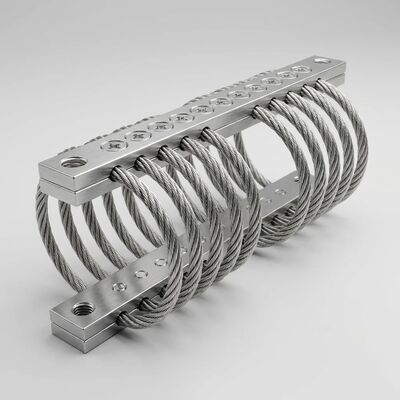

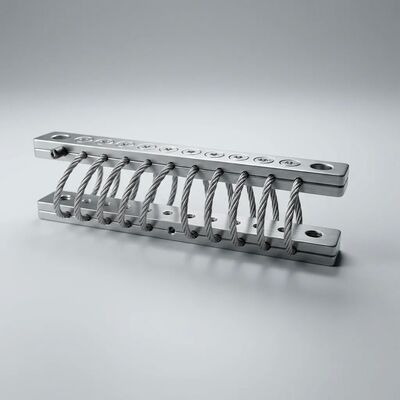

The JGX-0240D-6.3A represents Xi'an Hoan's mid-range wire rope vibration isolator in the JGX-0240 series, employing 2.4 mm diameter stainless steel 304 cable arranged in a refined 10-loop geometry and rated for 6.3 kg static load per unit. With a compact 0.45 kg self-weight, this isolator is engineered from first principles to address three critical requirements in industrial equipment protection: metallurgically-guaranteed high fatigue life for 24/7 continuous-duty machinery, integrated dual-mode protection that eliminates the need for separate operational and transit isolation systems, and non-linear progressive damping that inherently prevents mechanical bottoming out during overload events without requiring external snubbers or travel stops. ISO 9001:2015 certified manufacturing ensures batch-to-batch consistency.

The Metallurgy of Infinite Fatigue Life

Fatigue failure in mechanical components follows well-characterized principles: cyclic stress amplitude, mean stress level, material endurance limit, and stress concentration factors collectively determine whether a component will eventually fail or survive indefinitely. The JGX-0240D-6.3A's wire rope design exploits these principles for effectively unlimited service life:

• Below the Endurance Limit: Austenitic stainless steels exhibit a true fatigue endurance limit – a stress amplitude below which fatigue failure does not occur regardless of the number of cycles. Each of the 133 individual wires in the 7*19 strand construction operates at a stress level below this threshold under rated load conditions, meaning the material never enters the finite-life fatigue regime. This is fundamentally different from elastomeric mounts where polymer chain scission accumulates with every cycle, guaranteeing eventual failure
• Distributed Strain Architecture: When the isolator deflects, bending curvature is distributed across all 10 wire rope loops. Within each loop, the 7*19 strand geometry further distributes bending across 7 outer strands, each comprising 19 individual wires. This multi-level load sharing eliminates the stress concentrations that initiate fatigue cracks in simpler spring or elastomer designs
• Fretting-Wear Resistance: The inter-strand friction that provides damping also presents a potential fretting concern. However, the stainless steel wire surfaces develop a stable, self-limiting oxide glaze under repeated micro-slip conditions. This tribological layer protects the underlying metal while maintaining the friction coefficient necessary for effective damping, without the progressive material loss seen in poorly-matched sliding pairs
• No Environmental Acceleration: Fatigue crack growth in most engineering alloys is accelerated by corrosive environments (corrosion fatigue). The JGX-0240D-6.3A's stainless steel 304 construction is immune to this acceleration mechanism in all normal industrial environments, including marine atmospheres and mild chemical exposure. The fatigue performance measured in laboratory air is representative of installed performance throughout the isolator's lifetime

Dual-Mode Protection: Eliminating the Transit-Versus-Operation Compromise

Traditional equipment isolation strategies often create an operational conflict: soft mounts optimize vibration isolation during operation but allow excessive movement during transport, while stiff mounts protect against transit shock but provide poor vibration attenuation in service. The JGX-0240D-6.3A resolves this through its inherent mechanical characteristics:

• Operational Mode: Under normal vibration amplitudes (±2–5 mm), the wire rope loops operate in a low-stiffness regime where the inter-strand friction provides consistent >15% damping. The isolator's natural frequency of 12–20 Hz (load-dependent) is positioned below typical machinery excitation frequencies, delivering transmissibility <1 for effective isolation during continuous operation
• Transit Mode (Automatic): When subjected to the larger displacements typical of transportation shock (±8–15 mm), the wire rope geometry transitions to its progressive stiffness region. The effective spring rate increases non-linearly, limiting total displacement while simultaneously increasing the Coulomb damping force – larger movements generate proportionally more friction. The isolator absorbs handling drops, vehicle impacts, and rail shock without bottoming out and without requiring any manual configuration change
• Seamless Transition: There is no discrete switching point between modes. The stiffness and damping characteristics vary continuously with displacement amplitude, ensuring smooth, predictable behavior across all operating and transit conditions. Equipment designers do not need to specify separate operational and transit isolation systems, simplifying both the mechanical design and the installation/commissioning workflow
• Installation Simplification: Because the JGX-0240D-6.3A is always active in both modes, there are no lock-down bolts to remove after transport, no transit brackets to discard, and no risk of equipment damage from forgotten shipping restraints. The isolators installed at the factory protect the equipment through shipping, handling, installation, commissioning, and the entire operational life

Non-Linear Damping Mechanics: Built-In Bottoming-Out Prevention

Linear vibration isolators have a well-known vulnerability: when excitation exceeds the design amplitude, the isolator deflects to its mechanical limit and impacts the travel stop, transmitting a shock pulse directly to the protected equipment. The JGX-0240D-6.3A eliminates this failure mode through geometry-driven non-linearity:

• Progressive Geometric Stiffening: As the wire rope loops deflect toward their maximum displacement, the cable geometry changes in ways that increase the effective stiffness. The loops tighten, the bend radius decreases, and the load path through the stranded cable becomes more direct. This geometric effect produces a smoothly increasing force-displacement curve that approaches, but does not reach, a hard mechanical limit
• Amplitude-Proportional Energy Dissipation: Coulomb friction force is proportional to the normal force between sliding surfaces. As wire rope tension increases with deflection, the inter-strand contact pressure increases, raising the friction force and therefore the energy dissipated per cycle. Under extreme shock conditions, the instantaneous damping ratio can exceed 25%, compared to the nominal >15% under normal vibration amplitudes
• Self-Centering Elastic Recovery: After any deflection event, the wire rope's elastic strain energy returns the isolator precisely to its neutral position. There is no permanent set, no ratcheting drift, and no requirement for manual re-centering after a shock event. This self-centering behavior is inherent to the metallic spring characteristics of the cable

JGX-0240D-6.3A Technical Specifications

Surface Treatment Options for Clamping Bars

• White Anodizing (Standard): Electrolytic aluminum oxide layer, 5–15 μm thickness, electrically non-conductive, natural metallic appearance. Suitable for indoor industrial and general equipment applications
• Hard Anodizing (Optional): Deep oxide layer, 25–50 μm thickness, significantly increased surface hardness (400–500 HV). Selected for abrasive environments, outdoor installations, or applications requiring enhanced mechanical durability at mounting interfaces
• Stainless Steel Clamping Bars (Optional): Full stainless construction for marine splash zones, chemical plant atmospheres, or food-grade washdown environments. Passivated per ASTM A967

Performance Characteristics Summary

• Metallurgically unlimited fatigue life – operates below material endurance limit under rated conditions
• Dual-mode protection active at all times – no mode switching, no lock-down hardware, no transit-specific procedures
• Non-linear progressive damping – built-in overload protection without external snubbers or travel stops
• Zero creep and zero ageing – no viscoelastic relaxation, no oxidative hardening, stable properties indefinitely
• All-axes isolation – single compact unit handles compression, shear, and roll inputs simultaneously
• Environmentally immune construction – unaffected by chemicals, seawater, ozone, UV, humidity, salt spray
• Wide temperature capability – full performance from −40°C to +200°C without derating
• Maintenance-free operation – no inspection schedule, no lubrication, no parts replacement

Industry Application Examples

About Xi'an Hoan Microwave Co. Ltd.

Headquartered in Xi'an, China and operating since 2005, Xi'an Hoan has established itself as a specialized manufacturer of vibration isolation and energy absorption products. The company's ISO 9001:2015 certified facility employs over 500 staff, including an engineering department of more than 100 specialists focused on vibration analysis, materials engineering, and product development. Xi'an Hoan's product range encompasses wire rope isolators, vibration mounts, friction dampers, shock absorbers, and LC filters, serving customers across factory automation, marine engineering, power generation, railway systems, building services, and precision instrumentation in over 25 countries worldwide.

Contact our engineering department today to discuss your continuous-duty vibration isolation application, request fatigue performance documentation, or arrange prototype evaluation of the JGX-0240D-6.3A under your specific operating conditions.
