JGX-0240D-6.3A Wire Rope Vibration Isolator Non-Magnetic Low-Permeability Design Eco-Friendly RoHS REACH Compliant

JGX-0240D-6.3A Wire Rope Vibration Isolator – Non-Magnetic Materials Engineering for EMI-Sensitive and Eco-Regulated Installations

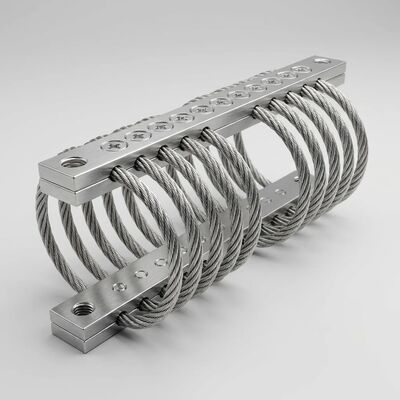

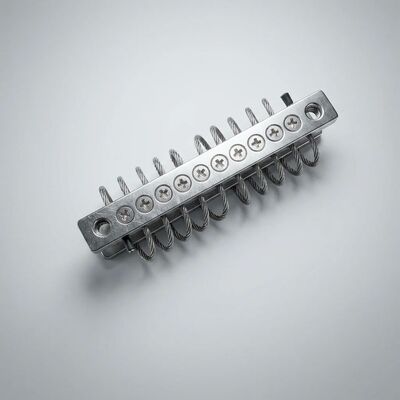

The JGX-0240D-6.3A is a mid-range wire rope vibration isolator from the JGX-0240 series featuring 2.4 mm diameter stainless steel cable in a 10-loop architecture rated for 6.3 kg static load. What distinguishes this configuration is its availability with fully non-magnetic, low-magnetic-permeability material selections and verified RoHS and REACH environmental regulatory compliance – making it the appropriate choice for installations near magnetic resonance imaging equipment, particle beam instrumentation, precision electromagnetic measurement apparatus, and facilities governed by strict environmental substance restrictions. All configurations are produced under Xi'an Hoan's ISO 9001:2015 certified quality management system.

Understanding Magnetic Permeability and Its Impact on Precision Equipment

Magnetic permeability (μr) quantifies how a material responds to an external magnetic field. Materials with μr significantly greater than 1 concentrate magnetic flux lines, distorting the field in their vicinity. For precision scientific and medical equipment, even small field distortions from nearby structural hardware can introduce unacceptable measurement errors:

• MRI Image Artifacts: Ferromagnetic isolator components near an MRI bore create magnetic susceptibility artifacts – localized signal voids and geometric distortions in the reconstructed image. These artifacts can mask pathology or create false-positive indications, compromising diagnostic accuracy. Non-magnetic isolator hardware eliminates this artifact source entirely
• Electron Microscopy Beam Deflection: Scanning and transmission electron microscopes direct electron beams with electromagnetic lenses. Stray magnetic fields from nearby ferrous hardware deflect the beam, degrading resolution, introducing astigmatism, and complicating column alignment procedures. Non-magnetic isolator materials preserve beam path integrity
• Mass Spectrometer Mass Accuracy: Magnetic sector and ion cyclotron resonance mass spectrometers depend on precise magnetic field uniformity for mass accuracy. Proximity of ferromagnetic materials distorts the field, shifting mass calibration and reducing resolving power. Low-permeability isolators avoid this interference

Material Options for Controlled Magnetic Signature

Material Certification: Mill test certificates documenting chemical composition per ASTM A240/A276 and magnetic permeability measurements per ASTM A342 can be provided with each production batch, supporting installation qualification in regulated environments.

Environmental Regulatory Compliance: RoHS and REACH

Access to European and other regulated markets increasingly requires documented compliance with substance restriction regulations. The JGX-0240D-6.3A has been verified against the two most globally significant frameworks:

• RoHS (Restriction of Hazardous Substances, Directive 2011/65/EU including Amendment 2015/863): Laboratory analysis confirms that all constituent materials fall below the maximum concentration thresholds for the ten restricted substances: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), polybrominated diphenyl ethers (PBDE), bis(2-ethylhexyl) phthalate (DEHP), butyl benzyl phthalate (BBP), dibutyl phthalate (DBP), and diisobutyl phthalate (DIBP). The all-metal construction is inherently free of phthalate plasticizers and brominated flame retardants that commonly appear in elastomer-based vibration isolation products
• REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals, Regulation EC 1907/2006): A comprehensive substance inventory confirms that no material or process chemical used in the JGX-0240D-6.3A's manufacture contains Substances of Very High Concern (SVHC) at concentrations exceeding 0.1% weight-by-weight. This includes the complete absence of substances listed in Annex XIV (Authorisation List) and Annex XVII (Restrictions List). Full material disclosure documentation is maintained and available for supply chain due diligence submission
• End-of-Life Material Recovery: Both the stainless steel wire rope and aluminum alloy clamping bars are 100% recyclable through established metal recovery streams. The materials carry positive scrap value and can be processed without disassembly or hazardous waste handling. This supports compliance with the Waste Electrical and Electronic Equipment (WEEE) Directive and similar extended producer responsibility frameworks globally
• Conflict Minerals Reporting: Supply chain due diligence confirms that tin, tantalum, tungsten, and gold (3TG) used in the JGX-0240D-6.3A, if present, are sourced from smelters conformant with OECD Due Diligence Guidance. Documentation available for SEC Rule 13p-1 (Dodd-Frank Section 1502) compliance reporting

Continuous-Duty Fatigue Performance for Regulated Environments

Equipment in medical, scientific, and environmental monitoring applications frequently operates continuously, making isolator reliability a patient safety and data integrity concern. The all-metal JGX-0240D-6.3A delivers consistent performance without the degradation mechanisms that limit elastomeric isolator lifespan:

• Sterilization Cycle Survivability: Medical and laboratory equipment undergoes repeated sterilization. The JGX-0240D-6.3A withstands autoclave sterilization (saturated steam at 121°C or 134°C), gamma irradiation (standard 25 kGy dose, repeatable), ethylene oxide gas exposure, and hydrogen peroxide vapor/plasma low-temperature sterilization without any change in mechanical properties or dimensional stability. Elastomeric isolators degrade under gamma and thermal sterilization, typically surviving fewer than 20 cycles before requiring replacement
• Chemical Cleaning Compatibility: Common laboratory and clinical disinfectants including 70% isopropyl alcohol, sodium hypochlorite solutions (up to 10%), quaternary ammonium compounds, hydrogen peroxide solutions, and peracetic acid formulations have no effect on stainless steel or anodized aluminum. No swelling, cracking, or softening occurs – properties that rapidly degrade rubber isolators upon chemical exposure
• Outgassing in Sensitive Environments: The 100% metallic construction eliminates volatile organic compound emissions entirely. For mass spectrometry laboratories where outgassing from nearby materials elevates background spectra, for optical laboratories where molecular film deposition degrades mirror and lens performance, and for semiconductor cleanrooms where airborne molecular contamination impacts yield, the JGX-0240D-6.3A contributes zero contamination to the operating environment

Technical Specifications

Key Characteristics

• Non-magnetic material options – μr < 1.02 with 316L configurations, verified per ASTM A342
• Full RoHS compliance – all ten restricted substances below MCV thresholds
• Full REACH compliance – zero SVHC above 0.1% w/w, full material disclosure available
• 100% recyclable at end of life – stainless steel and aluminum recovery through standard metal recycling
• Sterilization compatible – autoclave, gamma, EtO, and H₂O₂ plasma without degradation
• Chemical cleaning immune – common laboratory disinfectants and industrial cleaning agents have no effect
• Zero outgassing – no volatile organic compounds, no molecular film deposition, no particulate shedding
• No creep and no ageing – metallurgically stable properties for the full equipment lifetime
• Wide temperature range – −40°C to +200°C without mechanical property change
• Maintenance-free – no scheduled inspection, lubrication, or replacement required

Application Examples by Sector

About Xi'an Hoan Microwave Co. Ltd.

Founded in 2005 and headquartered in Xi'an, China, Xi'an Hoan Microwave Co. Ltd. is a specialized manufacturer of vibration isolation and energy absorption products. The company employs over 500 professionals, including an engineering department of 100+ specialists in vibration analysis, materials science, and quality assurance. The ISO 9001:2015 certified manufacturing facility produces wire rope isolators, vibration mounts, friction dampers, shock absorbers, and LC filters. Xi'an Hoan serves customers in over 25 countries across medical imaging, analytical instrumentation, semiconductor manufacturing, scientific research, environmental monitoring, and precision engineering sectors. The company maintains comprehensive material certification and regulatory compliance documentation to support customer qualification requirements in regulated markets worldwide.

Contact our technical compliance team today to request RoHS/REACH declarations, magnetic permeability test certificates, or a material specification consultation for non-magnetic JGX-0240D-6.3A configurations in your EMI-sensitive or eco-regulated application.
