JGX-0320D-17A Wire Rope Vibration Isolator Redundant Secondary Shock Insurance Instant Visual Inspectability

JGX-0320D-17A Wire Rope Vibration Isolator — Field-Serviceable Shock Protection with Built-In Redundancy

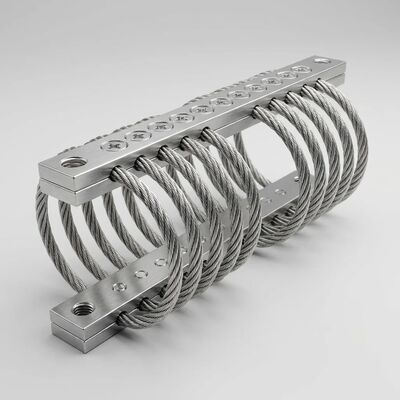

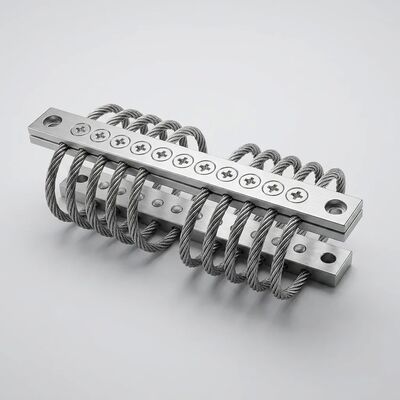

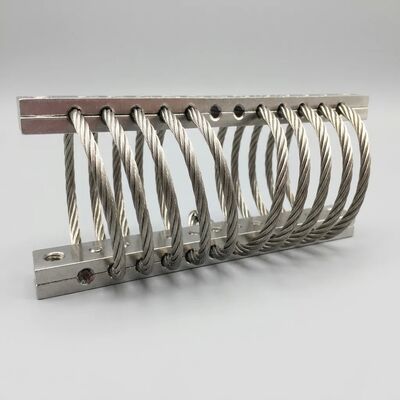

The JGX-0320D-17A addresses a critical gap in vibration isolation design: what happens when the primary damping element degrades in service? Unlike sealed elastomeric mounts that fail without warning and single-path spring isolators that offer zero backup protection, this 6-loop wire rope isolator embeds redundant secondary shock absorption directly into its coil architecture. Fabricated from 3.2mm Stainless Steel 304 wire rope with electropolished finish, it supports 0.5 to 15 kg across an operating temperature span of -40°C to +150°C, making it suitable for installations ranging from cold-storage logistics equipment to high-temperature engine bay peripherals.

Redundant Secondary Shock Insurance

The redundancy principle is straightforward: with 6 independent wire rope loops working in parallel, the failure or fatigue of any single loop does not collapse the isolator's protective capability. The remaining 5 loops continue to dissipate kinetic energy through inter-strand friction damping — the fundamental mechanism that gives wire rope isolators their characteristic hysteretic damping behavior. This means:

• Graceful degradation: damping performance declines gradually rather than catastrophically, giving maintenance teams a predictable service window
• No single point of failure: each loop operates as an independent energy dissipation element, so a localized flaw cannot propagate through the entire damping system
• Inherent fail-safe: even under worst-case partial damage, the steel cable core retains structural connectivity, preventing complete equipment decoupling from its mount base

This architecture is particularly valuable for unattended or remote installations — cellular base station equipment, offshore monitoring systems, trackside signaling hardware — where routine inspection intervals may span months and physical access is restricted.

Instant Visual Inspectability for Rapid Audits

The JGX-0320D-17A is designed for zero-tool, eyes-on inspection. The exposed wire rope geometry means a technician can assess isolator health in under 30 seconds by checking three simple indicators:

1. Coil symmetry — any permanent deformation, uneven loop spacing, or wire strand kinking is immediately visible against the expected helical profile
2. Surface condition — the electropolished Stainless Steel 304 finish reveals corrosion pitting, fretting wear, or strand breakage at a glance, without dye penetrant or magnification
3. Clamp integrity — mounting bar torque witness marks and gap consistency between clamping bars can be visually verified without loosening any fasteners

Compare this to conventional rubber mounts, which require disassembly to inspect for internal delamination, or fluid-filled dampers that need pressure testing to confirm seal integrity. The JGX-0320D-17A eliminates guesswork and dramatically reduces inspection labor — a single technician can audit an entire equipment rack in minutes rather than hours.

Long-Life Reliability Through Material Science

The damping core's Stainless Steel 304 construction provides inherent corrosion resistance without relying on surface coatings that can chip or wear. The electropolished finish further passivates the surface, removing micro-burrs and surface iron contamination introduced during wire drawing. Combined with the natural frequency range of 8–15 Hz and a damping ratio ≥15%, the isolator maintains its dynamic signature through extended service life. Key reliability metrics include:

• Fatigue-rated for over 10⁶ load cycles at full rated displacement
• Damping coefficient drift of less than 5% over rated fatigue life
• No scheduled replacement interval under normal operating conditions — replace on condition, not on calendar
• Storage life exceeding 10 years in controlled indoor environments without performance degradation

Designed for These Environments

• Telecommunications base station cabinets and remote radio units
• Offshore platform monitoring and data acquisition systems
• Railway signaling, axle counter, and hot-box detector enclosures
• Power generation turbine vibration monitoring panels
• Medical imaging equipment transport and deployment cases
• Cold-chain logistics monitoring and refrigeration compressor mounts

WNRLN Quality Commitment

Every JGX-0320D-17A is manufactured under ISO 9001:2015 quality system controls with full material certification traceable to mill heat numbers. Batch testing includes dynamic stiffness measurement, damping ratio verification, and visual/dimensional inspection per in-house acceptance standards. We maintain stock for immediate shipment of evaluation quantities and offer custom loop counts and wire diameters for OEM-specific requirements. Contact our applications team to discuss your project — we typically respond with a technical proposal within one business day.
