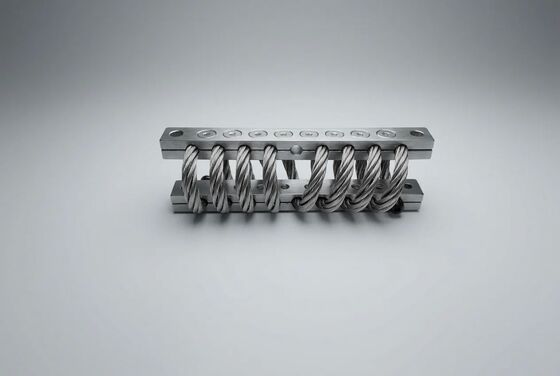

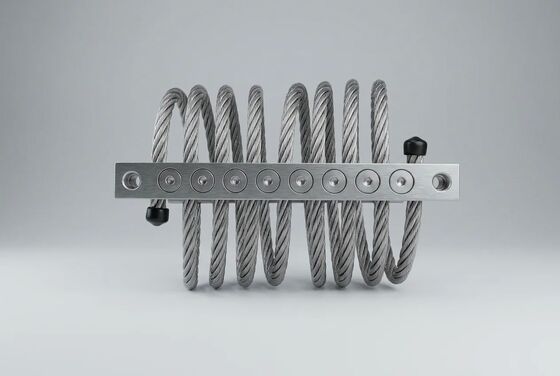

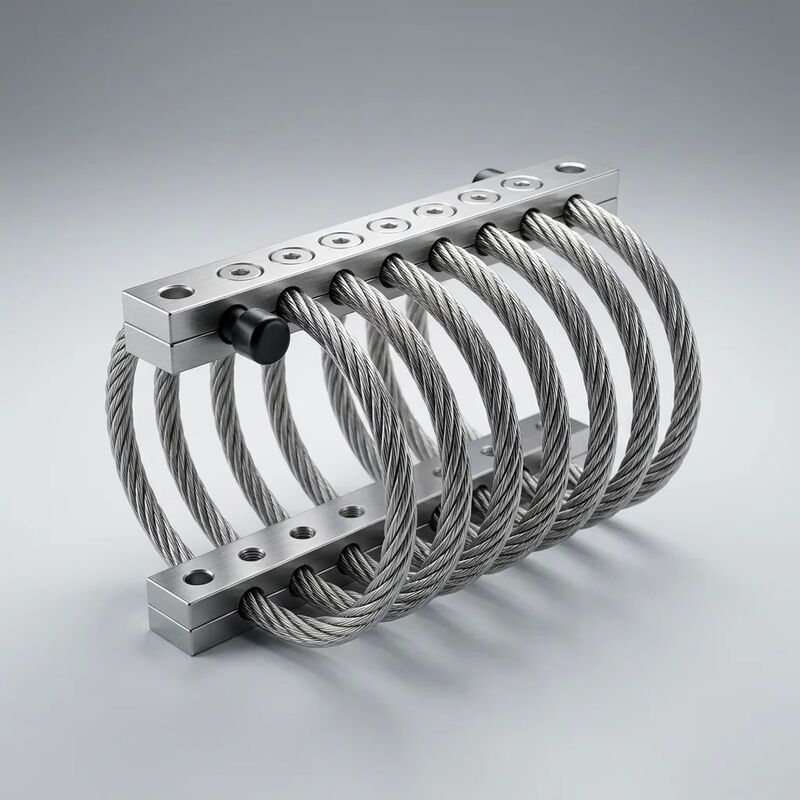

JGX-0648D-56A Stainless Steel Wire Rope Vibration Isolator Inter-Strand Micro-Friction Damping for Seismic Protection

How Inter-Strand Micro-Friction Damping Works

At the core of the JGX-0648D-56A lies a helical wire rope element fabricated from 7*19 high-tensile stainless steel strands. When mechanical vibration energy transmits through the mount, individual wires within each strand slide against adjacent wires at the microscopic level. This Coulomb (dry friction) damping mechanism converts kinetic energy into low-grade thermal energy — without hydraulic fluids, elastomeric compounds, or active electronic control systems.

Three engineering factors define the damping performance envelope:

• Strand Count & Lay Geometry: The 7*19 wire rope construction provides 133 individual wires in total, creating thousands of micro-friction interfaces per helix loop. Each interface activates at a different vibration amplitude threshold, delivering broadband damping coverage from micro-strain to full-rated deflection.
• 6.4mm Wire Diameter Benefit: Compared to smaller 3.2mm or 4.8mm wire rope diameters, the 6.4mm cross-section provides proportionally larger contact area between strands, resulting in higher energy dissipation per cycle and greater static load capacity — critical for medium-duty industrial equipment such as 15–50 kW pump and compressor packages.
• Helical Preload Calibration: The clamping bar geometry applies a precision pre-compression to the rope helix during assembly. This sets the baseline static stiffness and ensures the Coulomb damping threshold engages reliably at excitation amplitudes as low as 0.05 mm — well within the vibration levels generated by electric motor bearing frequencies and pump impeller blade-pass frequencies.
• Wire Surface Engineering: A controlled passivation treatment after wire drawing preserves the natural micro-roughness (Ra 0.4–0.8 µm) of the stainless steel surface, which is essential for maintaining consistent friction coefficients across the full operating temperature range of -40°C to +150°C.

Unlike viscous fluid dampers that suffer from seal degradation and temperature-dependent viscosity shifts, or elastomeric mounts that experience creep and compression set, the all-metal JGX-0648D-56A damping system remains stable across millions of cycles with zero maintenance.
