JGX-0956D-80A Anti-Freezing Wire Rope Vibration Isolator Drop-In Retrofit for Legacy Rubber Mount Laser Systems

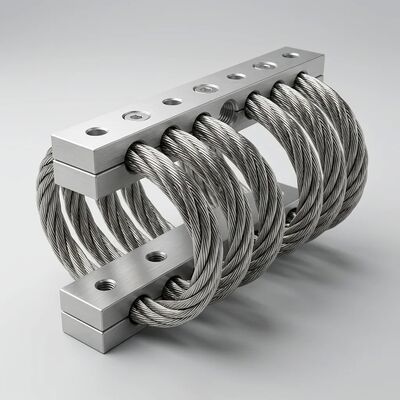

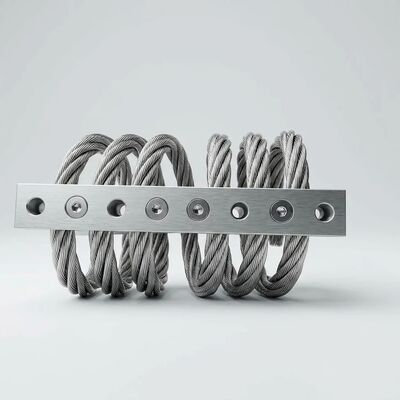

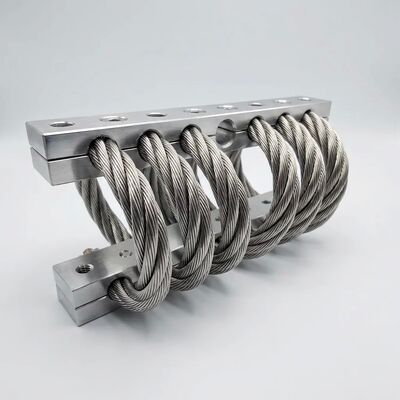

JGX-0956D-80A Anti-Freezing Wire Rope Vibration Isolator

Engineered for precision equipment operating in sub-zero and condensation-prone environments, this all-metal wire rope isolator delivers anti-freezing, non-stick vibration control without the degradation common to rubber mounts. The electropolished stainless steel 304 cable core resists ice adhesion down to -60°C, while the sealed metallic construction eliminates liquid and particulate contamination — making it the preferred choice for laser optics, cryogenic systems, and cleanroom instrumentation.

What Makes This Isolator Different

• Anti-Icing Surface Technology: The electropolished finish on every cable strand creates a microscopically smooth surface that prevents frost nucleation and ice bonding. Unlike conventional mounts that stiffen when frozen, this design maintains full stroke and damping characteristics across repeated freeze-thaw cycles.
• Direct Replacement for Aging Rubber Mounts: Mounting hole spacing and overall envelope match the industry-standard rubber isolator footprint. Facilities can upgrade to all-metal reliability without drilling new anchor points, welding adapter plates, or modifying equipment skids — a true drop-in retrofit that minimizes downtime.
• Contamination-Free by Design: Zero elastomers, zero adhesives, zero lubricants. The all-stainless architecture emits no volatile organic compounds (VOCs), sheds no particles, and withstands aggressive clean-in-place (CIP) chemicals. This is essential for laser beam delivery systems where even microscopic residue can scatter or absorb optical energy.
• Tri-Axial Vibration Attenuation: The 8-coil helical geometry isolates simultaneously in compression, shear, and roll — a capability single-axis rubber mounts cannot match. This protects sensitive payloads from multi-directional vibration inputs common in shipboard, vehicle-mounted, and industrial machinery installations.
• Built-In Corrosion Protection: 304 stainless steel cable combined with 6061-T6 aluminum alloy base plates provides exceptional resistance to salt fog, humidity, and industrial chemical exposure without requiring supplemental coatings or sacrificial anodes.

Technical Specifications

Installation & Maintenance

Installation requires only standard hex tools. The mounting bars accept M8 or M10 bolts — no specialized tooling or training needed. Once installed, zero routine maintenance is required: no re-torquing, no lubrication, no rubber replacement cycles. Recommended inspection interval: 12 months for visual check of cable integrity in aggressive environments.

Typical Deployment Scenarios

• Laser cutting and engraving gantry isolators
• Optical metrology tables and interferometer platforms
• Cold storage compressor and fan isolation mounts
• Pharmaceutical freeze-dryer (lyophilizer) vibration isolation
• Semiconductor wafer inspection equipment
• Food processing machinery in washdown environments

Quality & Compliance

Each unit undergoes 100% load-deflection testing before shipment. Manufacturing is certified to ISO 9001:2015. Material traceability certificates are available upon request for aerospace and medical device customers. Standard packaging includes individually sealed anti-static bags with desiccant, foam-lined cartons, and export-grade outer boxes.

Frequently Asked Questions

Q: Will ice buildup affect damping performance?
A: No. The electropolished surface prevents ice adhesion. Any surface frost that forms during extreme temperature swings will not bond to the cable strands, allowing full stroke movement to resume immediately as equipment warms up.

Q: Can this directly replace my existing rubber mounts?
A: In most cases, yes. The mounting pattern matches standard industrial rubber isolator dimensions. If you provide your existing mount part number or hole spacing, our engineering team can confirm compatibility within one business day.

Q: Is this suitable for cleanroom Class 100 (ISO 5) environments?
A: Yes. The all-metal construction produces zero particulate shedding and is compatible with hydrogen peroxide vapor decontamination cycles commonly used in pharmaceutical and semiconductor cleanrooms.
