Low Frequency Attenuation Wire Rope Shock Mount Vandal Proof Heavy Duty Design JGX-1276D-280B

Breakthrough Low-Frequency Vibration Attenuation for Critical Infrastructure

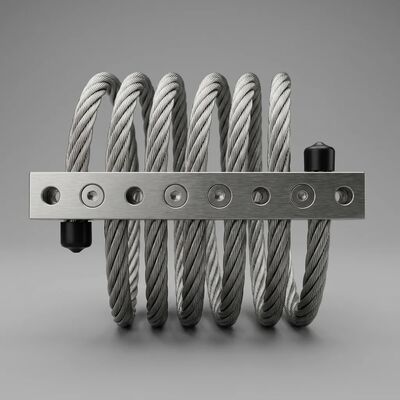

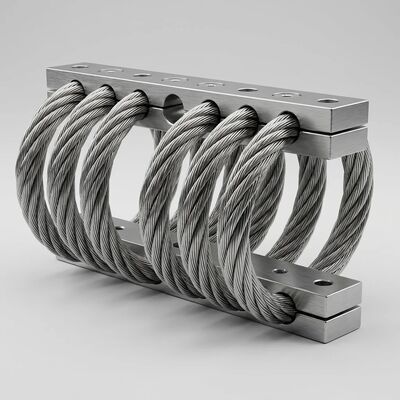

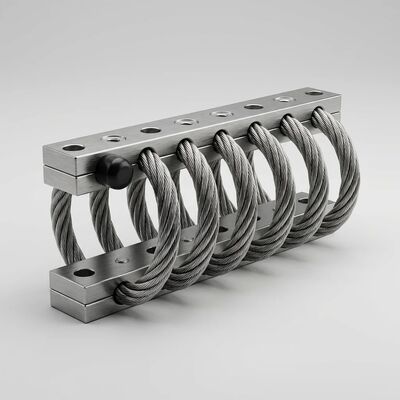

The JGX-1276D-280B wire rope vibration isolator delivers exceptional low-frequency attenuation performance that conventional elastomeric mounts cannot match. As the highest-capacity member of the JGX-1276 series, this 6-loop, 12.7mm diameter stainless steel cable isolator supports up to 280kg static load while providing effective vibration isolation from frequencies as low as 5-8Hz — a significant engineering achievement given that traditional mounts typically amplify sub-10Hz inputs rather than attenuate them.

The unique inter-strand friction mechanism within the 7x19 construction stainless steel cable dissipates low-frequency vibrational energy without requiring the large static deflections that compromise equipment stability in spring-based systems. This enables the JGX-1276D-280B to protect large rotating machinery, structural systems, and sensitive infrastructure equipment from wind-induced oscillation, seismic micro-tremors, and ground-borne traffic vibration.

Technical Specifications

Key Operational Advantages

• Low-Frequency Attenuation Breakthrough: Effectively isolates vibrational energy in the 5-8Hz range — a frequency band where conventional rubber mounts and coil springs typically amplify rather than attenuate. This capability is essential for protecting tall structures from wind-induced oscillation, isolating large rotating machinery from low-RPM unbalance forces, and decoupling sensitive electronics from ground-borne traffic vibration.
• Vandal-Proof Physical Security: Tamper-resistant security fasteners, dense all-metal construction, and fully enclosed architecture resist unauthorized disassembly, cutting, prying, and impact attempts in publicly accessible or remote installations. No exposed rubber or polymer components that can be sliced, burned, or chemically attacked.
• Rapid Oscillation Suppression: C/Cc > 15% damping ratio dissipates resonant energy within 2-3 oscillation cycles, preventing the sustained vibration build-up that leads to structural fatigue, bolted joint loosening, and electronic component failure in critical infrastructure equipment.
• Zero Maintenance Service Life: Unlike hydraulic dampers requiring fluid changes or rubber mounts needing periodic replacement due to creep and aging, the all-metal JGX-1276D-280B maintains consistent mechanical properties throughout a 20+ year operational lifespan with zero maintenance intervention.
• All-Weather Outdoor Durability: Proven resistance to 1000+ hours salt spray exposure, continuous UV radiation, acid rain, ozone, and biological growth ensures reliable performance in coastal, tropical, desert, and arctic environments without protective enclosures.
• Multi-Directional Isolation: Simultaneous vibration attenuation in compression, shear, and roll axes eliminates the need for separate lateral restraints — reducing installation complexity and potential snubber failure points.

Typical Application Scenarios

Mounting Configuration Options

The JGX-1276D-280B supports flexible mounting arrangements to accommodate diverse installation constraints:

• Compression Mount (Vertical): Load applied perpendicular to the cable plane — standard configuration for equipment bases, skid-mounted packages, and generator sets.
• 45° Compression Mount: Angled orientation combining vertical and horizontal isolation components — optimal for reciprocating machinery producing multi-directional dynamic forces.
• Shear/Roll Mount (Horizontal): Load applied parallel to the cable plane — recommended for suspended equipment isolation, pipe support damping, and lateral restraint applications.

Material Configuration Selection

• Stainless Steel Retaining Bars (Standard for Outdoor): Maximum corrosion resistance and physical security. Recommended for coastal, offshore, and unattended outdoor installations where both environmental exposure and vandal resistance are concerns.
• Hard Anodized Aluminum Retaining Bars (Indoor Option): Lighter weight with excellent corrosion protection from the thick anodic oxide layer. Suitable for indoor heavy equipment isolation, HVAC machinery rooms, and controlled environments where weight reduction is prioritized.

Quality Assurance & Testing

Every JGX-1276D-280B isolator undergoes a comprehensive testing protocol before shipment:

• Static load-deflection measurement in compression, 45° compression, and shear/roll orientations
• Damping characterization via logarithmic decrement method across the rated temperature range
• Dimensional inspection of all mounting hole positions, bar parallelism, and cable loop geometry
• Surface treatment quality verification including coating thickness and adhesion testing
• Individual serial number traceability linking each isolator to its specific test certificate

About Xi'an Hoan Microwave Co., Ltd.

Xi'an Hoan Microwave Co., Ltd. has been at the forefront of vibration isolation engineering since 2005. Our ISO 9001:2015 certified facility combines in-house CNC machining, automated cable forming, and precision load-deflection testing to manufacture wire rope isolators that consistently meet demanding performance specifications for critical infrastructure applications worldwide.

With a workforce exceeding 500 professionals, our application engineering team provides comprehensive pre-sale support including load calculation, mounting pattern optimization, and custom configuration design. We export to over 35 countries, serving telecommunications operators, railway authorities, water utilities, power distribution companies, maritime operators, and building services contractors who depend on reliable, maintenance-free vibration isolation.

Contact our infrastructure protection specialists to discuss your low-frequency isolation requirements. We provide complimentary load analysis, frequency response estimation, and custom mounting configuration proposals for your specific equipment protection application.
