Wire Rope Vibration Isolator IIoT Sensor Integration Ready for ATEX Hazardous Zones JGX-1276D-140B

IIoT-Ready Vibration Isolation for Intelligent Industrial Environments

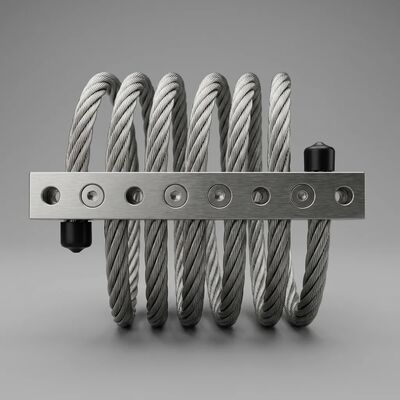

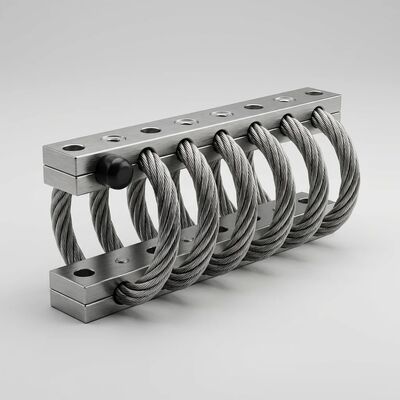

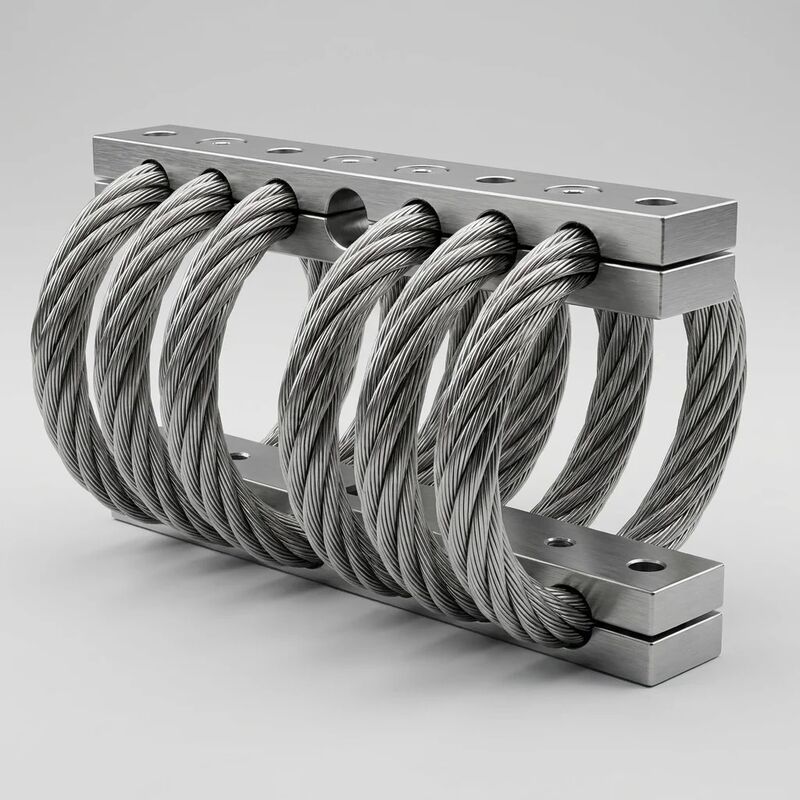

The JGX-1276D-140B wire rope vibration isolator bridges the gap between mechanical vibration control and digital industrial ecosystems. As a specialized member of the proven JGX-1276 series, this 6-loop, 12.7mm diameter stainless steel cable isolator supports up to 140kg static load per mount while featuring integrated interfaces for vibration sensors, accelerometers, and condition monitoring transducers — enabling real-time predictive maintenance without additional retrofitting.

The all-metal construction eliminates organic damping materials entirely, making the JGX-1276D-140B inherently safe for ATEX-designated environments. Stainless steel 304 wire strands threaded through aluminum alloy 6061-T6 retaining bars create a maintenance-free assembly that withstands corrosive atmospheres, temperature extremes, and chemical exposure without performance degradation.

Technical Specifications

Key Operational Advantages

• IIoT Sensor Integration Ready: Pre-engineered mounting points accept standard industrial accelerometers (100mV/g IEPE type), velocity sensors, and 4-20mA loop-powered vibration transmitters — connecting directly to your existing PLC, SCADA, or cloud-based condition monitoring dashboards without custom bracket fabrication.
• ATEX Hazardous Zone Compatibility: All-metal, spark-free construction with no organic components eliminates ignition sources in potentially explosive atmospheres — suitable for upstream oil & gas, refinery operations, chemical processing, and combustible dust environments.
• Rapid Vibration Decay: C/Cc > 15% damping ratio ensures disturbance energy dissipates within 2-3 oscillation cycles, protecting sensitive instrumentation from resonance-induced measurement errors and structural fatigue.
• Maintenance-Free Durability: No rubber to crack, no fluids to leak, no seals to replace. The stainless steel cable maintains consistent mechanical properties throughout a 20+ year service life without adjustment or lubrication.
• Multi-Axis Protection: Simultaneously isolates vibration and shock in compression, shear, and roll directions — eliminating the need for separate lateral restraints or snubbers that complicate installation.
• Environmental Immunity: Unaffected by salt spray, industrial solvents, hydraulic fluids, ozone, UV radiation, and fungal growth. Ideal for offshore platforms, coastal installations, and tropical environments.

Typical Application Scenarios

Mounting Configuration Options

The JGX-1276D-140B supports multiple mounting orientations to accommodate diverse equipment layouts:

• Base Mount (Compression): Standard vertical installation where the load bears directly on the cable loops — most common configuration for machinery skids and equipment bases.
• 45° Compression Mount: Angled installation providing combined vertical and lateral isolation for equipment experiencing multi-directional dynamic forces such as reciprocating compressors.
• Shear/Roll Mount: Horizontal mounting for applications requiring lateral isolation, commonly used for suspended equipment, piping supports, and suspended walkway isolation.

Surface Treatment Selection

• White Anodizing (Standard): Electrochemical surface treatment that hardens the aluminum retaining bar surface while preserving its natural metallic appearance. Suitable for indoor and general industrial environments with moderate corrosion exposure.
• Hard Anodizing (Optional): Advanced anodizing process producing a thicker, darker oxide layer with superior abrasion resistance. Recommended for offshore platforms, coastal installations, and highly corrosive chemical processing environments.

About Xi'an Hoan Microwave Co., Ltd.

Xi'an Hoan Microwave Co., Ltd. is an ISO 9001:2015 certified manufacturer specializing in vibration isolation and energy absorption solutions since 2005. With over 500 employees including a dedicated engineering team of more than 100 technical specialists, we supply precision-engineered wire rope isolators, friction dampers, and shock absorption systems to industrial clients across 35+ countries worldwide.

Our products serve diverse sectors including chemical processing, power generation, industrial automation, oil & gas, maritime transport, railway systems, and precision instrumentation. Every isolator undergoes rigorous load-deflection testing and dimensional inspection before shipment, ensuring consistent performance that meets or exceeds published specifications.

Contact our application engineering team to discuss your specific vibration isolation requirements, request a custom load-deflection curve for your equipment configuration, or obtain a quotation for volume orders with tailored surface treatment options.
