JZP-2.5 High-Damping Vulcanized Rubber Shock Absorber with Cost-Efficient High-Frequency Noise Isolation

JZP-2.5 High-Damping Vulcanized Rubber Shock Absorber – Precision Vibration Control

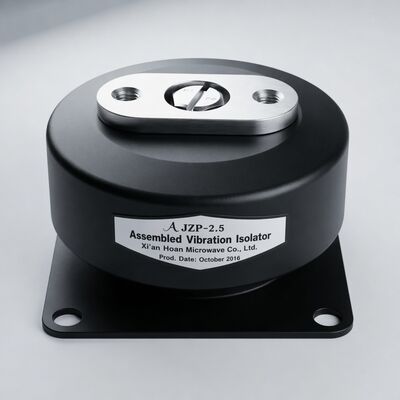

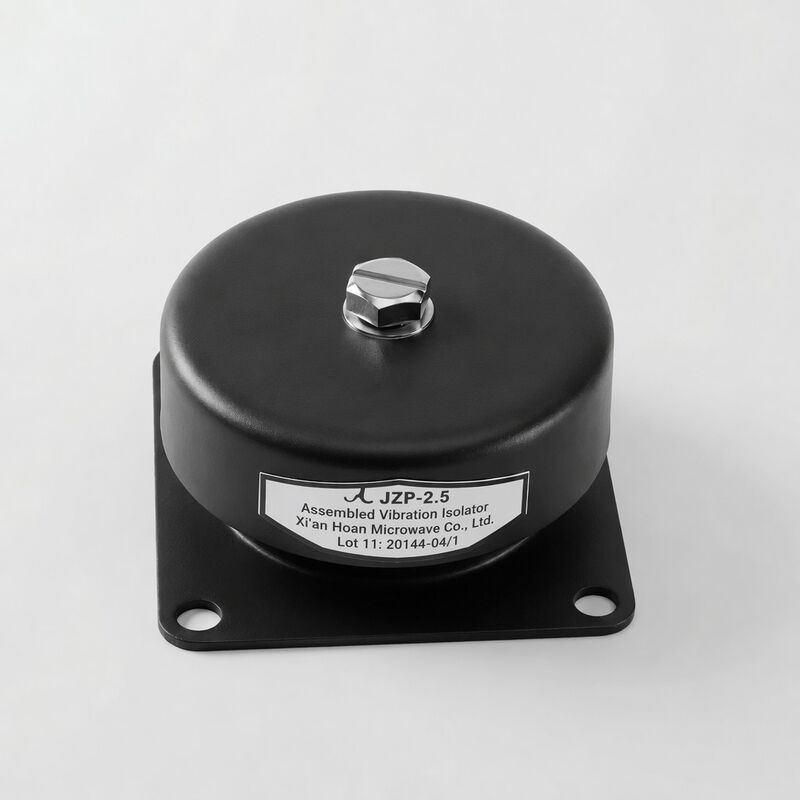

The JZP-2.5 rubber anti-vibration mount is a compact, high-performance isolator developed by Xi'an Hoan Microwave Co., Ltd., specifically engineered for precision equipment demanding reliable low-amplitude vibration attenuation. With a nominal load capacity of 2.5 kg and a resonant frequency of 35±3 Hz, this mount delivers consistent damping across a broad excitation spectrum, making it a trusted choice in laboratory instrumentation, medical imaging systems, and sensitive electronic enclosures.

JZP-2.5 Core Performance Metrics

Physical Dimensions

Why This Mount Stands Out

• Cost-Efficient High-Frequency Isolation: The JZP-2.5 achieves measurable noise reduction in the 500–4000 Hz band at a fraction of the cost of active isolation systems, making it ideal for high-volume OEM integration.
• Premium Vulcanized Rubber Compound: Unlike standard neoprene alternatives, the vulcanized natural rubber formulation maintains consistent stiffness and damping across thousands of load cycles without creep or permanent set.
• Broad Environmental Tolerance: Operates reliably from -45°C to +65°C with inherent resistance to ozone, UV exposure, salt spray, and common industrial chemicals — a critical advantage for outdoor enclosures and unheated equipment rooms.
• Metal-Rubber Bond Integrity: The vulcanization-bonded interface between the rubber body and steel mounting plate achieves a bond strength exceeding 4.0 MPa, eliminating the delamination risk common with adhesive-only assemblies.
• Compact Footprint: At just 60 mm wide, the JZP-2.5 fits into space-constrained equipment chassis where larger isolators cannot be accommodated.

Application Scenarios

These rubber anti-vibration mounts are widely deployed in precision laboratory balances, medical diagnostic equipment, optical measurement systems, small pump and fan assemblies, PCB enclosure isolation, and commercial UAV payload stabilization. As an established aerospace shock mount supplier serving commercial aviation and space-launch ground infrastructure, Xi'an Hoan also provides these rubber buffers / bumpers for baggage handling conveyors, aircraft galley equipment mounts, and airport terminal HVAC isolation. The integrated male-female threaded rubber isolation studs (M6 thread) enable secure single-bolt installation without additional bracketry.

Quality Assurance & Traceability

Each JZP-2.5 batch undergoes dynamic stiffness verification, damping coefficient measurement, and bond integrity testing per internal quality protocols. Xi'an Hoan Microwave Co., Ltd. maintains ISO 9001:2015 certified production with full material lot traceability. Custom durometer grades, non-standard thread sizes, and alternative elastomer formulations (silicone, EPDM, NBR) are available for special applications — contact our engineering team with your requirements.

Request a technical datasheet, vibration test report, or complimentary evaluation sample today.
