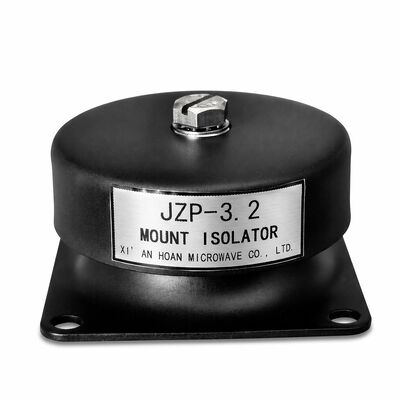

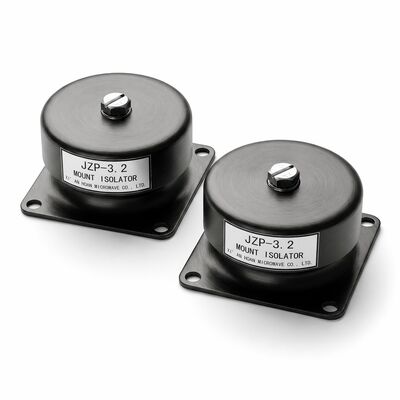

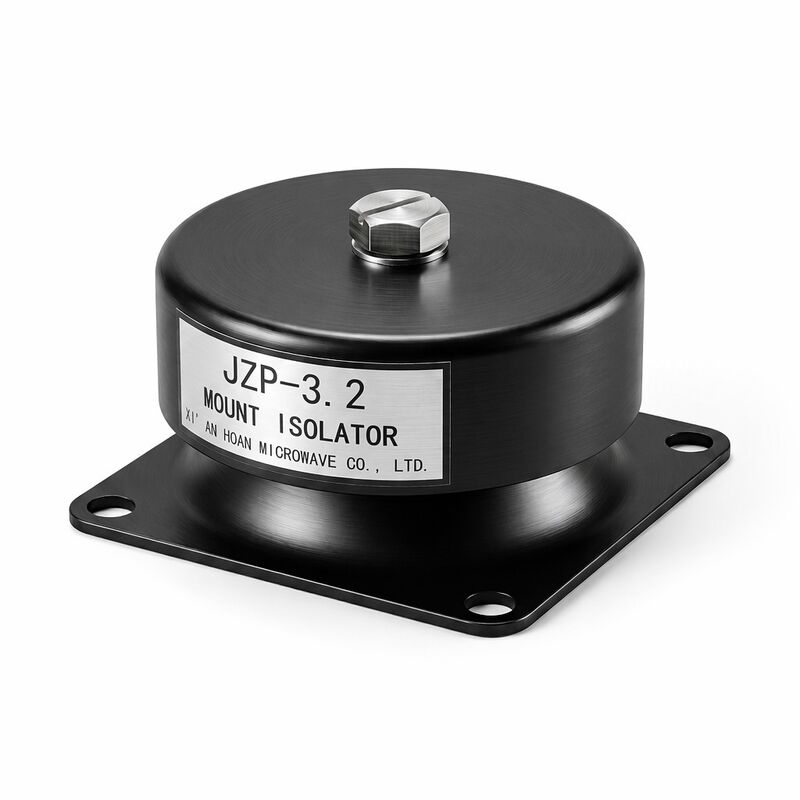

JZP-3.2 Rubber Shock Absorber Electrically Insulated Multi-Directional Vibration Isolation with Standard M6 Mount

JZP-3.2 Electrically Insulated Multi-Directional Rubber Shock Absorber

The JZP-3.2 laboratory equipment anti-vibration mount is engineered by Xi'an Hoan Microwave Co., Ltd. to deliver precision vibration control with integrated electrical insulation — a critical requirement for sensitive electronic instrumentation where stray current paths must be eliminated. As a high efficiency vibration reduction mount belonging to the JZP series, this model achieves a verified 90% isolation efficiency across its operating bandwidth, providing dependable protection for精密 instruments, electronic enclosures, and industrial equipment subjected to multi-directional vibration.

Core Performance Data

Physical Dimensions

Three Differentiating Engineering Features

• Built-In Electrical Insulation: The vulcanized rubber compound provides inherent dielectric isolation between the mounted equipment and the supporting structure, preventing ground-loop currents and protecting sensitive electronics — a feature absent in all-metal isolator designs. Dielectric strength exceeds 10 kV/mm across the elastomer section.
• Multi-Directional Equal Stiffness: Unlike conventional isolators that only perform optimally in a single axis, the JZP-3.2 isolator geometry is engineered to deliver nearly identical spring rates across vertical and lateral axes — this symmetry means a single mount handles vibration arriving from any orientation without requiring separate vertical and horizontal isolators.
• Comprehensive Standard Typologies: The JZP series follows a standardized dimensional envelope (D58*H29mm) with M6 threaded mounting, enabling interchangeability across the entire product range from JZP-2.5 to JZP-15. This standard typology approach simplifies BOM management and facilitates drop-in replacement during equipment upgrades.

Application Scenarios

When engineers buy industrial vibration mounts online, the JZP-3.2 is frequently specified for precision laboratory balances, spectrometer isolation platforms, medical diagnostic analyzer chassis, PCB enclosure damping in automation controllers, and small pump/compressor assemblies. As a laboratory equipment anti-vibration mount, it is particularly valued in research environments where both vibration attenuation and electrical isolation are mandatory — such as electron microscope support tables, laser interferometry benches, and sensitive RF measurement setups. Its high efficiency vibration reduction mount design maintains consistent damping from -55°C cold-start conditions to +120°C sustained operation, covering cryogenic lab environments through to industrial machinery in tropical installations.

Manufacturing & Quality

Xi'an Hoan Microwave Co., Ltd. is the original manufacturer — not a trading intermediary — with full in-house production capabilities covering elastomer compounding, metal insert fabrication, vulcanization bonding, and final QC inspection under one roof. ISO 9001:2015 certified processes include per-batch isolation efficiency verification, dimensional tolerance inspection, and 100% visual QC. Standard lead time is 2–5 working days for evaluation samples and 7–20 working days for volume production orders, with faster turnaround available for stocked inventory. Customization services — non-standard thread pitches, alternative elastomer grades including silicone and EPDM, private-label packaging — are supported with dedicated engineering consultation. Volume pricing discounts apply to orders exceeding 500 pieces. Every JZP-3.2 mount carries a 1-year manufacturer warranty backed by direct factory support and full material lot traceability from incoming rubber batch through to finished product shipment.

Contact us to request technical datasheets, vibration test reports, or complimentary evaluation samples — we ship worldwide with competitive freight options.
