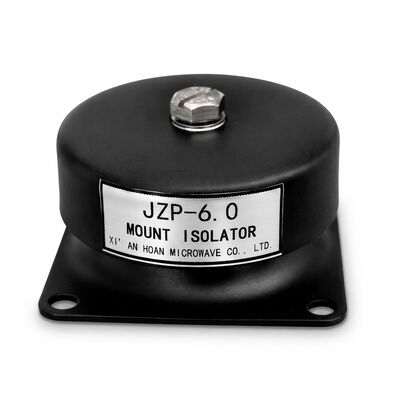

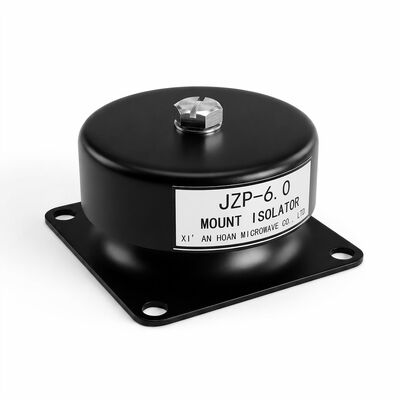

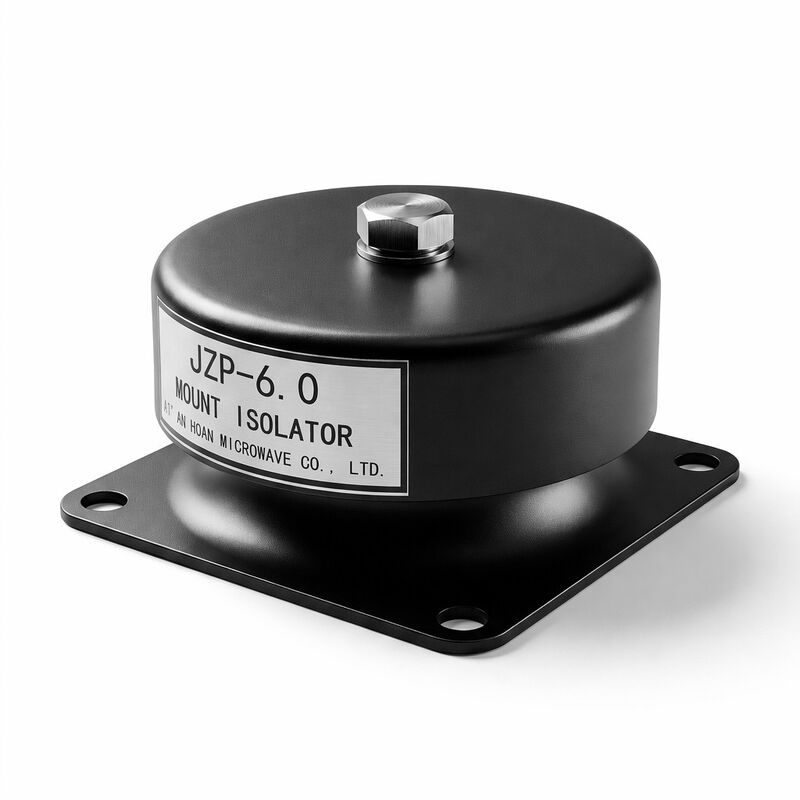

JZP-6.0 Wide Temperature Range Rubber Shock Absorber Micro-Vibration Filtering Damper for Precision Equipment

JZP-6.0 Wide Temperature Range Rubber Shock Absorber — Precision Isolation Engineered for Extremes

The JZP-6.0 is purpose-built for applications where vibration isolation must perform consistently across a Wide Temperature Range spanning -40°C to +120°C. Standard rubber mounts experience significant stiffening at sub-zero temperatures and excessive softening in high-heat environments, leading to unpredictable isolation behavior. The JZP-6.0 overcomes this through a thermally stabilized NR/SBR compound formulation that maintains Shore A 55±5 hardness across the full thermal operating window, ensuring predictable damping characteristics regardless of ambient conditions.

Thermal Stability Engineering

The key to the JZP-6.0's thermal resilience lies in its crosslink density optimization and antioxidant package. A semi-EV (efficient vulcanization) cure system produces monosulfidic and disulfidic crosslinks with superior thermal stability compared to conventional polysulfidic networks. Combined with a synergistic antioxidant blend of hindered phenols and phosphite stabilizers, the compound resists oxidative degradation at elevated temperatures while maintaining rubber elasticity at cold extremes. Glass transition temperature is suppressed below -50°C through selective plasticizer incorporation, preventing low-temperature brittleness.

Micro-Vibration Filtering for Sensors

Sensitive instrumentation—including laser interferometers, electron microscopes, coordinate measuring machines, and MEMS-based sensor arrays—requires isolation from ambient vibrations with displacement amplitudes as small as 0.01 mm. The JZP-6.0 delivers Micro-Vibration Filtering for Sensors through its precisely tuned dynamic stiffness profile. At frequencies above 30 Hz, transmissibility drops below 0.1, effectively attenuating high-frequency micro-vibrations generated by nearby motors, pumps, and foot traffic. The mount acts as a mechanical low-pass filter, passing only the static gravitational load while blocking vibration energy across the frequency spectrum relevant to precision measurement.

Dimensional & Mechanical Specifications

Temperature-Dependent Performance Matrix

Micro-Vibration Isolation Performance

Sensor & Instrument Integration Guidelines

• For optical tables and laser platforms: 4-point mount configuration with load evenly distributed within ±5% across all mounts
• For CMM and inspection stations: isolate the entire measurement cell including workpiece and fixture mass combined
• For MEMS sensor testing enclosures: mount positioned between vibration source (floor/building structure) and sensor mounting plate
• Minimum clearance around mount: 15 mm radial for unrestricted lateral deflection
• Cable management: ensure sensor cables include service loops that do not create parallel vibration transmission paths bypassing the mount

Environmental Testing & Validation

Each JZP-6.0 design variant undergoes: 1,000-hour thermal aging at 120°C with periodic dynamic stiffness verification; cold soak testing at -40°C for 72 hours followed by impact resilience measurement; cyclic thermal shock from -40°C to +120°C (100 cycles, 30-minute dwell); and salt spray exposure per ISO 9227 for 96 hours on the zinc-plated base. Batch certificates documenting these test results are maintained in the quality management system and available for customer audit.

Industries & Applications

The JZP-6.0 is deployed in semiconductor lithography support frames, optical inspection station isolation, laboratory centrifuge damping, medical imaging equipment bases, precision CNC machine tool leveling, and environmental test chamber vibration control. Any application where temperature fluctuations coincide with demanding vibration isolation requirements—from cold storage logistics equipment to foundry-adjacent metrology labs—benefits from the JZP-6.0's thermally invariant performance envelope.
