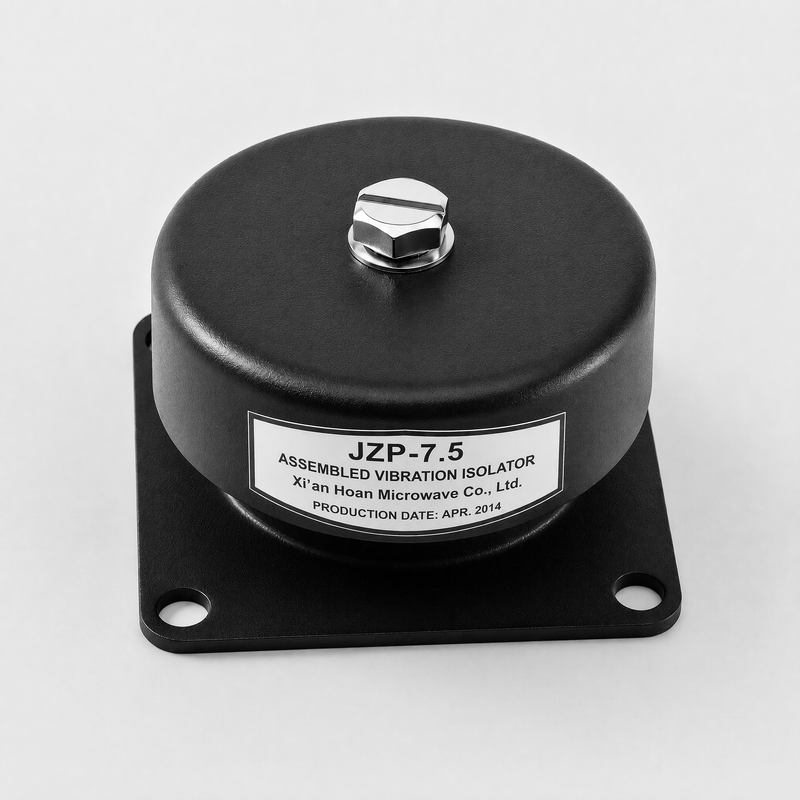

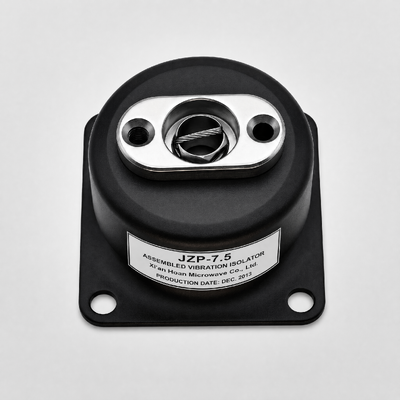

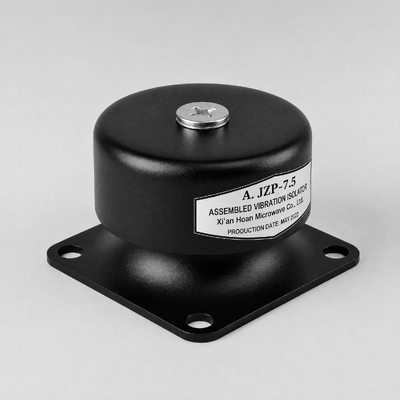

JZP-7.5 Hygienic Smooth Design Rubber Shock Absorber with Easy Washdown Progressive Cushioning

Hygienic Smooth Design: Engineered for Cleanability

Equipment in food and beverage processing, pharmaceutical manufacturing, and cleanroom environments faces stringent sanitation requirements. Standard rubber mounts with surface texture, parting lines, and crevices become harborage points for bacteria, product residue, and cleaning chemical entrapment.

The JZP-7.5 addresses these challenges through a hygienic smooth surface design achieved via precision mold finishing and optimized rubber compound flow characteristics. The result is a mount with:

Progressive Cushioning: Adaptive Vibration Control

Unlike linear-rate isolators that provide uniform stiffness regardless of displacement, the JZP-7.5 employs progressive cushioning technology—a non-linear stiffness characteristic where damping resistance increases as deflection grows.

This progressive characteristic is achieved through the rubber element's geometry—the cross-section profile is computationally optimized so that increasing compression engages progressively more material volume, naturally producing the non-linear rate without additional mechanical components.

Technical Data

Material Composition & Compliance

Industry Applications

Installation Guidelines

For optimal progressive cushioning performance, mounts should be installed so that the static load compresses the rubber element to approximately 50-65% of its available deflection range. This places the operating point in the progressive zone where small vibrations encounter soft damping while overload conditions trigger the protective firm-response region.

Mounts should be arranged symmetrically around the equipment center of gravity. For equipment with uneven weight distribution, load-rated mounts of different capacities within the same JZP series can be specified for individual mounting points to achieve uniform deflection across all isolators.

Frequently Asked Questions
