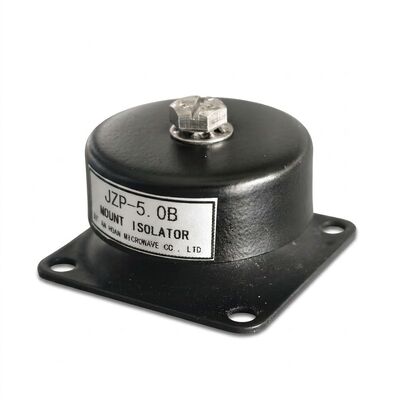

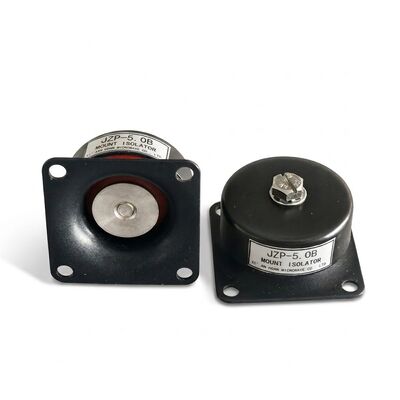

JZP-5.0B Rubber Shock Absorber High Stress Relaxation Resistance Thermal-Conductive Core Integration Isolator Mount

Name: JZP-5.0B Rubber Shock Absorber High Stress Relaxation Resistance Thermal-Conductive Core Integration Isolator Mount
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-5.0B
Price: Negotiable USD
Availability: InStock

Brand Name:	Hoan
Model Number:	JZP-5.0B
MOQ:	10 Pieces
Payment Terms:	L/C,D/A,D/P,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Product Type:

Rubber Shock Absorber

Nominal Load:

5.0 Kg

Shape:

Cylindrical

Material:

Rubber

Vibration Frequency Range:

10Hz To 100Hz

Resonance Frequency:

40 Hz

Isolation Frequency:

5Hz

Compression Ratio:

1.2:1

Working Temperature:

-55 ~ +120 C

Highlight:

High Stress Relaxation Resistance

Thermal-Conductive Core Integration

Long-Term Damping Stability Mount

Product Description

JZP-5.0B Rubber Shock Absorber - High Stress Relaxation Resistance with Thermal-Conductive Core

The JZP-5.0B is an assembled vibration isolator from the JZP-B series of Xi'an Hoan Microwave Co., Ltd. A precision alloy steel spring carries the static load while a vulcanized rubber cushion converts vibration energy into heat and dissipates it. The mount controls resonance and structure-borne noise for compressors, pumps, machine tools and building services equipment.

Dimensional parameters (mm)

Model	D	H	h	A	B	d1	MG	R
JZP-B (JZP-5.0B outline)	46	30	18	40	50	5.5	M6	5

Technical data (JZP-5.0B)

Nominal load	Static displacement	Operating temperature	Resonant frequency	Damping ratio	Impact test	Expiration date (years)
5.0 kg	≤0.3 mm	-45 ~ +65 °C	41.5 ±5 Hz	≥0.13	100 g, 12 cycles	8 / 5

Key characteristics

Low stress relaxation keeps clamping force and preload stable over time.
Thermal-conductive core lowers operating temperature of the damping element.
Internal damping limits resonance peaks across the working frequency band.
Low creep and low aging tendency under sustained compression.
Compact footprint suits machine bases, pump skids and cabinets.
Tolerates oils, seawater, ozone and UV exposure.

Typical applications

Continuous-duty compressors, pumps, generators, HVAC units and precision machinery where sustained preload and heat buildup are concerns.
