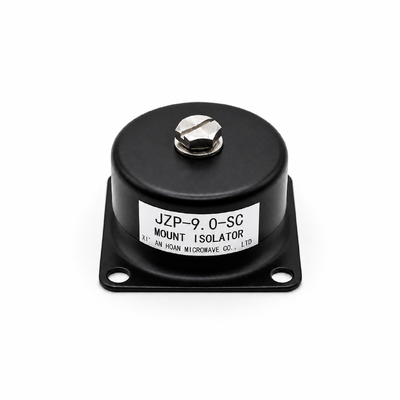

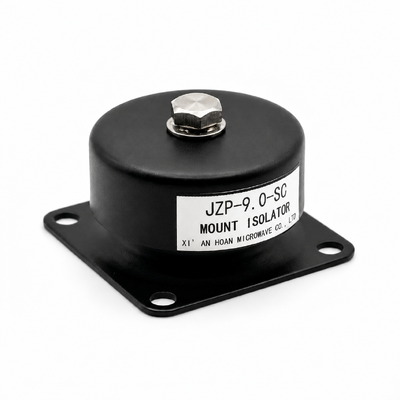

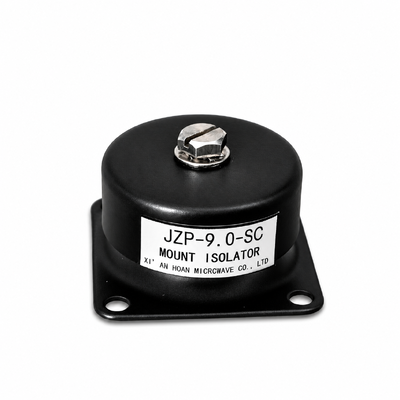

JZP-9.0-SC 9kg Rubber Shock Absorber Zero Mechanical Play High Repeatability Mounting for Transit Shock Protection

JZP-9.0-SC Rubber Shock Absorber: Repeatable Positioning and Transit Shock Protection

Stacking for other loads

The 60 mm body and 50 × 60 mm bolt pattern are shared across the load range, so capacity can be changed without redesigning the baseplate. Placing two units under one foot doubles capacity at the same natural frequency; placing two in line vertically doubles deflection and lowers the natural frequency for very low excitation sources. Both arrangements use standard machined adapter plates, so no new tooling is required.

Where it is used

• Metrology and optical benches that are re-zeroed between measurement runs
• RF and microwave equipment racks where phase stability depends on position
• Instrumented transit crates and shipping frames for assembled precision hardware
• Control cabinets, embedded electronics and analyser housings
• Pick-and-place gantries and inspection stages on upper floors of production buildings

Ordering and packing

Quote the model JZP-9.0-SC, the quantity per machine, and the mass each unit will support. Stock orders leave in 3 working days; production orders take 7 to 20 days depending on the quantity in the queue. Each unit is individually inspected for resonant frequency on a calibrated shaker table and carries a serial number traceable to its compound batch and cure record.
