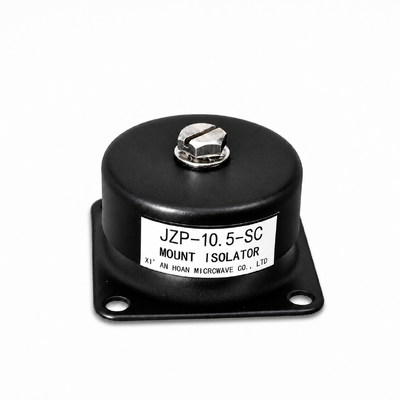

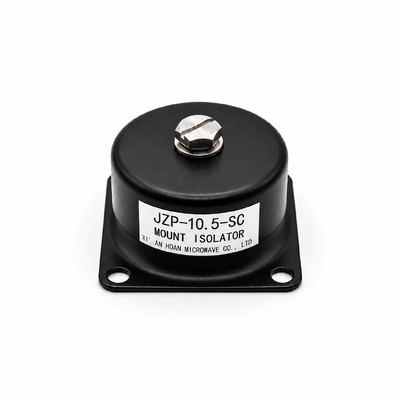

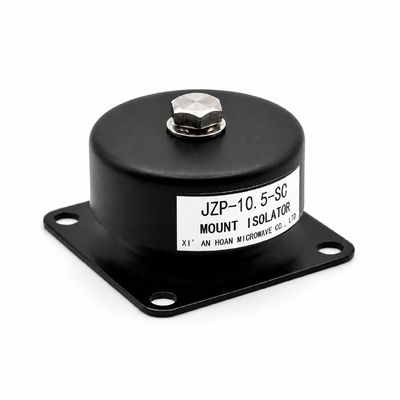

JZP-10.5-SC Rubber Shock Absorber Dynamic Damping Energy Absorption 10.5kg Load M5 Mount

Name: JZP-10.5-SC Rubber Shock Absorber Dynamic Damping Energy Absorption 10.5kg Load M5 Mount
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-10.5-SC
Price: Negotiable USD
Availability: InStock

Brand Name:	Hoan
Model Number:	JZP-10.5-SC
MOQ:	4 Pieces
Payment Terms:	T/T,L/C,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO 9001:2015

Mounting Thread:

Mounting Hole:

Diameter 5.5mm

Body Material:

Rubber With Bonded Metal Inserts

Damping Type:

Friction Damping, Multi-axis

Service Life:

8 Years

Application:

Precision Instruments, Electronic Cabinets, Lab Equipment, Transport Shock Protection

Highlight:

Dynamic Damping Noise Reduction Absorber

High Energy Absorption Rubber Isolator

Multi-Axis Shear Compression Load Bearing

Product Description

JZP-10.5-SC Rubber Shock Absorber: Dynamic Damping, High-Energy Absorption and Lower Structure-Borne Noise

Quick answer: the JZP-10.5-SC is a passive friction damping rubber shock absorber rated at 10.5 kg per mounting point. It accepts vertical, horizontal and torsional loads at the same time, converts impact energy into heat inside the element, and reduces structure-borne sound on precision machinery. Outer diameter is 60 mm, height 36 mm, thread M5, resonant frequency 41.5 ± 5 Hz, damping ratio 0.13 or above.

Why Dynamic Damping Cuts Noise

Sound radiated by a machine frame is usually structure-borne before it becomes airborne. Energy that reaches the frame is what makes panels vibrate and talk. Because the damping element removes a share of that energy at the interface, the frame receives a smaller excitation and radiates less sound. Damping also shortens the decay time of transient events such as a door closing on a cabinet or a tool engaging, which is perceived as a cleaner, quieter installation rather than a loud one.

Multi-Axis Load Capacity

Real installations rarely load a mount in one direction only. Machine torque produces shear, off-centre mass produces a moment, and handling or transport adds shock. The bonded rubber-to-metal construction of the JZP-10.5-SC works in compression and shear simultaneously, so a single part replaces the combination of a vertical pad plus separate lateral restraints. The joint is designed to keep its bond under combined loading, which is the detail that decides whether a mount survives a truck journey intact.

Performance Data

JZP-10.5-SC rated values
Nominal load per mounting point	10.5 kg
Static deflection under nominal load	≤0.3 mm
Resonant frequency	41.5 ± 5 Hz
Damping ratio	≥0.13
Working temperature	-45 °C to +65 °C
Impact test	100 G, 12 cycles
Design service life	8 years
Element construction	Rubber body bonded to metal inserts, internal friction interface
Approximate unit weight	0.2 kg
Quality system	ISO 9001:2015

Where It Is Used

Precision measuring and inspection instruments that must stay optically or mechanically stable
Electronic control cabinets, power supplies and communication units mounted on vibrating floors
Laboratory benches, optical tables and analytical equipment in shared buildings
Fans, blowers, small compressors and pumps where tonal noise is a complaint
Transport crates and skids that must protect equipment from road shock
