JZP-10.5-SC Rubber Shock Absorber Oil Aging Weather Resistant Custom Shore A Hardness for Harsh Sites

Name: JZP-10.5-SC Rubber Shock Absorber Oil Aging Weather Resistant Custom Shore A Hardness for Harsh Sites
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-10.5-SC
Price: Negotiable USD
Availability: InStock

Brand Name:	Hoan
Model Number:	JZP-10.5-SC
MOQ:	4 Pieces
Payment Terms:	T/T,L/C,D/P,D/A

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO 9001:2015

Mounting Hole:

Diameter 5.5mm

Outer Diameter:

60mm

Height:

36mm

Body Material:

Rubber With Bonded Metal Inserts

Service Life:

8 Years

Application:

Outdoor Cabinets, Marine And Coastal Sites, Workshop Machinery, Chemical Plants

Highlight:

Oil Aging Weather Resistant Absorber

Custom Shore A Hardness Isolator

M5 Thread Configuration Vibration Mount

Product Description

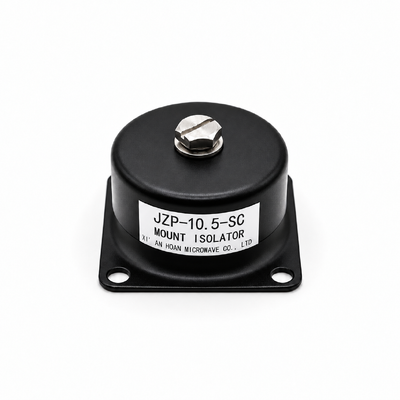

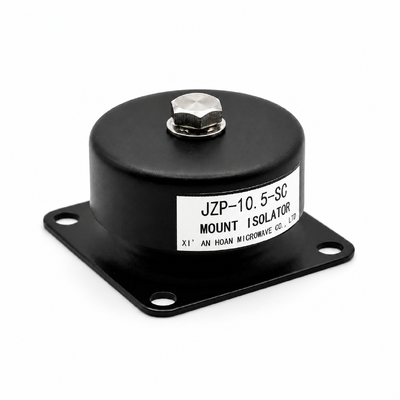

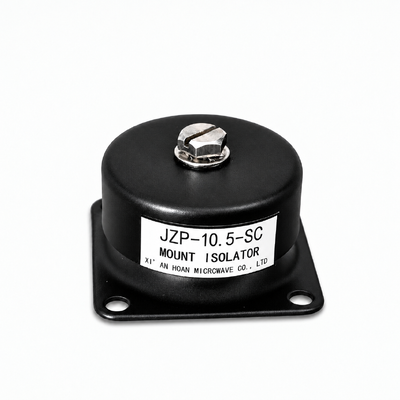

JZP-10.5-SC Rubber Shock Absorber for Oil, Ageing and Weather Exposure with Custom Shore A Hardness

Quick answer: the JZP-10.5-SC is a rubber shock absorber built for contaminated and exposed locations. The compound resists mineral oil, grease and cutting fluid, does not harden under ozone, ultraviolet light or salt air, and keeps its rated 10.5 kg load and 41.5 ± 5 Hz resonant frequency for an 8 year design life. Hardness from 40 to 70 Shore A and M5, M6 or M8 threads are available to order.

Designed for Locations That Attack Rubber

Isolation failures are often chemical rather than mechanical. Oil mist softens a compound, sunlight and ozone crack its surface, salt air attacks the bond line, and heat finishes the job. Once the surface degrades, stiffness drifts and the mount either bottoms out or stops isolating, while the machine keeps running and nobody notices until noise or misalignment appears.

The JZP-10.5-SC is formulated against that sequence. Its rubber body is specified for contact with mineral oil, grease and cutting fluid splash, and for continuous exposure to ozone, ultraviolet radiation, seawater and common chemical agents. Because the material neither creeps nor hardens in service, the rated load and the resonant frequency measured at delivery remain valid at the end of the 8 year design life, which keeps maintenance planning predictable on outdoor and coastal sites.

Load Path and Mechanical Strength

The element carries compression and shear together, so vertical weight, lateral torque reaction and handling shock all pass through one bonded rubber-to-metal joint. That joint is the load-critical feature of the part: it holds the rubber body to the insert under combined stress, which is why the mount can replace a stack of separate pads and restraints in machinery that moves while it works.

Specification Summary

Item	Value for JZP-10.5-SC
Rated load at each fixing point	10.5 kg
Sag at rated load	≤0.3 mm
Natural frequency of the isolated system	41.5 ± 5 Hz
Damping ratio	≥0.13
Temperature envelope	-45 °C up to +65 °C
Shock qualification	100 G peak, 12 repetitions
Expected service period	8 years
Element type	Rubber body bonded to metal insert, friction damped
Unit mass	About 0.2 kg
Quality standard	ISO 9001:2015
Diameter / overall height	60 mm / 36 mm
Body height / base thickness	21.7 mm / 3.4 mm
Fixing centres A / base width B	50 mm ±0.2 / 60 mm
Thread / clearance hole	M5 / Φ5.5 mm
Corner radius / slot width	5 mm / 28 mm

Typical Installations

Outdoor and coastal electrical cabinets exposed to salt air and direct sunlight
Workshop machinery working under oil mist, coolant spray or grease carry-over
Chemical, water treatment and process plants where solvent splash is routine
Agricultural, construction and yard equipment stored in the open
offshore fixtures that see humidity, spray and temperature swing
