Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JZP-10.5-SC1
JZP-SC1 Series

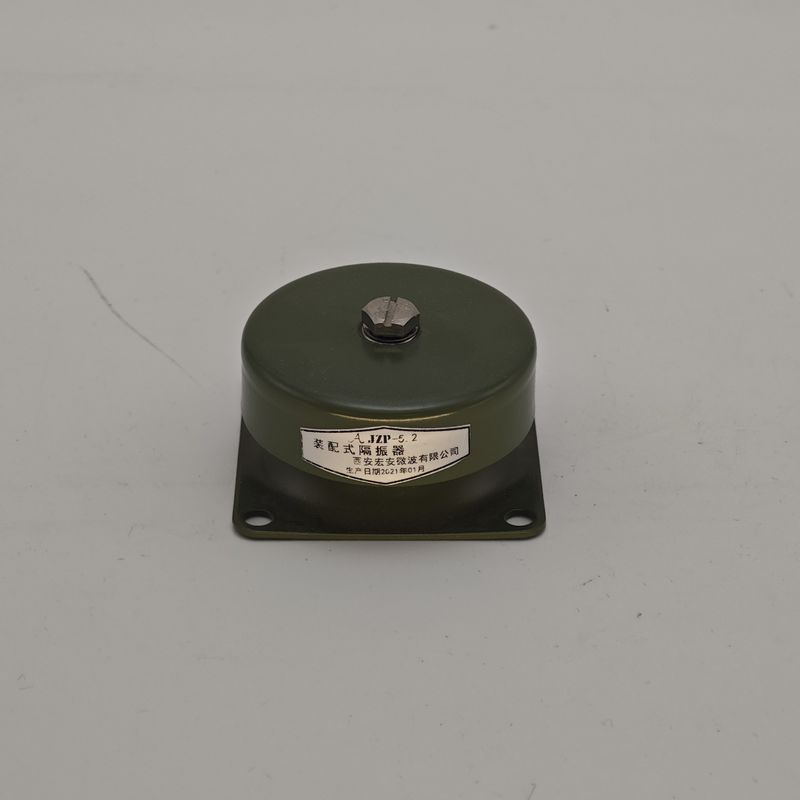

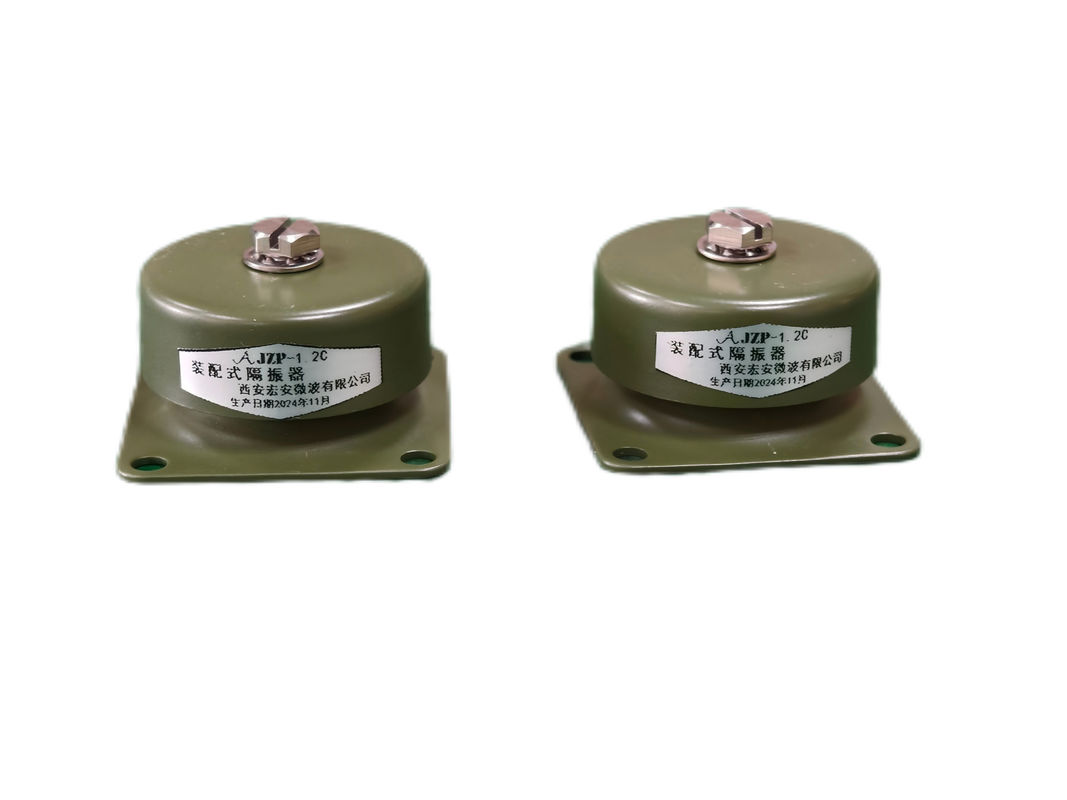

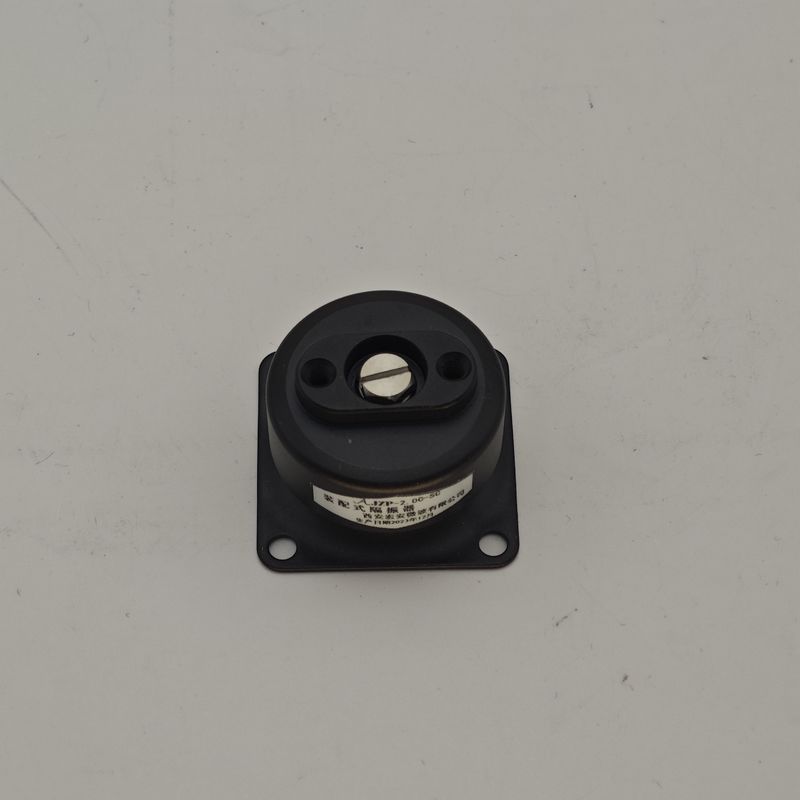

In the environment of modern engineering and equipment operation, vibration isolation technology is of vital significance to ensure the stability, reliability and accuracy of equipment. The JZP series friction damping vibration isolator launched by Xi'an Hongan Microwave Co., Ltd. stands out in the field of vibration isolation with its unique design concept and excellent performance.
The core operating principle of this isolator is based on frictional damping. When external vibrations are transmitted to the isolator, a special friction structure inside the isolator comes into play. During vibration, friction is generated between friction parts that are in contact with each other, and this friction is in the opposite direction of vibration, thus effectively dissipating vibration energy. This energy dissipation mechanism causes the vibration waves to be significantly attenuated as they pass through the isolator, thus achieving the purpose of vibration isolation. Frictional isolation offers unique advantages over traditional vibration isolation methods, especially when dealing with complex vibration frequencies and vibrations of varying amplitudes.
The JZP series of vibration isolators are able to effectively isolate vibrations over a wide frequency range. Whether it is low-frequency vibration, such as the shaking of buildings, the slow oscillation of large equipment, or high-frequency vibration, such as small vibrations generated by the high-speed operation of motors, it can play a good vibration isolation effect. This makes it suitable for many types of equipment, from large industrial machinery to sophisticated electronic instruments.
In addition to the conventional vibration isolation function, the vibration isolator also has a certain shock resistance. When the equipment is subjected to a sudden external impact, the vibration isolator can effectively buffer the impact energy through the internal friction structure and protect the equipment from damage. This is an important protection measure for equipment that is in transit or in a working environment that is susceptible to accidental shocks.
Product dimensions
| Series |
D (mm) |
H±1 (mm) |
h (mm) |
A±0.2 (mm) |
B (mm) |
d | d2 | R |
b (mm) |
h1 (mm) |
| JZP-SC1 | 60 | 36 | 21.7 | 50 | 60 | M5 | Φ5.5 | 5 | 28 | 3.4 |
Product parameters
| Model |
Nominal Load (KG) |
Deflection |
Working Temperature (℃) |
Resonant Frequency (Hz) |
Damping ratio | Impact test |
Expiration date (year) |
| JZP-3.2-SC1 | 3.2 | ≤0.3 | -45～+65 | 41.5±5 | ≥0.13 | 100G12次 | 8 |
| JZP-4.2-SC1 | 4.2 | ||||||
| JZP-5.2-SC1 | 5.2 | ||||||
| JZP-6.0-SC1 | 6.0 | ||||||
| JZP-7.0-SC1 | 7.0 | ||||||
| JZP-7.5-SC1 | 7.5 | ||||||
| JZP-9.0-SC1 | 9.0 | ||||||
| JZP-10.5-SC1 | 10.5 | ||||||
| JZP-13.5-SC1 | 13.5 | ||||||
| JZP-15-SC1 | 15 |
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
