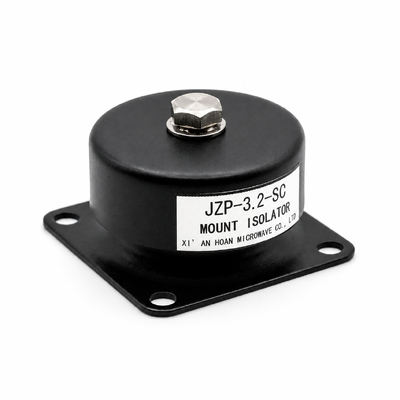

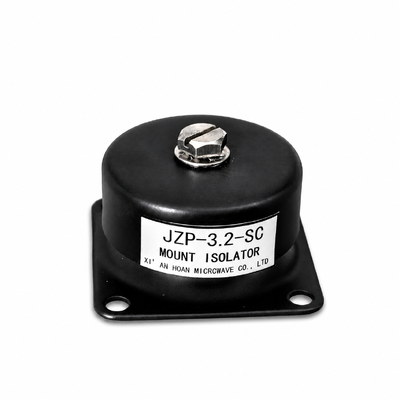

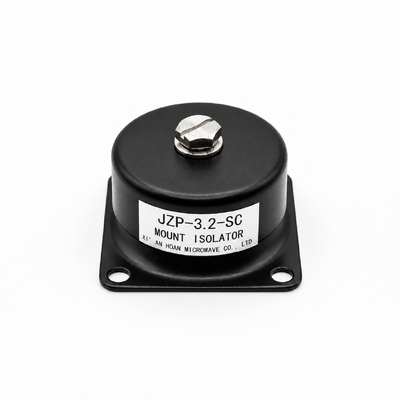

JZP-3.2-SC Rubber Shock Absorber High Damping Noise Reduction with Standard M5 Mount

JZP-3.2-SC Rubber Shock Absorber – High Damping Noise Reduction

Quick Answer

The JZP-3.2-SC is a friction damping rubber shock absorber rated for a 3.2 kg nominal load. It pairs an M5 threaded base with a compact 36 mm body, reaches a damping ratio of at least 0.13 and holds a vibration isolation efficiency up to 90%. Its standard footprint fits common equipment frames, and every unit is released under ISO 9001:2015 quality control.

Product Overview

Vibration rarely arrives as a single clean frequency. A compressor hums, a cabinet panel rattles, a bench takes a knock when a nearby door closes. The JZP-3.2-SC is built for that mixed reality. Inside the mount, a vulcanised rubber core is bonded to a metal housing, so relative motion between the two materials turns kinetic energy into a small amount of heat. That friction path damps motion instead of storing it, which keeps a mounted unit steady through start-up, shut-down and short impacts.

Technical Parameters

Dimensions

Application Scenarios

• Precision measuring and analytical instruments
• Electronic control cabinets and embedded boards
• Laboratory and inspection benches
• Communication equipment racks
• Small pumps, fans and blowers
