JZP-3.0C Rubber Shock Absorber Auxetic Metamaterial Structure for Zero Lateral Bulging Control

JZP-3.0C Rubber Shock Absorber – Quick Answer

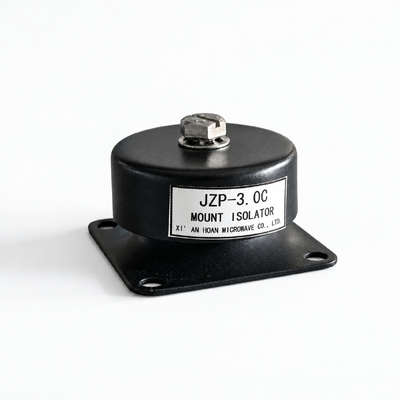

The JZP-3.0C is a prefabricated rubber-to-metal vibration isolator from the JZP-C series, rated at a 3.0 kg nominal load. Its bonded elastomer works with M8 mounting holes and an M10 thread to hold machines, building frames, bridges and rail track steady while vibration and structure-borne noise are reduced before they reach the support. Rated isolation efficiency reaches 90% across a 10 Hz to 100 Hz band, and this build adds an auxetic cell design that stops the body from bulging sideways under load.

Product Overview

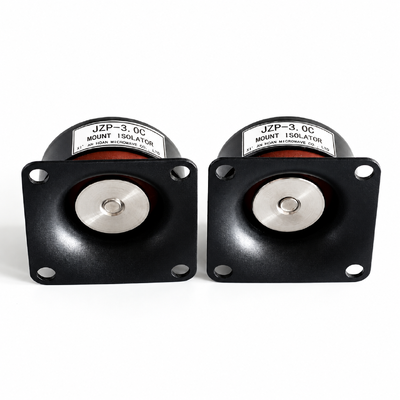

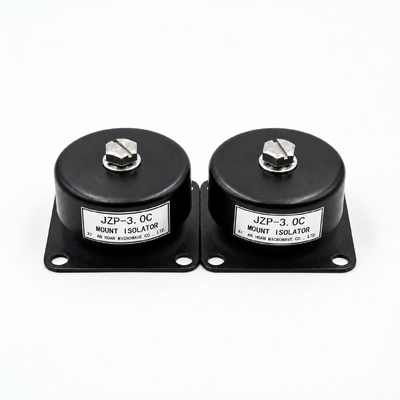

An isolator sits between a vibrating item and the structure that carries it. The JZP-3.0C does that by combining a cured rubber elastomer with steel plates: the rubber carries and damps the load, the plates spread it into the base, and the whole unit is bolted down through the M8 holes using the M10 thread. The body is cylindrical, 58 mm wide and finished in black, with a diameter envelope of roughly 0.25 to 2 inches.

It is supplied by Xi'an Hoan Mirowave Co. Ltd. The JZP-C family shares one mounting concept across a range of load ratings, so a design that works at 3.0 kg can be matched to lighter or heavier points by moving up or down the series without changing the installation method.

Technical Parameters

Design Characteristics

• Elastomer that resists creep and keeps its properties over time
• High internal damping, so movement settles quickly
• Operation across a wide temperature range
• A broad choice of fittings to suit different fixings
• Fast, economical prototyping for evaluation builds
• Rugged construction with a long service life
• Shock and vibration handled together in one unit
• Tolerant of chemical agents, seawater, ozone and UV exposure
