JZP-13.5-SC Rubber Shock Absorber Plug-and-Play Install Ready 100% Batch Verified Fully Inspected Isolation Mount

JZP-13.5-SC Rubber Shock Absorber: Standardised 60 mm Mount with Inspected Batch Quality

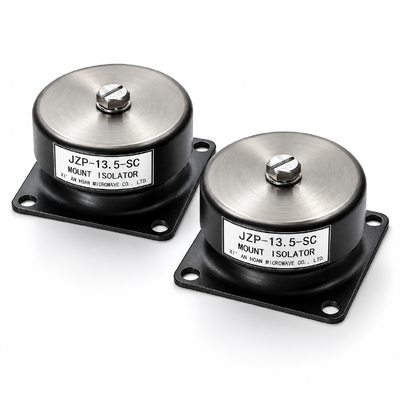

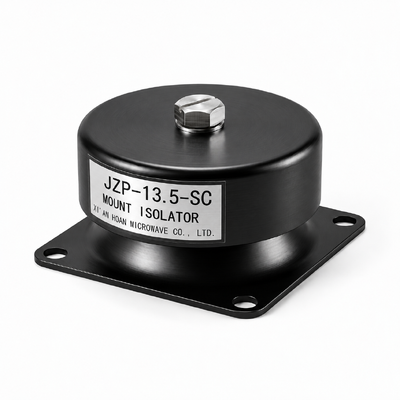

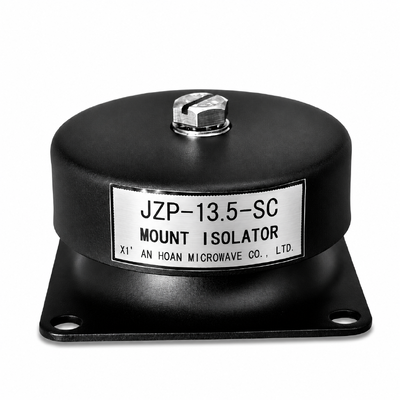

Direct answer: The JZP-13.5-SC is a 60 mm rubber-to-metal isolator rated at 13.5 kg per mounting point, built to one fixed dimensional and compound standard so that every delivery batch behaves like the previous one. Mounting is an M5 thread with a Φ5.5 mm anchor hole, and resonance sits at 41.5±5 Hz with damping of 0.13 or higher.

What makes an isolator easy to fit on an existing bracket?

Three fixed features decide it: the body diameter, the thread size and the anchor pattern. This model keeps all three identical to the rest of the range, at 60 mm body, M5 thread and Φ5.5 mm anchor hole, so a replacement needs no adaptor plate, no reaming and no new hole layout. Maintenance stores can hold one part number for several machines, and a technician needs no model-specific instruction to fit it.

How is batch-to-batch consistency actually held?

Formulation, mixing sequence, cure temperature and cure time are fixed for the series and are not re-tuned between runs. Because the compound does not drift, rated load, deflection and resonant frequency stay inside the same window from lot to lot. For a plant building the same machine over several months, that means the vibration signature of unit 200 matches unit 1 without re-qualification.

Performance data

Where this model is used

Series production of industrial machinery and electronic equipment, electrical cabinets and control panels, precision instruments and analytical equipment, microwave communication units, and plant-wide replacement programmes where interchangeable spares shorten downtime.
