400g Waterproof SMA Bandpass Filter 698-2700MHz Quadruple Frequency Diplexer Combiner

400g Waterproof SMA Bandpass Filter 698-2700MHz Quadruple Frequency Diplexer Combiner

  • 400g Waterproof SMA Bandpass Filter 698-2700MHz Quadruple Frequency Diplexer Combiner
400g Waterproof SMA Bandpass Filter 698-2700MHz Quadruple Frequency Diplexer Combiner
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Passband Frequency: Band1:2025MHz~2120MHz&2655MHz~2690MHz Band2:2200MHz~2300MHz&2500MHz~2535MHz Insertion Loss: ≤1dB
VSWR: ≤1.5 Isolation: ≥80dB
Impedance: 50Ω Interface Type: SMA-K
Operating Temperature: -55℃~85℃ External Dimensions: 130×105×28(mm)
Weight: 400g
Highlight:

698-2700MHz SMA Bandpass Filter

,

400g SMA Bandpass Filter

,

Quadruple Frequency Combiner

Summary

JT-DUP-130105-SMA-1 quadrupler is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.

Mainly used for multi-channel transmission and reception signal processing in military or civilian communication systems.



Characteristic

Small size, light weight, high reliability, and strong environmental adaptability.

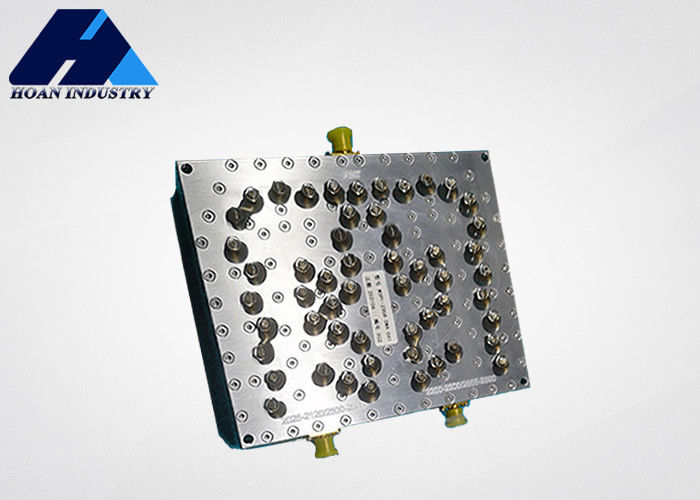

400g Waterproof SMA Bandpass Filter 698-2700MHz Quadruple Frequency Diplexer Combiner 0

Main parameter

passband frequency

band1:2025MHz~2120MHz&2500MHz~2535MHz

band2:2200MHz~2300MHz&2655MHz~2690MHz

insertion loss ≤1dB
isolation ≥80dB
VSWR ≤1.5
interface type SMA-K
impedance 50Ω
operating temperature -55℃~85℃
external dimensions 130×105×28(mm)
weight 400g
