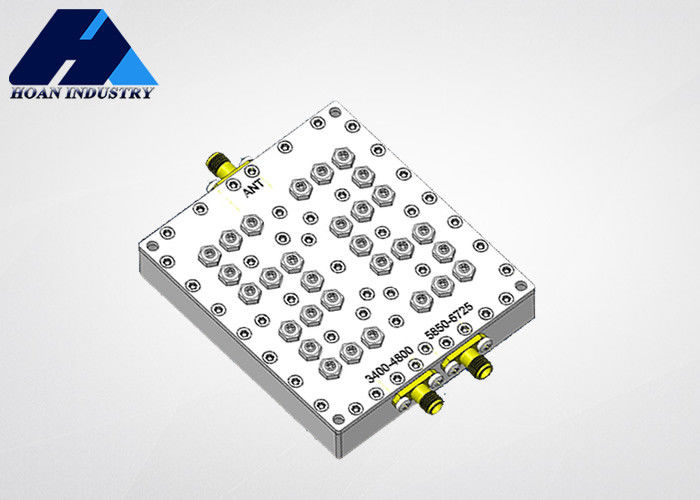

5850-6725MHz Quadruple Frequency Diplexer Combiner JT-DUP4100/6287-SMA

5850-6725MHz Quadruple Frequency Diplexer Combiner JT-DUP4100/6287-SMA

  • 5850-6725MHz Quadruple Frequency Diplexer Combiner JT-DUP4100/6287-SMA
5850-6725MHz Quadruple Frequency Diplexer Combiner JT-DUP4100/6287-SMA
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Passband Frequency: Band1:3400MHz~4800MHz Band2:5850MHz~6725MHz Insertion Loss: ≤2dB
VSWR: ≤1.5 Impedance: 50Ω
Isolation: ≥70dB Interface Type: SMA-K
Operating Temperature: -55℃~85℃ External Dimensions: 80×75×20(mm)
Weight: 160g
Highlight:

SMA diplexer combiner

,

Quadruple frequency diplexer combiner

,

JT-DUP4100/6287-SMA diplexer combiner

Summary

JT-DUP4100/6287-SMA duplexer is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.

Mainly used for transmitting and receiving signal processing in military or civilian communication systems.



Characteristic

Small size, light weight, high reliability, and strong environmental adaptability.

5850-6725MHz Quadruple Frequency Diplexer Combiner JT-DUP4100/6287-SMA 0

Main parameter

passband frequency

band1:3400MHz~4800MHz

band2:5850MHz~6725MHz

insertion loss ≤2dB
isolation ≥70dB
VSWR ≤1.5
impedance 50Ω
interface type SMA-K
operating temperature -55℃~85℃
external dimensions 80×75×20(mm)
weight 160g
