Broadband 1525-1559MHz SMA Bandpass Filter 50W JT-DUP1542/1642-SMA duplexer

Broadband 1525-1559MHz SMA Bandpass Filter 50W JT-DUP1542/1642-SMA duplexer

  • Broadband 1525-1559MHz SMA Bandpass Filter 50W JT-DUP1542/1642-SMA duplexer
Broadband 1525-1559MHz SMA Bandpass Filter 50W JT-DUP1542/1642-SMA duplexer
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Passband Frequency: Band1:1525MHz~1559MHz Band2:1610MHz~1675MHz Insertion Loss: ≤2.dB
VSWR: ≤1.5 Impedance: 50Ω
Isolation: ≥80dB Interface Type: SMA-K
Operating Temperature: -55℃~85℃ External Dimensions: 88×82×31(mm)
Weight: 260g
Highlight:

JT-DUP1542/1642-SMA Duplexer

,

Broadband SMA Bandpass Filter

,

1525-1559MHz SMA Bandpass Filter

Summary

JT-DUP1542/1642-SMA duplexer is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.

Mainly used for transmitting and receiving signal processing in civil communication systems.



Characteristic

Small size, light weight, high reliability, and strong environmental adaptability.

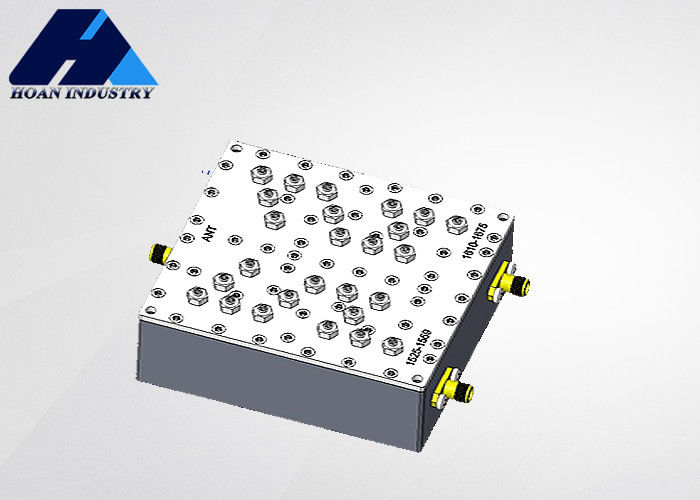

Broadband 1525-1559MHz SMA Bandpass Filter 50W JT-DUP1542/1642-SMA duplexer 0

Main parameter

passband frequency

band1:1525MHz~1559MHz

band2:1610MHz~1675MHz

insertion loss ≤2dB
isolation ≥80dB
VSWR ≤1.5
impedance 50Ω
interface type SMA-K
operating temperature -55℃~85℃
external dimensions 88×82×31(mm)
weight 260g
