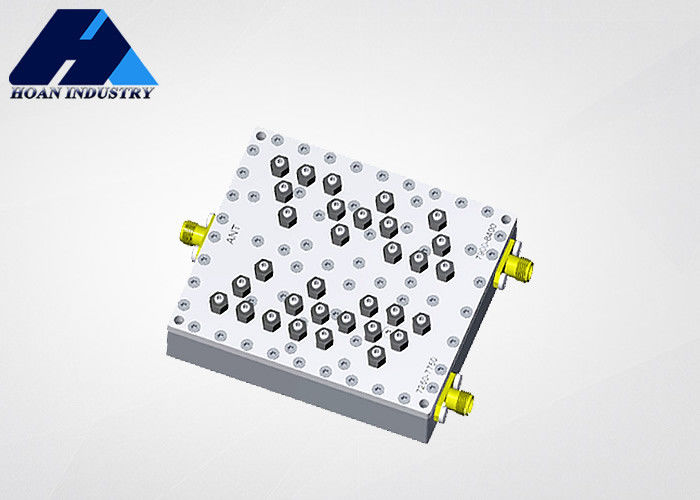

Waterproof Four Port Combiner 7250-8460MHz Quadruple Frequency Diplexer Combiner JT-DUP7500/8150-SMA Duplex

Waterproof Four Port Combiner 7250-8460MHz Quadruple Frequency Diplexer Combiner JT-DUP7500/8150-SMA Duplex

  • Waterproof Four Port Combiner 7250-8460MHz Quadruple Frequency Diplexer Combiner JT-DUP7500/8150-SMA Duplex
Waterproof Four Port Combiner 7250-8460MHz Quadruple Frequency Diplexer Combiner JT-DUP7500/8150-SMA Duplex
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Passband Frequency: Band1:7250MHz~7750MHz Band2:7900MHz~8400MHz Insertion Loss: ≤1.5
VSWR: ≤1.5 Impedance: 50Ω
Isolation: ≥70dB Interface Type: SMA-K
Operating Temperature: -55℃~85℃ External Dimensions: 90×75×15(mm)
Weight: 145g
Highlight:

7250-8460MHz Quadruple frequency diplexer combiner

,

JT-DUP7500/8150-SMA duplex

,

waterproof four port combiner

Summary

JT-DUP7500/8150-SMA duplexer is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.

Mainly used for transmitting and receiving signal processing in military or civilian communication systems.



Characteristic

Small size, light weight, high reliability, and strong environmental adaptability.

Waterproof Four Port Combiner 7250-8460MHz Quadruple Frequency Diplexer Combiner JT-DUP7500/8150-SMA Duplex 0

Main parameter

passband frequency

band1:7250MHz~7750MHz

band2:7900MHz~8400MHz

insertion loss ≤1.5
isolation ≥70dB
VSWR ≤1.5
impedance 50Ω
interface type SMA-K
operating temperature -55℃~85℃
external dimensions 90×75×15(mm)
weight 145g
