2200-2300 MHz Waterproof Quadruple Frequency Diplexer Combiner JT-DUP2072/2250-SMA

2200-2300 MHz Waterproof Quadruple Frequency Diplexer Combiner JT-DUP2072/2250-SMA

  • 2200-2300 MHz Waterproof Quadruple Frequency Diplexer Combiner JT-DUP2072/2250-SMA
2200-2300 MHz Waterproof Quadruple Frequency Diplexer Combiner JT-DUP2072/2250-SMA
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Passband Frequency: Band1:2025MHz~2120MHz Band2:2200MHz~2300MHz Insertion Loss: ≤1dB
VSWR: ≤1.5 Impedance: 50Ω
Isolation: ≥80dB Interface Type: SMA-K
Operating Temperature: -55℃~85℃ External Dimensions: 88×82×28(mm)
Weight: 230g
Highlight:

Quadruple Frequency Diplexer Combiner

,

2200-2300 MHz Diplexer Combiner

,

Waterproof Diplexer Combiner

Summary

JT-DUP2072/2250-SMA duplexer is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.



Mainly used for transmitting and receiving signal processing in civil communication systems.



Characteristic

Small size, light weight, high reliability, and strong environmental adaptability.

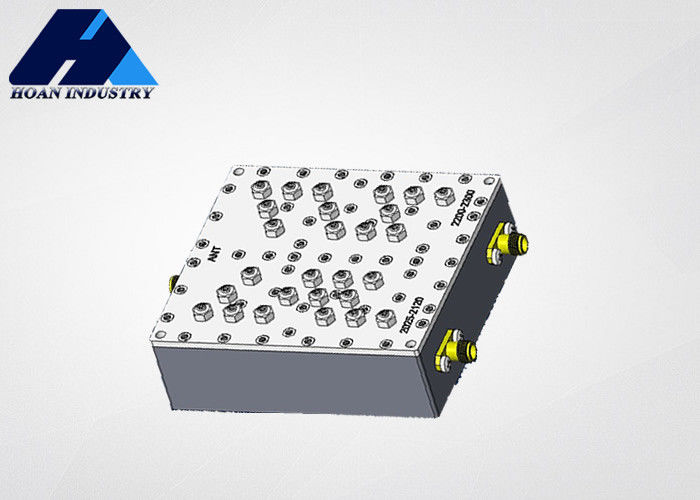

2200-2300 MHz Waterproof Quadruple Frequency Diplexer Combiner JT-DUP2072/2250-SMA 0

Main parameter

passband frequency

band1:2025MHz~2120MHz

band2:2200MHz~2300MHz

insertion loss ≤1dB
isolation ≥80dB
VSWR ≤1.5
impedance 50Ω
interface type SMA-K
operating temperature -55℃~85℃
external dimensions 88×82×28(mm)
weight 230g
