2655-2690 MHz Quadruple Frequency Diplexer Combiner JT-DUP-2517/2672-SMA SMA Bandpass Filter

2655-2690 MHz Quadruple Frequency Diplexer Combiner JT-DUP-2517/2672-SMA SMA Bandpass Filter

  • 2655-2690 MHz Quadruple Frequency Diplexer Combiner JT-DUP-2517/2672-SMA SMA Bandpass Filter
2655-2690 MHz Quadruple Frequency Diplexer Combiner JT-DUP-2517/2672-SMA SMA Bandpass Filter
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Passband Frequency: Band1:2500MHz~2535MHz Band2:2655MHz~2690MHz Insertion Loss: ≤1dB
VSWR: ≤1.5 Impedance: 50Ω
Isolation: ≥80dB Interface Type: SMA-K
Operating Temperature: -55℃~85℃ External Dimensions: 78×82×26(mm)
Weight: 195g
Highlight:

Quadruple Frequency Diplexer Combiner

,

2655-2690 MHz Diplexer Combiner

,

JT-DUP-2517/2672-SMA SMA Bandpass Filter

Summary

JT-DUP-2517/2672-SMA duplexer is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.

Mainly used for transmitting and receiving signal processing in civil communication systems.



Characteristic

Small size, light weight, high reliability, and strong environmental adaptability.

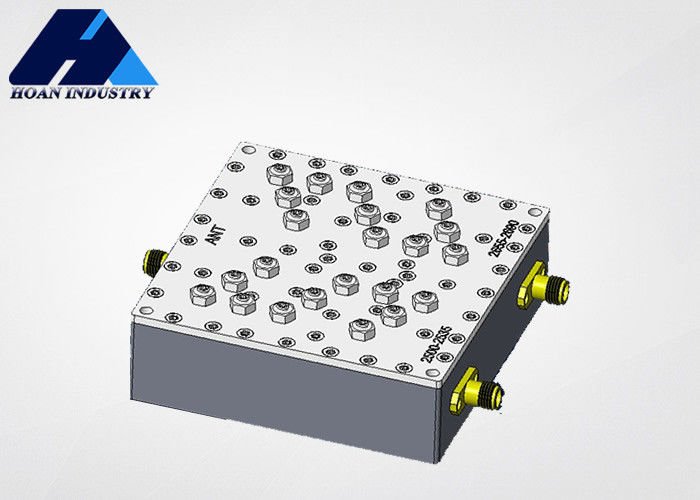

2655-2690 MHz Quadruple Frequency Diplexer Combiner JT-DUP-2517/2672-SMA SMA Bandpass Filter 0

Main parameter

passband frequency

band1:2500MHz~2535MHz

band2:2655MHz~2690MHz

insertion loss ≤1dB
isolation ≥80dB
VSWR ≤1.5
impedance 50Ω
interface type SMA-K
operating temperature -55℃~85℃
external dimensions 78×82×26(mm)
weight 195g
