Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JZP-5.2-SC1
JZP-SC1 Series

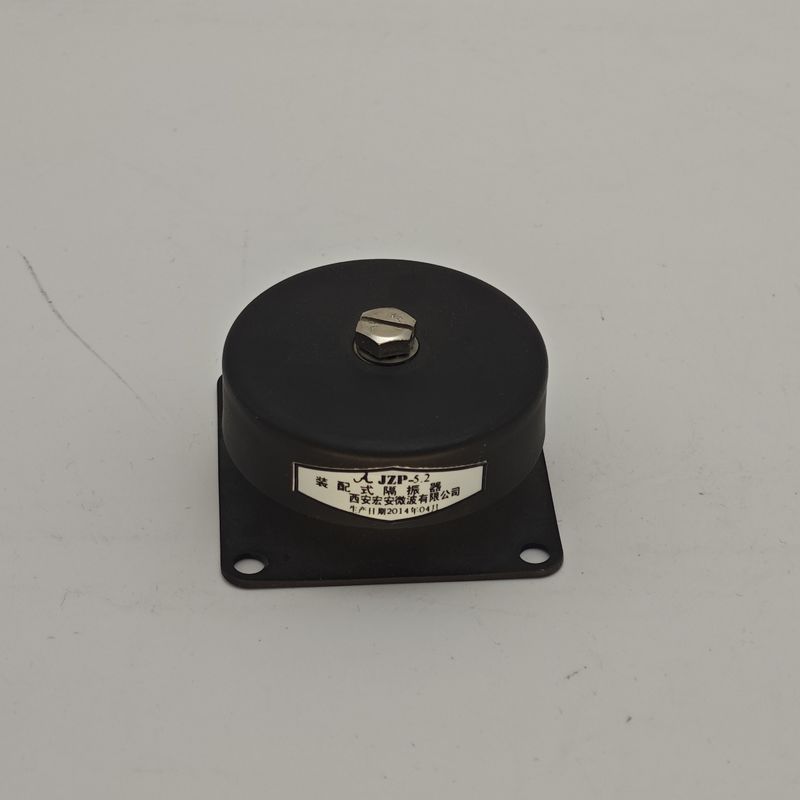

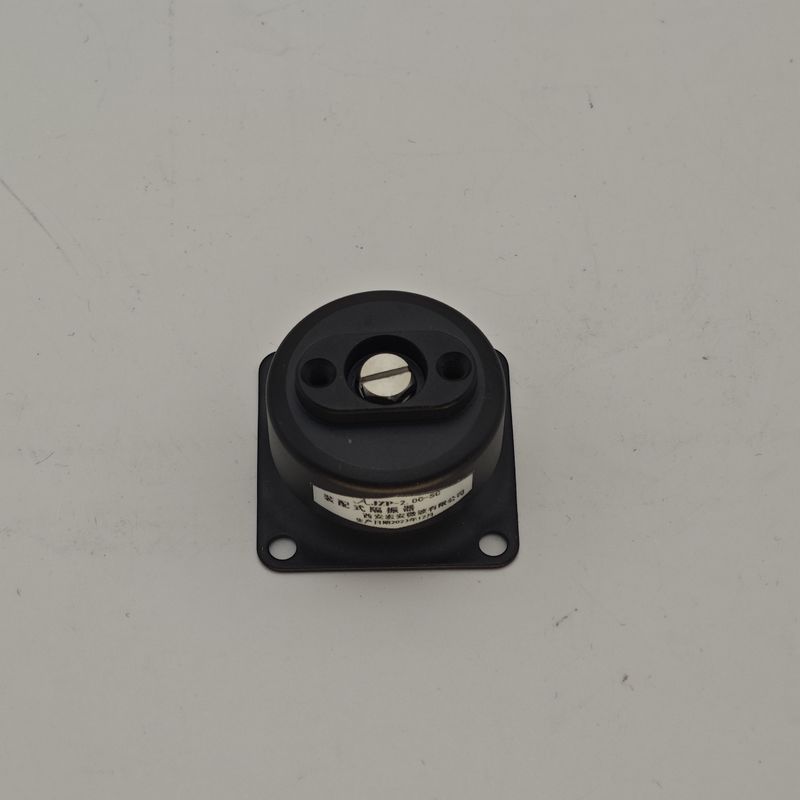

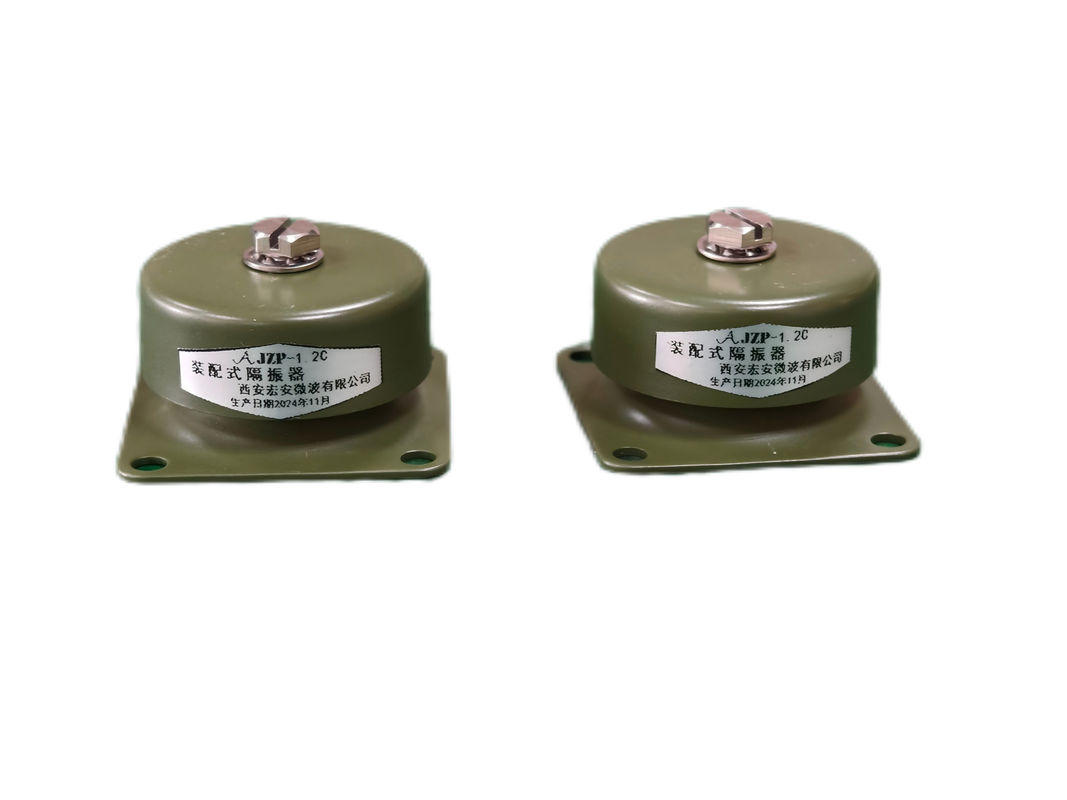

Xi'an Hoan Microwave Co., Ltd.'s JZP series friction damping vibration isolator is a high-performance vibration isolation product with many significant features and advantages.
These isolators are designed and made of advanced materials, usually a combination of metal and rubber. It uses the interaction between metal and rubber and the special friction damping principle to achieve efficient vibration isolation and energy dissipation, with good impact resistance, which can effectively buffer the vibration and impact generated during the operation of the equipment and protect the equipment from damage.
In scientific research laboratories, many precision instruments such as electron microscopes and optical spectrum analyzers are extremely sensitive to vibration. The JZP series friction damping vibration isolators can create a quiet and stable working environment for these instruments, thereby improving the accuracy and reliability of experimental data.
With its advanced technology, excellent performance and wide application prospects, the JZP series friction damping vibration isolator of Xi'an Hoan Microwave Co., Ltd. has become an ideal choice for equipment vibration isolation in many industries.
Product dimensions
Series |
D (mm) |
H±1 (mm) |
h (mm) |
A±0.2 (mm) |
B (mm) |
d | d2 | R |
b (mm) |
h1 (mm) |
JZP-SC1 | 60 | 36 | 21.7 | 50 | 60 | M5 | Φ5.5 | 5 | 28 | 3.4 |
Product parameters
Model |
Nominal Load (KG) |
Deflection |
Working Temperature (℃) |
Resonant Frequency (Hz) |
Damping ratio | Impact test |
Expiration date (year) |
JZP-3.2-SC1 | 3.2 | ≤0.3 | -45~+65 | 41.5±5 | ≥0.13 | 100G12次 | 8 |
JZP-4.2-SC1 | 4.2 | ||||||
JZP-5.2-SC1 | 5.2 | ||||||
JZP-6.0-SC1 | 6.0 | ||||||
JZP-7.0-SC1 | 7.0 | ||||||
JZP-7.5-SC1 | 7.5 | ||||||
JZP-9.0-SC1 | 9.0 | ||||||
JZP-10.5-SC1 | 10.5 | ||||||
JZP-13.5-SC1 | 13.5 | ||||||
JZP-15-SC1 | 15 |
FAQ
1.Q:Are you a manufacturer or a trading company?
A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process. This allows us to offer competitive pricing and customized solutions directly to our clients.
2.Q:Can you customize products for us?
A:Yes, we have the capability to customize our products to meet your specific needs. Please contact us with your requirements, and our team will work with you to create a tailored solution that fits your preferences.
3.Q:What is the lead time?
A:Sample will usually take 2 to 5 days.For the mass production,it will estimated take 7 to 20 day, Faster delivery when our factory has stock.
4.Q:Can I get some samples before place order and how long for a sample?
A:Yes, sample order is accepted
5.Q:How is your shipping?
A:1)worldwide shipping service available
2)please contact before order as shipping cost varies time to time.
6.Q:Do you offer discounts for bulk orders?
A:Yes, we offer discounts for bulk orders. The discount percentage may vary depending on the order quantity.
