Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
JZP-4.2-SC1
JZP-SC1 Series

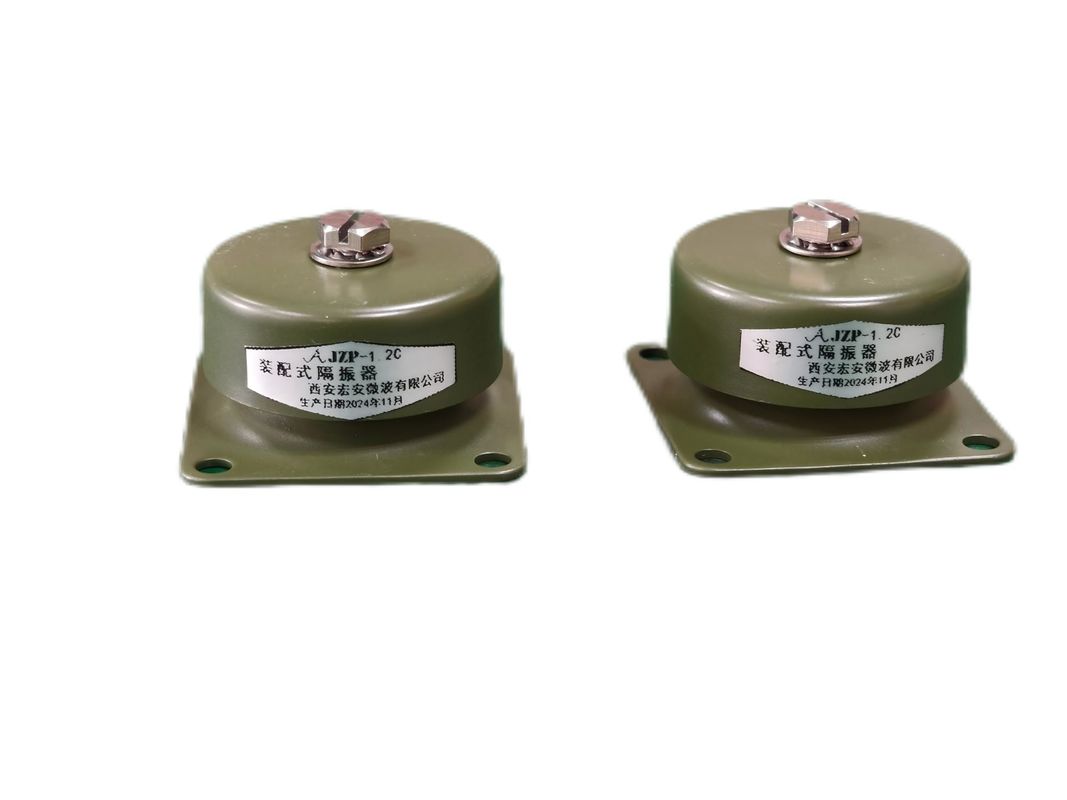

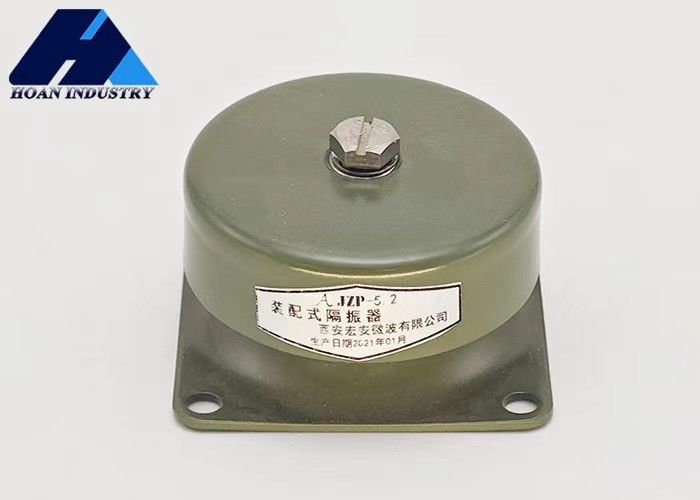

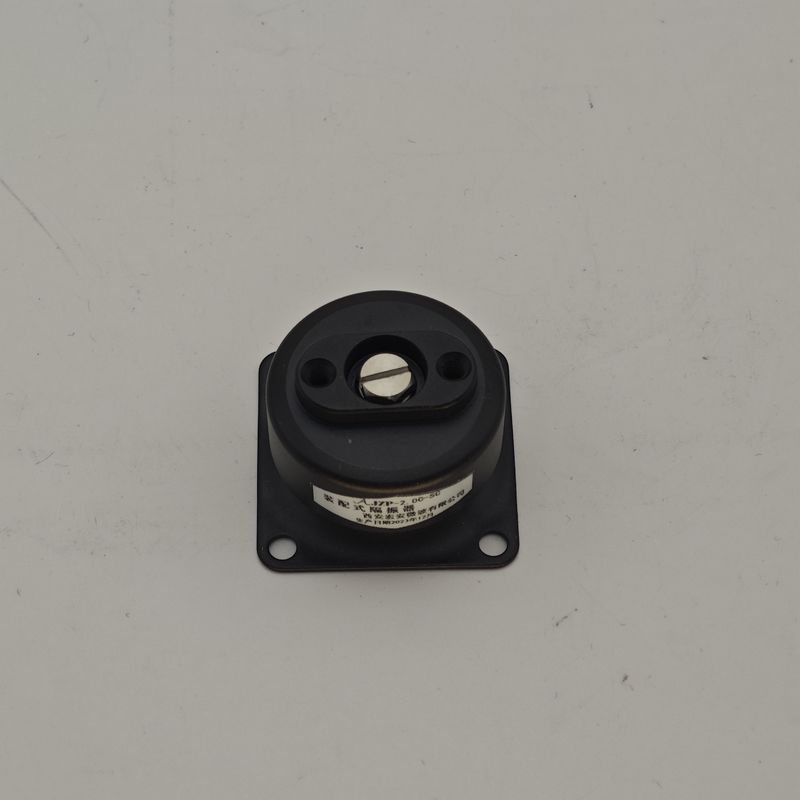

In terms of structural design, the JZP series vibration isolators have unique features. It is generally composed of upper shelf plate, lower shelf plate, screws, connecting nuts, shells, springs, bottom plates, rivets and other components, a spring pad and an upper spring are arranged above the upper shelf plate, the upper end of the upper spring is against the shell, a bushing is set between the upper shelf plate and the lower shelf plate, the tension ring is sleeved on the bushing, the damping sheet is sleeved on the tension ring, and a buffer cushion is set between the lower spring and the bottom plate.
In terms of stability, the JZP series of vibration isolators also performs well. It has strong environmental adaptability, whether it is in high temperature, low temperature, high humidity or dry environment, it can maintain stable vibration isolation performance. Under extreme temperature conditions, the materials and structures inside the isolator will not deform or deteriorate and will continue to work reliably. In addition, it has good impact resistance. In situations where the equipment may be subjected to unexpected impacts, such as during transportation or in some working situations that are prone to collisions, the JZP series vibration isolators can quickly buffer the impact energy and protect the equipment from damage.
As a professional high-tech enterprise, Xi'an Hoan Microwave Co., Ltd. has profound technical accumulation and rich experience in the design, development and production of vibration isolators. The company has a number of senior scientific and technological personnel engaged in the research and development of electronic products, and is equipped with a number of high-precision CNC lathes and various electrical performance testing equipment, with good machining capabilities and strict quality control system, to ensure the high quality and reliability of JZP series friction damping isolators.
Product dimensions
| Series |
D (mm) |
H±1 (mm) |
h (mm) |
A±0.2 (mm) |
B (mm) |
d | d2 | R |
b (mm) |
h1 (mm) |
| JZP-SC1 | 60 | 36 | 21.7 | 50 | 60 | M5 | Φ5.5 | 5 | 28 | 3.4 |
Product parameters
| Model |
Nominal Load (KG) |
Deflection |
Working Temperature (℃) |
Resonant Frequency (Hz) |
Damping ratio | Impact test |
Expiration date (year) |
| JZP-3.2-SC1 | 3.2 | ≤0.3 | -45～+65 | 41.5±5 | ≥0.13 | 100G12次 | 8 |
| JZP-4.2-SC1 | 4.2 | ||||||
| JZP-5.2-SC1 | 5.2 | ||||||
| JZP-6.0-SC1 | 6.0 | ||||||
| JZP-7.0-SC1 | 7.0 | ||||||
| JZP-7.5-SC1 | 7.5 | ||||||
| JZP-9.0-SC1 | 9.0 | ||||||
| JZP-10.5-SC1 | 10.5 | ||||||
| JZP-13.5-SC1 | 13.5 | ||||||
| JZP-15-SC1 | 15 |
