JZP-7.5 Rubber Shock Absorber for Vibration Control 7.5Kg Load

JZP-7.5 Rubber Shock Absorber for Vibration Control 7.5Kg Load

Rubber shock absorber for vibration control

7.5kg load shock absorber

Vibration control rubber mount

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JZP-7.5

Contact Us
Request A Quote
Product Details
Weather Resistance:
Excellent
Durability:
High
Mounting Orientation:
Vertical
Max Static Load:
7.5Kg
Appliocation:
Autos, Machinery,Engines
Width:
60mm
Vibration Frequency Range:
10Hz To 100Hz
Port:
Xi'an Or Specified
Mounting Hole Size:
5mm
Shock Resistance:
40g/11ms
Relative Product:
Backdraft Damper
Highlight:

Rubber shock absorber for vibration control

,

7.5kg load shock absorber

,

Vibration control rubber mount

Payment & Shipping Terms
Minimum Order Quantity
4
Payment Terms
L/C,D/A,D/P,T/T,MoneyGram,Western Union
Product Description
JZP-7.5 Rubber Shock Absorber
The ideal choice for vibration control and energy dissipation in demanding industrial applications.
Product Specifications
Weather Resistance Excellent
Durability High
Mounting Orientation Vertical
Max Static Load 7.5Kg
Application Autos, Machinery, Engines
Width 60mm
Vibration Frequency Range 10Hz to 100Hz
Port Xi'an or Specified
Mounting Hole Size 5mm
Shock Resistance 40g/11ms
JZP Series Vibration Control Technology
Advanced Damping and Energy-Dissipating Mechanism
The JZP rubber damping vibration isolator from Xi'an Hoan Microwave achieves outstanding performance through its innovative damping mechanism that converts kinetic energy into thermal energy.
Unlike simple spring-based isolators that may allow prolonged vibration, the JZP isolator integrates high-damping rubber materials that create internal friction when vibration energy is transmitted. This friction causes molecular-level heat generation that dissipates vibration energy efficiently.
Key benefits of this technology include:
  • Rapid stabilization of equipment after impact
  • Significant reduction in transmitted vibration amplitude
  • Effective suppression of resonance responses
  • Comprehensive protection from both impact and steady-state vibration
Dimensional Specifications
Model D H h A B d1 MG R
JZP 58 29 17 50 60 ∅5.5 M6 5
JZP-7.5 Rubber Shock Absorber for Vibration Control 7.5Kg Load 0
Technical Parameters
Model Pz Nominal Load (kg) Deformation Displacement (mm) Resonant Frequency (Hz) Working Temperature (℃) Shock (ks) Peak response G
JZP-2.5 2.5 ≤0.3 35±3 -45~+65 100g/6ms ≤3.6Km/s2
JZP-3.2 3.2 Same as above
JZP-4.2 4.2 Same as above
JZP-5.2 5.2 Same as above
JZP-6.0 6.0 Same as above
JZP-7.0 7.0 Same as above
JZP-7.5 7.5 Same as above
JZP-8.5 8.5 Same as above
JZP-10.5 10.5 Same as above
JZP-13.5 13.5 Same as above
JZP-15 15 Same as above

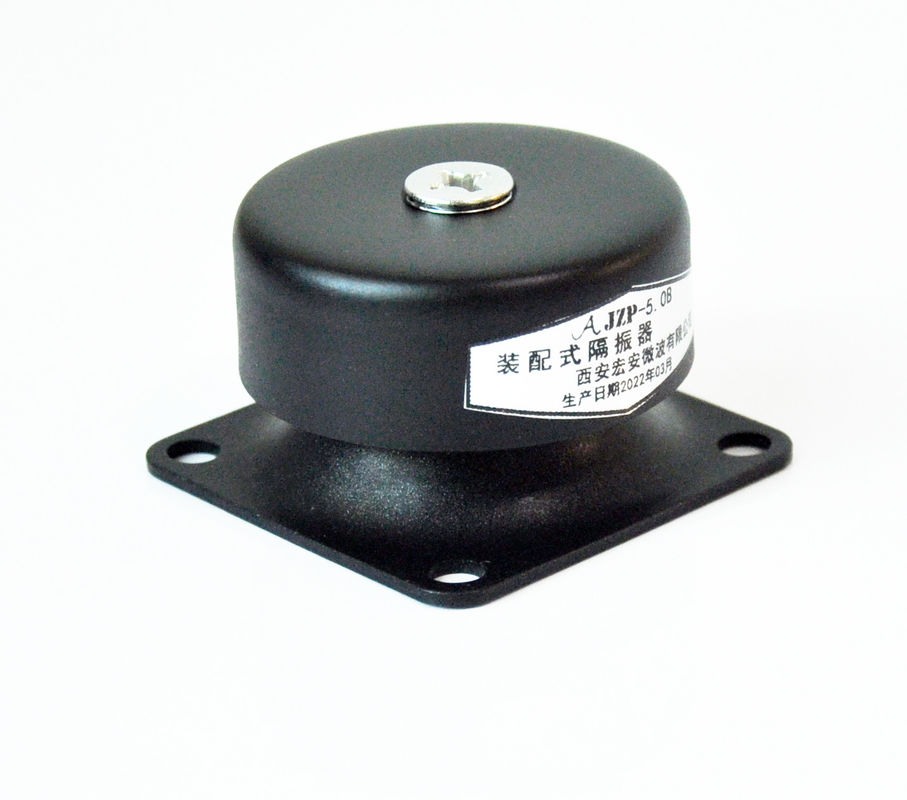

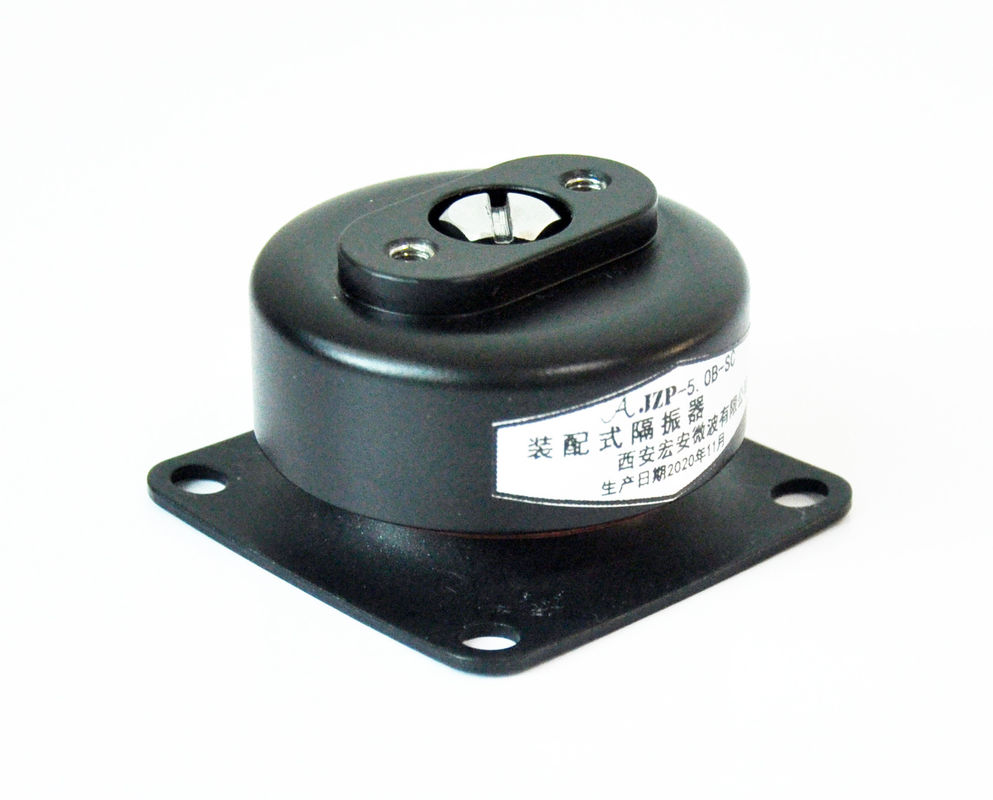

Performance Characteristics
JZP-7.5 Rubber Shock Absorber for Vibration Control 7.5Kg Load 1 JZP-7.5 Rubber Shock Absorber for Vibration Control 7.5Kg Load 2
Unique Advantages
  • No creep or ageing
  • High internal damping
  • Very wide temperature range (-45℃ to +65℃)
  • Wide variety of possible fittings
  • Rapid and economical prototyping
  • Extremely rugged construction and long lifespan
  • Excellent combined shock and vibration isolation
  • Resistant to chemical agents, seawater, ozone, and UV rays

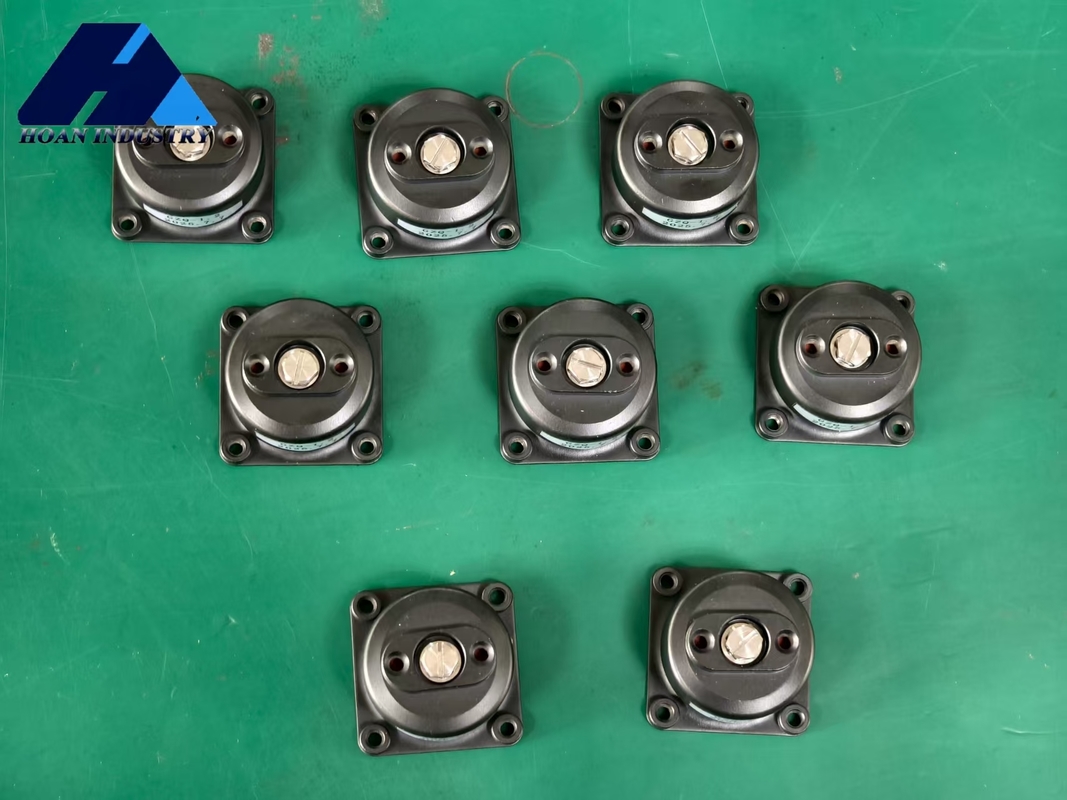

Customer Applications
JZP-7.5 Rubber Shock Absorber for Vibration Control 7.5Kg Load 3
