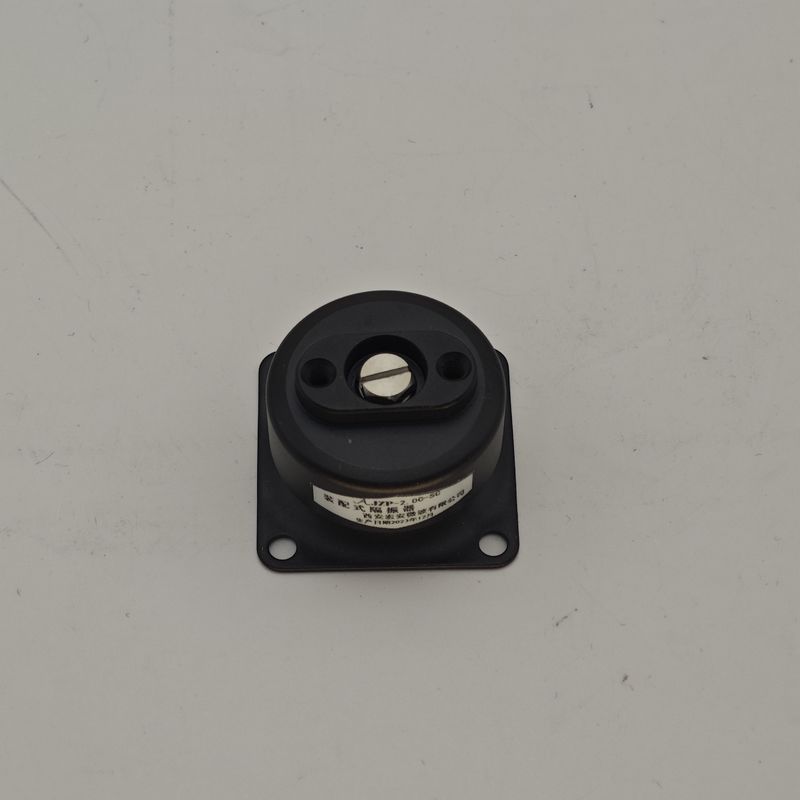

Name: JZP-10.5 Industrial Rubber Shock Absorber 60mm Wide High Vibration Reduction
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-10.5
Availability: InStock

Home > Products > Rubber Shock Absorber >

JZP-10.5 Industrial Rubber Shock Absorber 60mm Wide High Vibration Reduction

High Vibration Industrial Rubber Shock Absorber

60mm Wide Industrial Rubber Shock Absorber

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JZP-10.5

Request A Quote

Product Details

Chemical Resistance:

Excellent

Width:

60mm

Characteristic:

Wide Working Frequency, Long Life Span

Function:

Reduce Vibration

Vibration Reduction:

High

Maintenance:

Low

Quality:

Industrial Grade

Shape:

Round

Compression Ratio:

Depends On Size And Type

Drawing Format:

PDF

Temperature Range:

-40°C To 100°C

Max Static Load:

10.5Kg

Accessories:

Net

Working Temperatu:

: -55 ~ +120

Highlight:

High Vibration Industrial Rubber Shock Absorber

60mm Wide Industrial Rubber Shock Absorber

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,T/T,D/P,MoneyGram,Western Union

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

Get Best Price

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

Get Best Price

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Get Best Price

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Get Best Price

86-29-88292913

Contact Now

Product Description

JZP-10.5 Rubber Shock Absorber - Durable Performance for Industrial and Challenging Environments

Product Specifications

Chemical Resistance	Excellent
Width	60mm
Characteristic	Wide working frequency, long lifespan
Function	Reduce Vibration
Vibration Reduction	High
Maintenance	Low
Quality	Industrial Grade
Shape	Round
Compression Ratio	Depends on size and type
Drawing Format	PDF
Temperature Range	-40°C to 100°C
Max Static Load	10.5Kg
Accessories	Net
Working Temperature	-55°C to +120°C

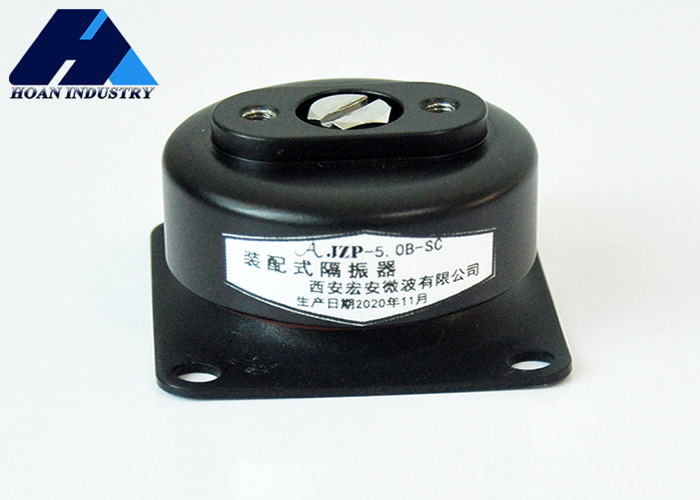

JZP Series Vibration Isolators

Engineered for Environmental Resistance and Durability

The JZP rubber damping vibration isolator from Xi'an Hoan Microwave is designed to maintain consistent performance over an extended service life, even in harsh environments. Our focus on durability and reliability ensures long-term vibration isolation with minimal maintenance requirements.

The specially formulated rubber compound offers exceptional resistance to ozone, oxidation, and UV rays. This prevents material hardening or cracking, maintaining elasticity and damping properties even in industrial environments with significant temperature and humidity fluctuations.

The innovative structural design eliminates stress concentration points between the rubber body and metal framework, ensuring uniform load distribution and enhanced fatigue resistance. Rigorous testing confirms minimal performance degradation after hundreds of thousands of load cycles.

Technical Specifications

Dimension Parameters

Model	D	H	h	A	B	d1	MG	R
JZP	58	29	17	50	60	∅5.5	M6	5

Performance Parameters

Model	Pz Nominal Load (kg)	Deformation Displacement (mm)	Resonant Frequency (Hz)	Working Temperature (℃)	Shock (ks)	Peak response G
JZP-2.5	2.5	≤0.3	35±3	-45～+65	100g/6ms	≤3.6Km/s2
JZP-3.2	3.2	Same as above
JZP-4.2	4.2	Same as above
JZP-5.2	5.2	Same as above
JZP-6.0	6.0	Same as above
JZP-7.0	7.0	Same as above
JZP-7.5	7.5	Same as above
JZP-8.5	8.5	Same as above
JZP-10.5	10.5	Same as above
JZP-13.5	13.5	Same as above
JZP-15	15	Same as above

Performance Characteristics

Key Advantages

No creep or aging - maintains performance over time
High internal damping for superior vibration isolation
Extremely wide operating temperature range
Multiple fitting options available
Rapid and economical prototyping capabilities
Rugged construction ensures long service life
Excellent combined shock and vibration isolation
Resistant to chemical agents, seawater, ozone, and UV rays

Application Examples
