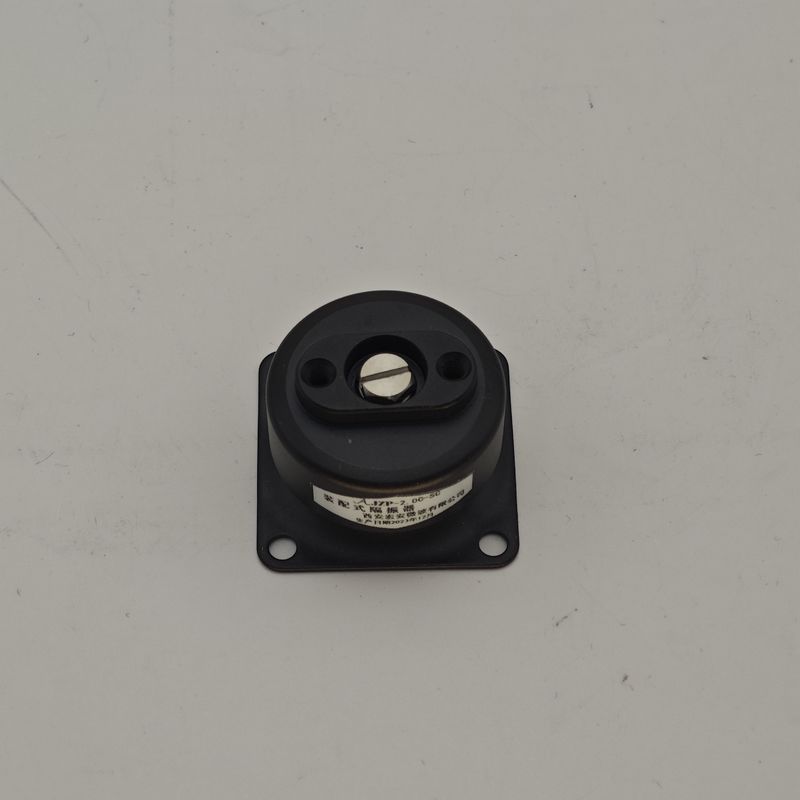

Name: JZP-13.5 Rubber Shock Absorber for Precision Instruments M6 Mount
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-13.5
Availability: InStock

Home > Products > Rubber Shock Absorber >

JZP-13.5 Rubber Shock Absorber for Precision Instruments M6 Mount

Precision Instruments Rubber Shock Absorber

JZP-13.5 Rubber Shock Absorber

M6 Mount Rubber Shock Absorber

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JZP-13.5

Request A Quote

Product Details

Vibration Frequency:

5-50Hz

Characteristics:

Elastic Good, Wear Resistance

Temperature Range:

-40°C To 100°C

Item Number:

033

Mounting Thread Size:

Characteristic:

Wide Working Frequency, Long Life Span

Applicable Industries:

Energy & Mining

Natural Frequency:

10 Hz

Material:

Rubber

Design Style:

Industrial

Shape:

Cylindrical

Vibration Isolation Type:

Passive

Highlight:

Precision Instruments Rubber Shock Absorber

JZP-13.5 Rubber Shock Absorber

M6 Mount Rubber Shock Absorber

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

MoneyGram,Western Union,T/T,D/P,D/A,L/C

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

Get Best Price

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

Get Best Price

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Get Best Price

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Get Best Price

86-29-88292913

Contact Now

Product Description

JZP-13.5 Rubber Shock Absorber - The Ultimate Solution for Precision Instruments and High-End Industrial Manufacturing

Product Attributes

Attribute	Value
Vibration Frequency	5-50Hz
Characteristics	Elastic good, wear resistance
Temperature Range	-40°C To 100°C
Item Number	033
Mounting Thread Size	M6
Characteristic	Wide Working Frequency, Long Life Span
Applicable Industries	Energy & Mining
Natural Frequency	10 Hz
Material	Rubber
Design Style	Industrial
Shape	Cylindrical
Vibration Isolation Type	Passive

Product Description

JZP Series
Beyond Traditional Shock Absorption: Xi'an Hoan Microwave's JZP Series Rubber Damping Vibration Isolators combine military-grade technology with industrial applications to provide superior vibration protection for precision equipment.

The JZP series features advanced rubber damping composite technology that efficiently converts mechanical kinetic energy into heat energy, offering excellent vibration isolation and rapid amplitude suppression. This makes it ideal for protecting sensitive equipment from both transient impacts and continuous vibration damage.

Applications include:

Military radars and satellite communication antennas
Precision CNC machine tools and optical experimental platforms
Vehicle-mounted and shipborne electronic equipment
Large medical imaging equipment (MRI, CT)

Dimension Parameters

Model	D	H	h	A	B	d1	MG	R
JZP	58	29	17	50	60	∅5.5	M6	5

Technical Parameters

Model	Pz Nominal Load (kg)	Deformation Displacement (mm)	Resonant Frequency (Hz)	Working Temperature (℃)	Shock (ks)	Peak Response G
JZP-2.5	2.5	≤0.3	35±3	-45～+65	100g/6ms	≤3.6Km/s2
JZP-3.2	3.2
JZP-4.2	4.2
JZP-5.2	5.2
JZP-6.0	6.0
JZP-7.0	7.0
JZP-7.5	7.5
JZP-8.5	8.5
JZP-10.5	10.5
JZP-13.5	13.5
JZP-15	15

Performance Graphs

Frequently Asked Questions

Q: Are you a manufacturer or a trading company?

A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process.

Q: Can you customize products for us?

A: Yes, we can customize products to meet your specific requirements. Contact us with your needs for a tailored solution.

Q: What is the lead time?

A: Samples typically take 2-5 days. Mass production takes 7-20 days, with faster delivery available when we have stock.

Q: Can I get samples before placing an order?

A: Yes, sample orders are accepted.

Q: How is your shipping?

A: Worldwide shipping is available. Please contact us before ordering as shipping costs vary.

Q: Do you offer bulk order discounts?

A: Yes, we offer quantity discounts that vary based on order size.
