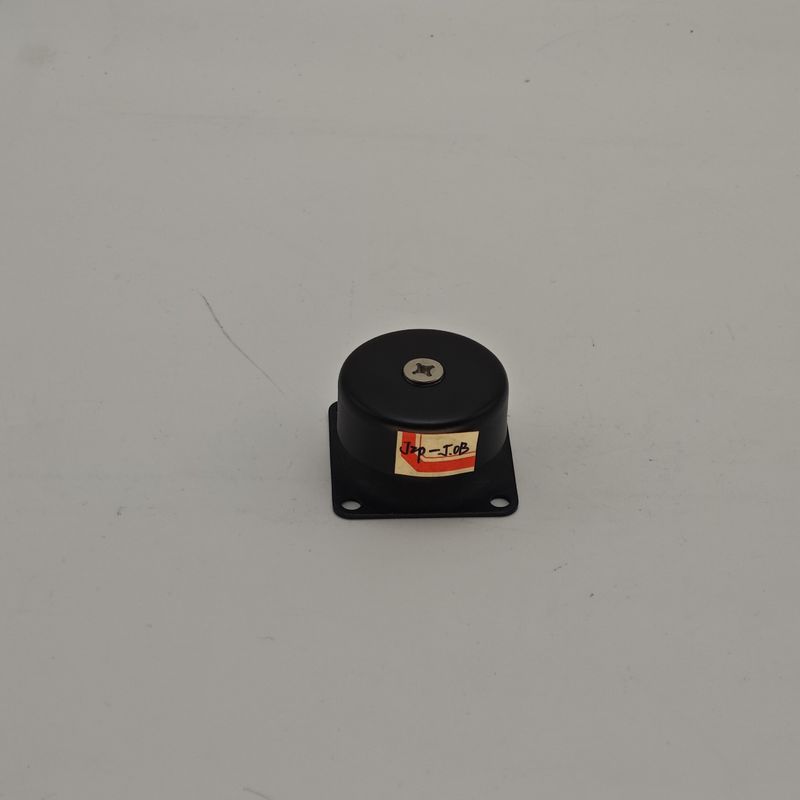

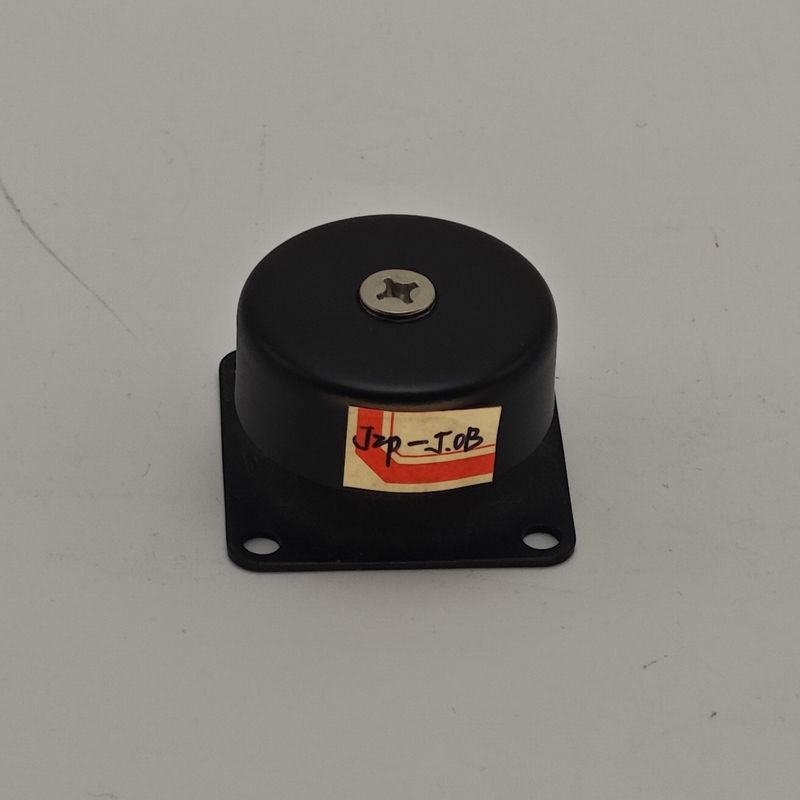

Name: JZP-3.2-SC-SC1 Rubber Shock Absorber with Resonant Frequency 5-10HZ Damping Ratio 0.5 and Up to 90% Vibration Isolation for Precision Equipment
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-3.2-SC-SC1
Availability: InStock

Home > Products > Rubber Shock Absorber >

JZP-3.2-SC-SC1 Rubber Shock Absorber with Resonant Frequency 5-10HZ Damping Ratio 0.5 and Up to 90% Vibration Isolation for Precision Equipment

Resonant Frequency 5-10HZ Rubber Shock Absorber

Damping Ratio 0.5 Vibration Isolator

Up to 90% Vibration Isolation Friction Damping Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JZP-3.2-SC-SC1

Request A Quote

Product Details

Applicable Industries:

Energy & Mining

Resonant Frequency:

5-10HZ

Damping Ratio:

0.5

Port:

Xi'an Or Specified

Installation Type:

Horizontal/Vertical

Vibration Isolation Type:

Passive

Wire Rope Material:

Galvanized Steel

Relative Product:

Backdraft Damper

Weight:

0.2kg

Accessories:

Net

Vibration Isolation:

Up To 90%

Highlight:

Resonant Frequency 5-10HZ Rubber Shock Absorber

Damping Ratio 0.5 Vibration Isolator

Up to 90% Vibration Isolation Friction Damping Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

Get Best Price

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

Get Best Price

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Get Best Price

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Get Best Price

86-29-88292913

Contact Now

Product Description

JZP-3.2-SC-SC1 The Innovative Rubber Shock Absorber for Precision Equipment Stability

JZP-SC-SC1 Series Friction Damping Vibration Isolator

Redefining stability for precision equipment in manufacturing, laboratory measurement, and high-end communications applications. The JZP-sc-sc1 series from Xi'an Hoan Microwave Co., Ltd. provides an advanced solution for vibration isolation where even micron-level vibrations can compromise performance.

Advanced Friction Damping Technology

Unlike conventional spring or pneumatic isolators, the JZP-sc-sc1 series features an innovative friction damping mechanism that converts destructive vibration energy into thermal energy for dissipation. This technology acts as an "invisible steward" for your equipment, effectively suppressing both continuous low-frequency oscillations and sudden transient impacts.

Key Performance Advantages

Superior full-frequency vibration isolation performance
High damping characteristics significantly reduce resonance peaks
Ensures smooth equipment transitions during startup, shutdown, or external disturbances
Integrates efficient vibration isolation with high load-bearing capacity
Compact, maintenance-free design for reliable long-term operation

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	b (mm)
JZP-SC-SC1	60	36	24.5	50	60	M5	∅5.5	5	28

Technical Parameters

Model	Nominal Load (KG)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Limited Period
JMZ-3.2-SC-SC1	3.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-4.2-SC-SC1	4.2	Same as above
JMZ-5.2-SC-SC1	5.2	Same as above
JMZ-6.0-SC-SC1	6.0	Same as above
JMZ-7.0-SC-SC1	7.0	Same as above
JZP-7.5-SC-SC1	7.5	Same as above
JZP-9.0-SC-SC1	9.0	Same as above
JZP-10.5-SC-SC1	10.5	Same as above
JZP-13.5-SC-SC1	13.5	Same as above
JZP-15-SC-SC1	15	Same as above

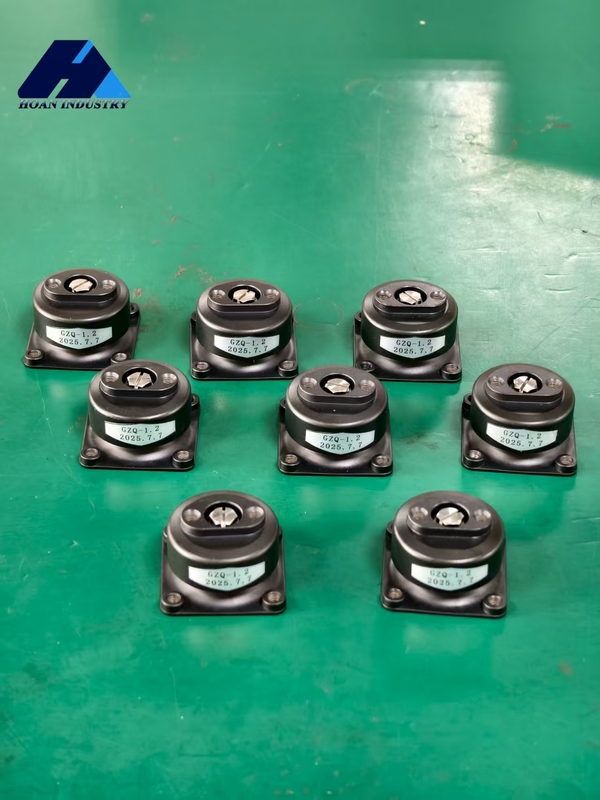

Customer Applications
