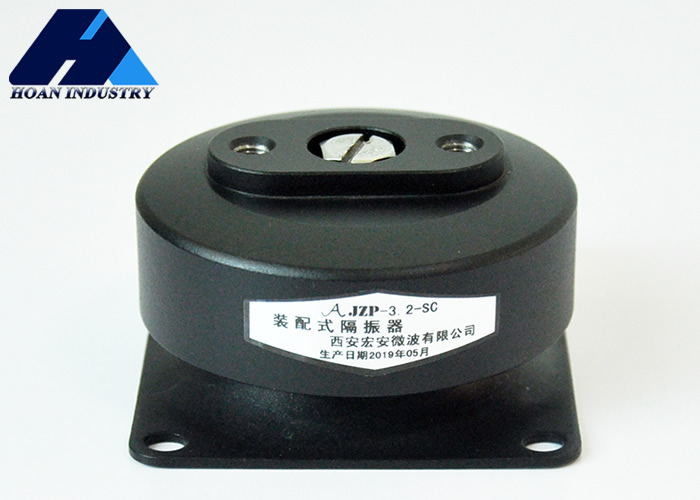

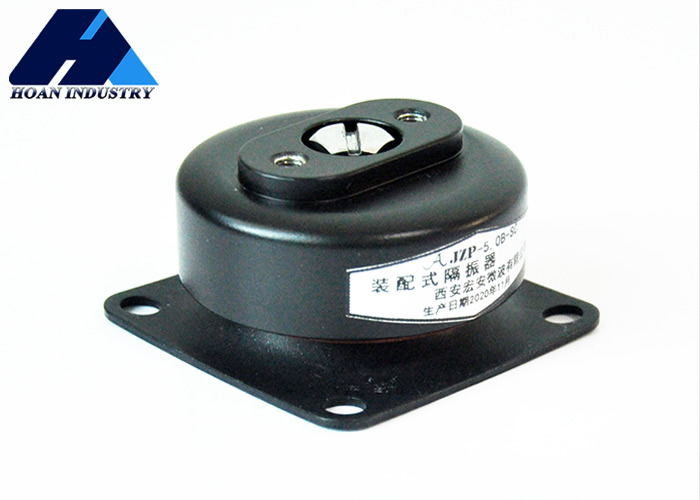

Name: ISO 9001:2015 Certified Industrial Grade Rubber Shock Absorber with 90% Vibration Isolation for Precision Instruments JZP-5.2-SC-SC1
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-5.2-SC-SC1
Availability: InStock

Home > Products > Rubber Shock Absorber >

ISO 9001:2015 Certified Industrial Grade Rubber Shock Absorber with 90% Vibration Isolation for Precision Instruments JZP-5.2-SC-SC1

ISO 9001:2015 Certified Rubber Shock Absorber

Industrial Grade Vibration Isolator

90% Vibration Isolation Friction Damping Isolator

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JZP-5.2-SC-SC1

Request A Quote

Product Details

Features:

Anchoring Holes; Oil Resistant

Vibration Isolation:

Up To 90%

Certifications:

ISO 9001:2015

Quality:

Industrial Grade

Diameter:

0.25-2 Inches

Compatibility:

Can Be Used With Different Types Of Equipment

Isolation Efficiency:

90%

Mounting Type:

Threaded

Maximum Deflection:

1 Inch

Compression:

Customized

Vibration Resistance:

High

Size:

Various Sizes Available

Product Keywords:

Friction Damping Isolators

Highlight:

ISO 9001:2015 Certified Rubber Shock Absorber

Industrial Grade Vibration Isolator

90% Vibration Isolation Friction Damping Isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

Get Best Price

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

Get Best Price

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Get Best Price

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Get Best Price

86-29-88292913

Contact Now

Product Description

Efficiently Extend Equipment Lifecycle with JZP-5.2-SC-SC1 Rubber Shock Absorbers for Precision Instruments

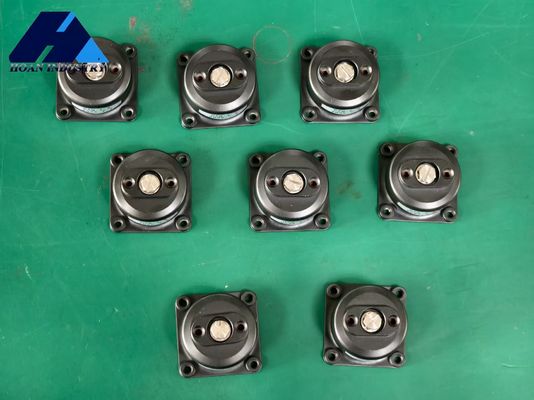

JZP-SC-SC1 Series Vibration Isolators

In corporate cost accounting, precision instruments represent significant capital investments. The JZP-SC-SC1 series friction damping vibration isolators from Xi'an Hoan Microwave provide a key solution to extend equipment lifecycle and improve return on investment by effectively mitigating vibration damage.

Long-Term Reliability Economics

Vibration damage to equipment is cumulative and fatigue-induced, causing issues including bearing wear, loose screws, and optical component misalignment. The JZP-SC-SC1 fundamentally cuts off vibrational energy transmission, providing:

Lower equipment failure rates
Extended calibration intervals
Reduced maintenance requirements
Preserved measurement accuracy

Total Lifecycle Cost Benefits

A one-time investment in high-quality vibration isolation proves more cost-effective than expenses from vibration-related issues such as frequent repairs, production downtime, and premature equipment replacement.

Key Construction Features:

All-metal body construction
High-performance composite friction materials
Superior fatigue resistance and anti-aging properties
Consistent long-term performance

Technical Specifications

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	b (mm)
JZP-SC-SC1	60	36	24.5	50	60	M5	∅5.5	5	28

Technical Parameters

Model	Nominal Load (KG)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Limited Period
JMZ-3.2-SC-SC1	3.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-4.2-SC-SC1	4.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-5.2-SC-SC1	5.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-6.0-SC-SC1	6.0	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-7.0-SC-SC1	7.0	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-7.5-SC-SC1	7.5	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-9.0-SC-SC1	9.0	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-10.5-SC-SC1	10.5	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-13.5-SC-SC1	13.5	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-15-SC-SC1	15	≤0.3	-45～+65	41.5±5	100g 12 times	8

Customer Implementation

Xi'an Hoan Microwave provides more than products - we offer asset management solutions that protect your precision equipment investments through superior vibration control technology.
