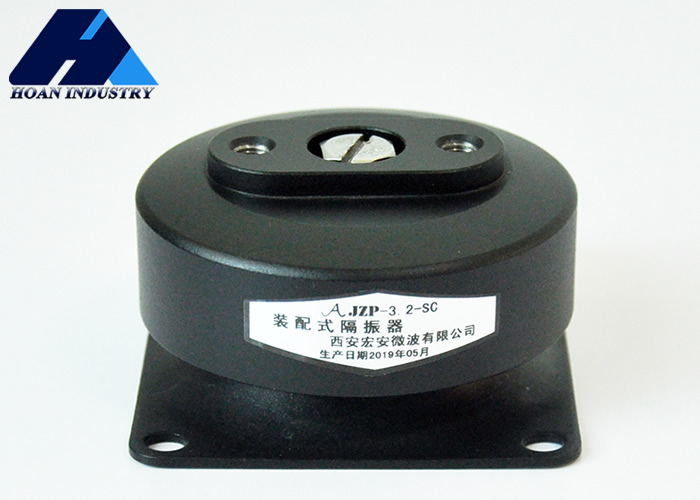

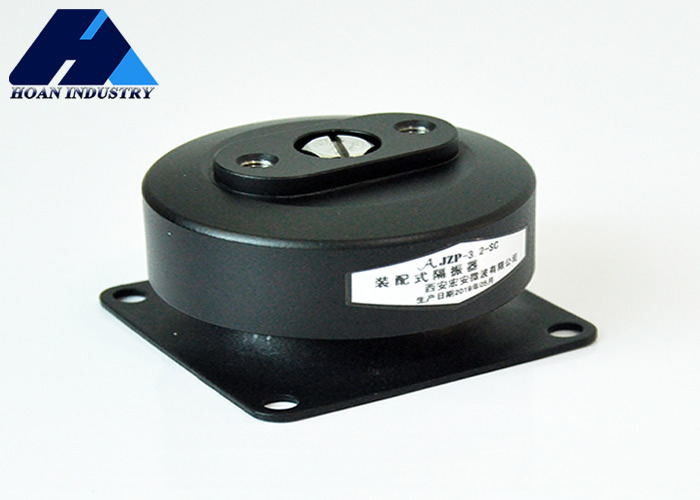

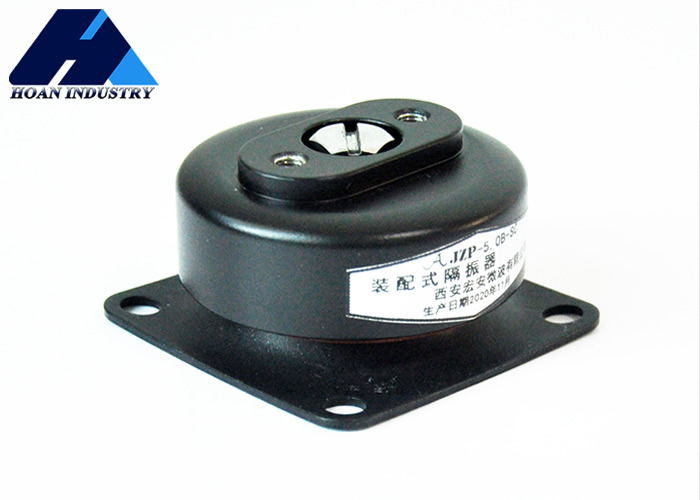

Name: JZP-7.0-SC-SC1 Rubber Shock Absorber with 100g/12times Shock Resistance and 50N/mm Axial Stiffness for Optical Systems
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-7.0-SC-SC1
Availability: InStock

Home > Products > Rubber Shock Absorber >

JZP-7.0-SC-SC1 Rubber Shock Absorber with 100g/12times Shock Resistance and 50N/mm Axial Stiffness for Optical Systems

100g/12times Shock Resistance Rubber Shock Absorber

50N/mm Axial Stiffness Vibration Isolator

0.25-2 inches Diameter Friction Damping Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JZP-7.0-SC-SC1

Request A Quote

Product Details

Vibration Resistance:

High

Package:

Plastic Bag, Cartons

Compression Ratio:

1:2

Structure:

Helical

Shock Resistance:

100g/12times

Applicable Industries:

Energy & Mining

Diameter:

0.25-2 Inches

Packing:

Standard Packing

Core Components:

Bearing

Operating Frequency:

Depends On Size And Type

Axial Stiffness:

50N/mm

Model:

JZP

Highlight:

100g/12times Shock Resistance Rubber Shock Absorber

50N/mm Axial Stiffness Vibration Isolator

0.25-2 inches Diameter Friction Damping Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

Get Best Price

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

Get Best Price

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Get Best Price

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Get Best Price

86-29-88292913

Contact Now

Product Description

JZP-7.0-SC-SC1 Series Rubber Shock Absorber for Optical Systems

Enhancing Imaging Quality in Precision Optical Applications

The JZP-SC-SC1 series vibration isolators from Xi'an Hoan Microwave provide critical vibration damping for high-end imaging systems where environmental vibrations threaten image quality and measurement accuracy.

Key Applications

Lithography machines
Semiconductor inspection equipment
Astronomical telescopes
Confocal microscopes

Performance Advantages

The JZP-sc-sc1 series delivers exceptional vibration attenuation in the critical low-frequency range that most affects optical systems:

Optimized natural frequency for optical applications
Efficient friction damping technology
Creates stable, vibration-free environment for sensitive components
Maintains rigid stability of entire optical path

Dimensional Specifications

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	b (mm)
JZP-SC-SC1	60	36	24.5	50	60	M5	∅5.5	5	28

Technical Parameters

Model	Nominal Load (KG)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Limited Period
JMZ-3.2-SC-SC1	3.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-4.2-SC-SC1	4.2
JMZ-5.2-SC-SC1	5.2
JMZ-6.0-SC-SC1	6.0
JMZ-7.0-SC-SC1	7.0
JZP-7.5-SC-SC1	7.5
JZP-9.0-SC-SC1	9.0
JZP-10.5-SC-SC1	10.5
JZP-13.5-SC-SC1	13.5
JZP-15-SC-SC1	15

Customer Implementation

For researchers and engineers pushing the boundaries of imaging technology, the JZP-sc-sc1 series provides a fundamental solution to vibration challenges - the unsung hero of precision optical systems.
