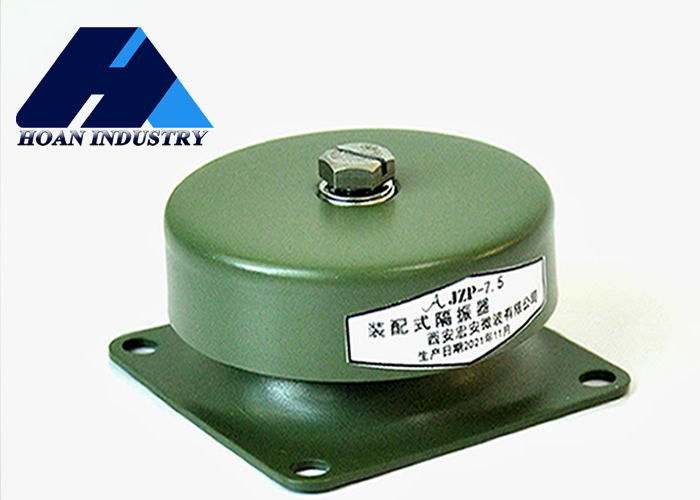

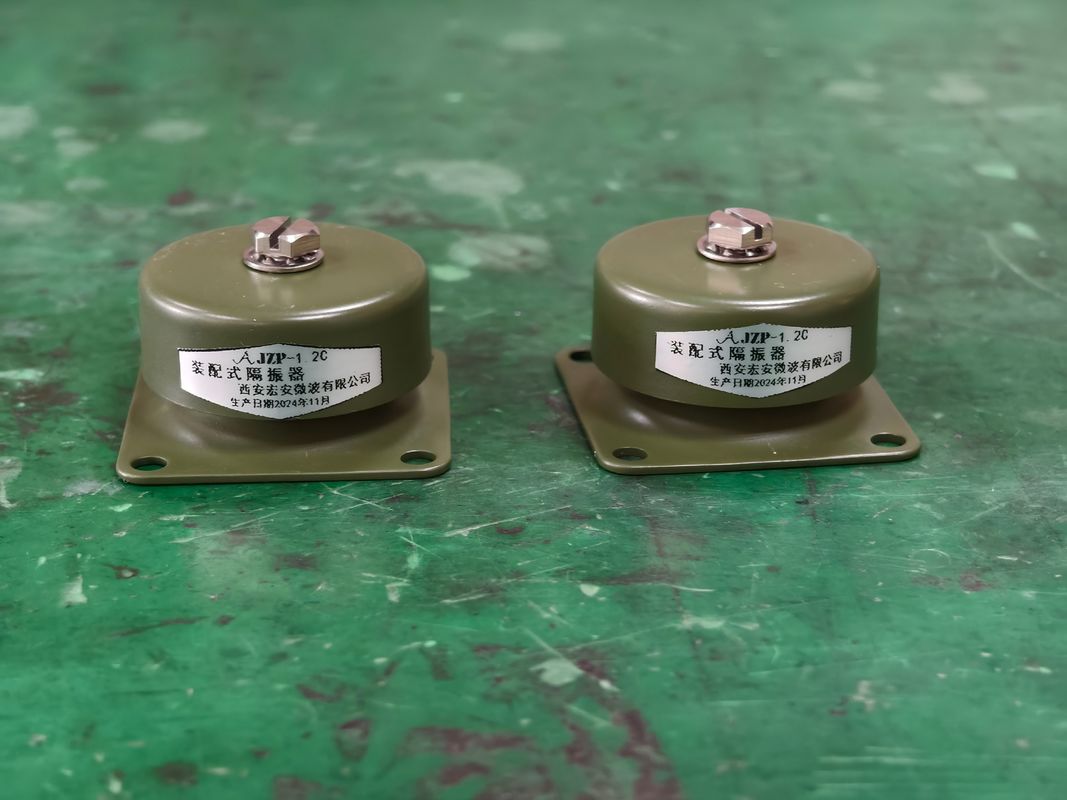

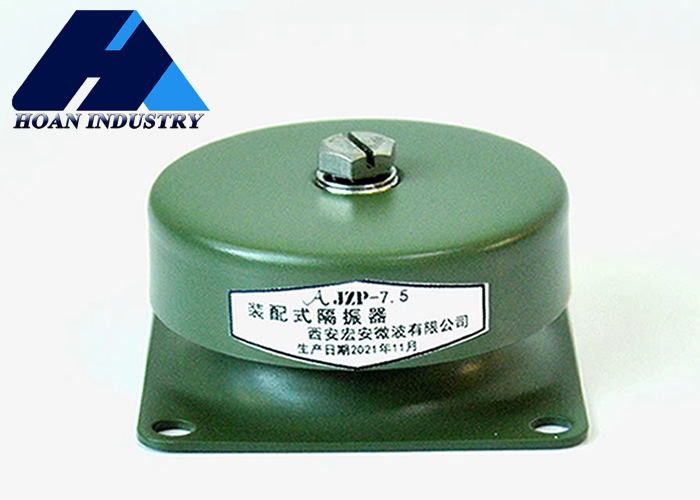

Name: JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-9.0-SC-SC1
Availability: InStock

Home > Products > Rubber Shock Absorber >

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Temperature Resistance Rubber Shock Absorber

50mm Width Vibration Isolator

30 Hz Resonance Frequency Friction Damping Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JZP-9.0-SC-SC1

Request A Quote

Product Details

Temperature Resistance:

Up To 100 Degrees Celsius

Width:

50mm

Material:

Rubber

Uv Resistance:

Strong

Resonance Frequency:

30 Hz

Load Capacity:

100-5000 Lbs

Mounting Orientation:

Vertical

Packing:

Standard Packing

Axial Stiffness:

50N/mm

Vibration Frequency:

5Hz To 100Hz

Quality:

Industrial Grade

Marketing Type:

Hot Product 2024

Usage:

Industrial Machinery

Highlight:

Temperature Resistance Rubber Shock Absorber

50mm Width Vibration Isolator

30 Hz Resonance Frequency Friction Damping Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

Get Best Price

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

Get Best Price

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Get Best Price

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Get Best Price

86-29-88292913

Contact Now

Product Description

JZP-9.0-SC-SC1 Rubber Shock Absorber - Essential Component for Industry 4.0 Smart Production Lines

JZP-SC-SC1 Series: The Efficiency Multiplier for Smart Manufacturing

Under Industry 4.0 frameworks, production line intelligence and high throughput demand unprecedented equipment stability. The JZP-SC-SC1 series friction damping vibration isolators from Xi'an Hoan Microwave serve as critical "efficiency multipliers" for smart production lines.

Key Performance Advantages:

Effectively mitigates transient impacts and wide-frequency vibrations from industrial robots and AGV systems
Maintains positioning accuracy for precision assembly robots
Ensures clear imaging for visual inspection systems
Reduces quality issues like connector insertion failures
High damping characteristics enable rapid equipment stabilization between movements
Robust, maintenance-free design meets industrial reliability requirements

By implementing JZP-SC-SC1 isolators, manufacturers achieve not just vibration control but complete production process optimization - enabling truly efficient, high-reliability "dark factory" operations.

Dimension Specifications

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	b (mm)
JZP-SC-SC1	60	36	24.5	50	60	M5	∅5.5	5	28

Technical Parameters

Model	Nominal Load (KG)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Limited Period
JMZ-3.2-SC-SC1	3.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-4.2-SC-SC1	4.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-5.2-SC-SC1	5.2	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-6.0-SC-SC1	6.0	≤0.3	-45～+65	41.5±5	100g 12 times	8
JMZ-7.0-SC-SC1	7.0	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-7.5-SC-SC1	7.5	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-9.0-SC-SC1	9.0	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-10.5-SC-SC1	10.5	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-13.5-SC-SC1	13.5	≤0.3	-45～+65	41.5±5	100g 12 times	8
JZP-15-SC-SC1	15	≤0.3	-45～+65	41.5±5	100g 12 times	8

Customer Implementation
