JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

Damping Ratio 0.5 Rubber Shock Absorber

1 Year Warranty Vibration Isolator

60mm Length Friction Damping Vibration Isolator

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JZP-13.5-SC-SC1

Contact Us
Request A Quote
JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing
Product Details
Length:
60mm
Vibration Isolation:
Up To 90%
Quality:
Industrial Grade
Mounting Holes:
M5
Installation:
Wall Mounted
Vibration Isolation Type:
Passive
Damping Ratio:
0.5
Warranty:
1 Year
Resistance:
Chemical, Heat, And Weather
Temperature Resistance:
Can Withstand High And Low Temperatures
Axial Stiffness:
50N/mm
Mounting Type:
Threaded
After Warranty Service:
Online Support
Highlight:

Damping Ratio 0.5 Rubber Shock Absorber

,

1 Year Warranty Vibration Isolator

,

60mm Length Friction Damping Vibration Isolator

Payment & Shipping Terms
Minimum Order Quantity
4
Payment Terms
MoneyGram,Western Union,T/T,D/P,D/A,L/C
RELATED PRODUCTS
Good price JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing online

JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing

Get Best Price
Good price JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation online

JZP-10.5-SC-SC1 Rubber Shock Absorber with 10Hz to 100Hz Frequency Range and -55 to +120 Working Temperature for Horizontal/Vertical Installation

Get Best Price
Good price JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery online

JZP-9.0-SC-SC1 Rubber Shock Absorber with Temperature Resistance Up to 100 Degrees Celsius 50mm Width and 30 Hz Resonance Frequency for Industrial Machinery

Get Best Price
Good price JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness online

JZP-7.5-SC-SC1 Friction Damping Vibration Isolator with Up to 90% Vibration Isolation M5 Mounting Thread Size and 50N/mm Axial Stiffness

Get Best Price
Contact Us
86-29-88292913
Contact Now
Product Description
Sustainable Manufacturing Made Easy with JZP-13.5-SC-SC1 Rubber Shock Absorber
JZP-SC-SC1 Series: The Eco-Friendly Vibration Isolation Solution

As green manufacturing becomes a global priority, industrial components must demonstrate environmental responsibility throughout their lifecycle. The JZP-SC-SC1 series friction damping vibration isolators from Xi'an Hoan Microwave combine exceptional durability with sustainable features including maintenance-free operation and zero pollution.

Key Environmental Benefits
  • Extended Service Life: Metal construction ensures durability that typically outlasts the equipment it protects, minimizing replacement waste
  • Zero Energy Consumption: Passive mechanical design eliminates electricity needs and prevents emissions during operation
  • Maintenance-Free Operation: Saves on lubricants, cleaning agents, and labor costs while reducing environmental impact
  • Pollution Prevention: No risk of hydraulic fluid leaks compared to conventional dampers
Dimension Specifications
JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing 0
Model D (mm) H±1 (mm) h (mm) A±0.2 (mm) B (mm) d d2 R b (mm)
JZP-SC-SC1 60 36 24.5 50 60 M5 ∅5.5 5 28
Technical Parameters
Model Nominal Load (KG) Static Displacement (mm) Working Temperature (℃) Resonance Frequency (Hz) Impact Test Limited Period
JMZ-3.2-SC-SC1 3.2 ≤0.3 -45～+65 41.5±5 100g 12 times 8
JMZ-4.2-SC-SC14.2
JMZ-5.2-SC-SC15.2
JMZ-6.0-SC-SC16.0
JMZ-7.0-SC-SC17.0
JZP-7.5-SC-SC17.5
JZP-9.0-SC-SC19.0
JZP-10.5-SC-SC110.5
JZP-13.5-SC-SC113.5
JZP-15-SC-SC115

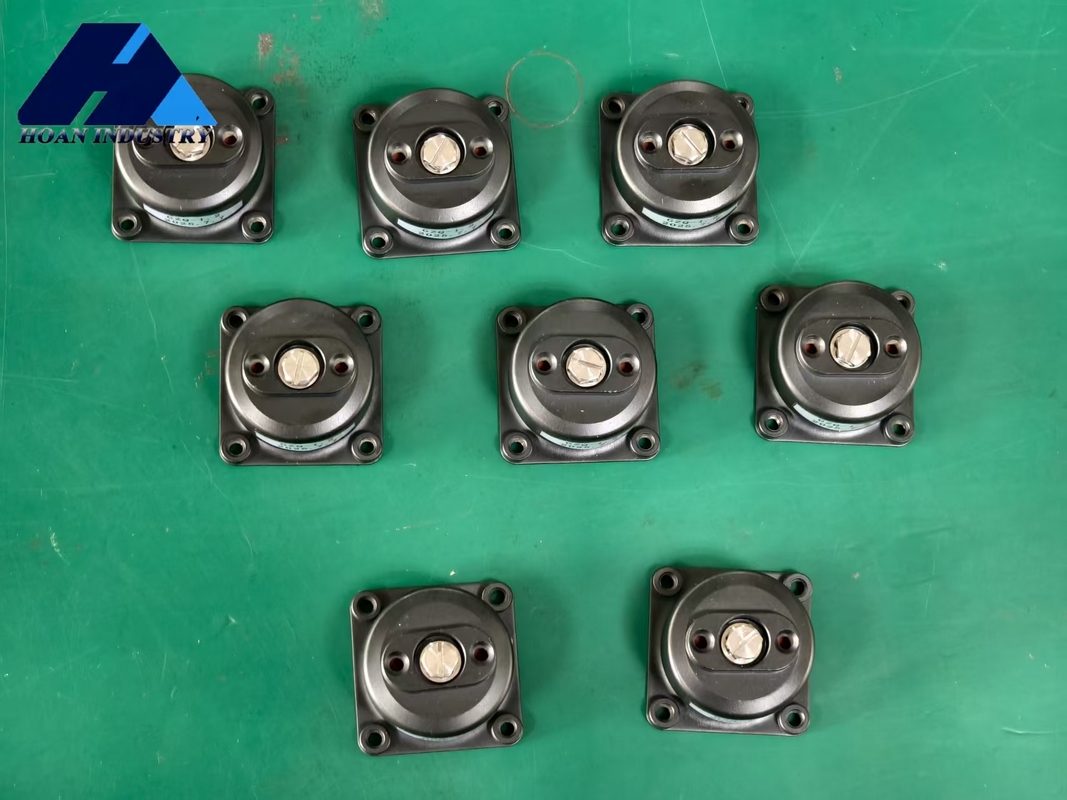

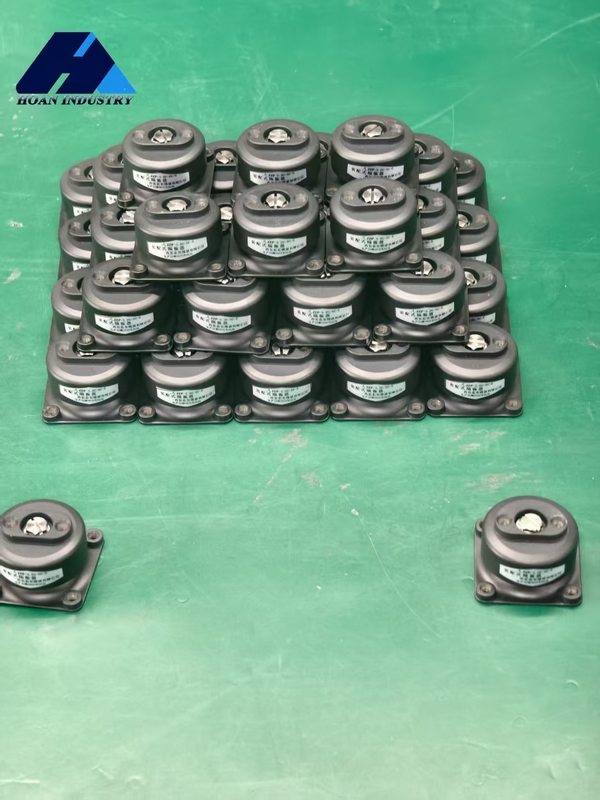

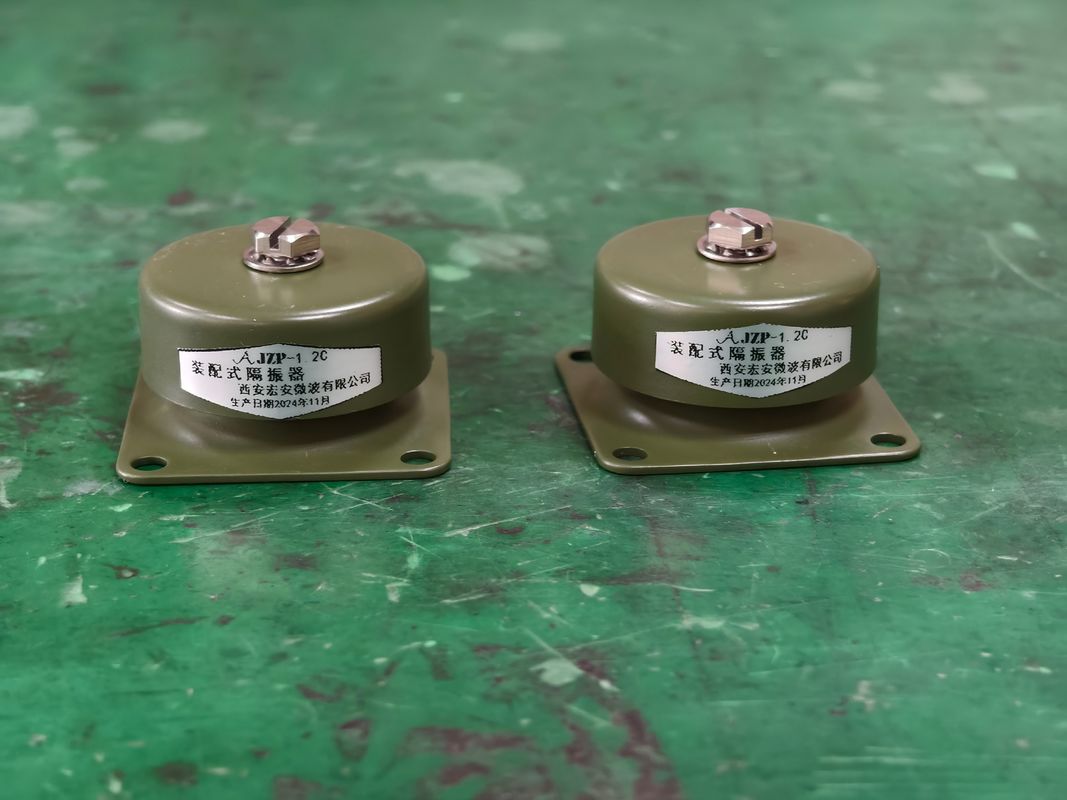

Customer Implementation
JZP-13.5-SC-SC1 Rubber Shock Absorber with Damping Ratio 0.5 1 Year Warranty and 60mm Length for Sustainable Manufacturing 1
