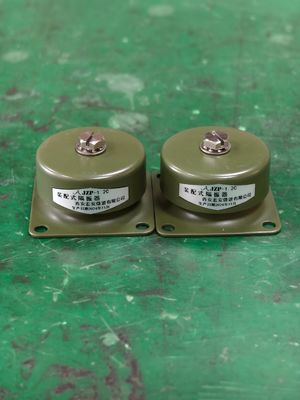

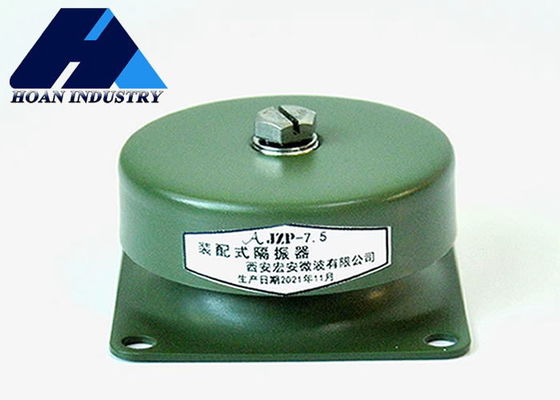

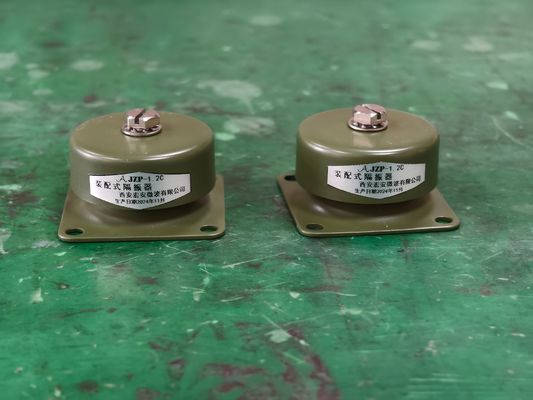

JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation

Name: JZP-4.0B-SC Rubber Shock Absorber with M5 Mounting Holes 30mm Height and High Pressure Resistance for Vibration Isolation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JZP-4.0B-SC
Availability: InStock

Brand Name:	Hoan
Model Number:	JZP-4.0B-SC
MOQ:	4
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Characteristic:

Wide Working Frequency, Long Life Span

Longevity:

Long-lasting

Country Of Origin:

China

Usage:

Absorbs Shock And Vibration

Material:

Rubber

Noise Reduction:

Effective In Reducing Noise

Machinery Test Report:

Not Available

Hardness:

Customized

Pressure Resistance:

High

Height:

30mm

Resistance:

Chemical, Heat, And Weather

Vibration Isolation Type:

Passive

Cost:

Affordable

Mounting Holes:

Highlight:

M5 Mounting Holes Rubber Shock Absorber

30mm Height Vibration Isolator

High Pressure Resistance JZP Series

Product Description

JZP-4.0B-SC The Flexible Adaptability of Rubber Shock Absorber for Vibration Isolation Solutions

JZP-B-SC Series

Customized Vibration Isolation Solutions

While standardized products meet most requirements, specialized equipment with unique specifications or extreme performance demands require customized protection. Xi'an Hoan Microwave Co., Ltd. designed the JZP Series with powerful customization capabilities to deliver tailored vibration isolation solutions.

From Product to Solution

Xi'an Hoan provides comprehensive consulting services, analyzing equipment specifications including weight, dimensions, center of gravity, sensitive frequency bands, and operating environment. Engineers optimize selections from the JZP Series or modify existing structures with adjustments to:

Mounting hole positions
Interface types
Load-bearing stiffness

Specialized Applications

For precision instruments (electron microscopes, spectral analyzers) or heavy equipment (large battery packs, hydraulic units), Xi'an Hoan develops specialized models featuring:

Custom damping material formulations
Multi-stage vibration isolation structures
Active/semi-active control technologies

Dimension Parameters

Model	D (mm)	H±1 (mm)	h (mm)	A±0.2 (mm)	B (mm)	d	d2	R	B (mm)
JZP-B-SC	46	30	21	40	50	M4	∅5.5	5	22

Technical Parameters

Model	Nominal Load (kg)	Static Displacement (mm)	Working Temperature (℃)	Resonance Frequency (Hz)	Impact Test	Valid Period (year)
JZP-1.0B-SC	1.0	≤0.3	-45～+65	41.5±5	100G12times	8
JZP-1.5B-SC	1.5	Same as above
JZP-2.0B-SC	2.0	Same as above
JZP-2.5B-SC	2.5	Same as above
JZP-3.0B-SC	3.0	Same as above
JZP-3.5B-SC	3.5	Same as above
JZP-4.0B-SC	4.0	Same as above
JZP-5.0B-SC	5.0	Same as above
JZP-5.5B-SC	5.5	Same as above
JZP-6.0B-SC	6.0	Same as above

Performance Curves

Vibration

Impact
