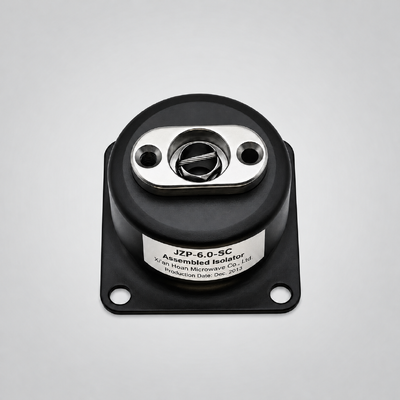

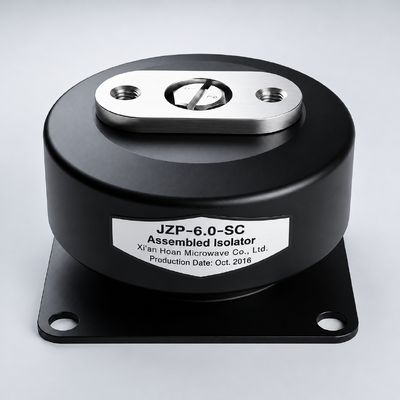

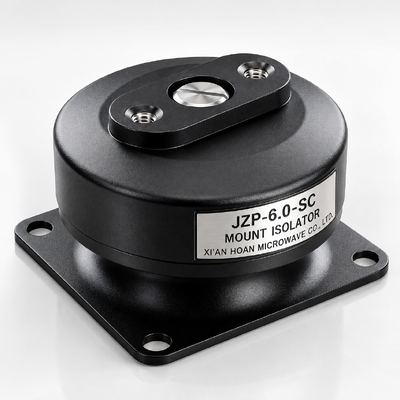

JZP-6.0-SC Rubber Shock Absorber Creep Resistance Zero-Settling Drop-In Direct OEM Replacement Mount

JZP-6.0-SC Rubber Shock Absorber: Creep Resistance, Zero-Settling and Drop-In OEM Replacement

Quick Answer

The JZP-6.0-SC is a friction-damping rubber shock absorber with a 6.0 kg nominal load, built on the JZP-SC1 platform. It is defined by four properties buyers ask about most: creep resistance with zero-settling, high-impulse shock absorption, a drop-in direct OEM replacement footprint, and a non-marking low-outgassing elastomer. It isolates vibration around a 41.5 ± 5 Hz resonance across a −45 °C to +65 °C working range.

At a Glance

• Load: 6.0 kg nominal, ≤ 0.3 mm deflection at rating
• Resonance: 41.5 ± 5 Hz, damping ratio ≥ 0.13
• Temperature: −45 °C to +65 °C
• Impact: 100 G verified over 12 cycles
• Life: up to 8 years; creep-resistant, zero-settling
• Fit: drop-in direct OEM replacement, M5 fixing, 60 mm base
• Finish: non-marking, low outgassing

Technical Specifications (JZP-6.0-SC)

Common Applications

• Precision instruments and inspection stations
• Optics, sensors and electronics assemblies
• Control cabinets and switchgear on vibrating floors
• Light machinery, blowers and pumps

Key Takeaways

• 6.0 kg rating, 41.5 ± 5 Hz resonance, −45 °C to +65 °C, 100 G impact verified.
• Creep-resistant zero-settling design that keeps its tuning for up to 8 years.
• Drop-in OEM fit plus a non-marking, low outgassing elastomer for sensitive settings.
