2200MHz～2310MHz Dual Cavity Bandpass Filter JT-QF-2255-LBX With Low Insertion Loss

Detail Information

Product Description

Detail Information

Passband Frequency:

2200MHz～2310MHz

Insertion Loss:

≤0.3dB

Rejection:

≥30dB@2000 MHz～2120MHz

VSWR:

≤1.35

Impedance:

50Ω

Interface Type:

Output：LBX-J,input：pin

Operating Temperature:

-55℃～85℃

External Dimensions:

158×78×37.8（mm）

Weight:

420g

Highlight:

2200MHz～2310MHz Cavity Bandpass Filter

Dual Cavity Bandpass Filter

JT-QF-2255-LBX

Product Description

Summary

JT-QF-2255-LBX dual cavity filter is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.

Mainly used for signal selection and interference suppression in radar communication systems.

Characteristic

Low insertion loss, light weight, strong environmental adaptability, and high reliability.

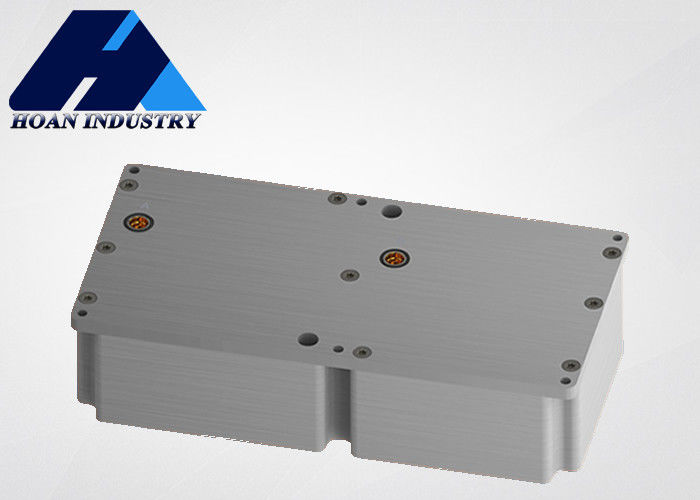

2200MHz～2310MHz Dual Cavity Bandpass Filter JT-QF-2255-LBX With Low Insertion Loss 0

Main parameter

passband frequency	2200MHz～2310MHz
insertion loss	≤0.3dB
rejection	≥30dB@2000 MHz～2120MHz
VSWR	≤1.35
impedance	50Ω
interface type	output:LBX-J,input:pin
operating temperature	-55℃～85℃
external dimensions	158×78×37.8(mm)
weight	420g
