Name: 2575~2635 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-2605-N
Brand: 2575~2635 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-2605-N
SKU: 2575~2635 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-2605-N
Rating: 4.9 (152 reviews)

Home > products > Cavity Bandpass Filter >

2575~2635 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-2605-N

2575~2635 MHz bandpass filter

Waveguide low insertion loss bandpass filter

JT-QTF-2605-N bandpass filter

Request A Quote

2575~2635 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-2605-N

Product Details

Passband Frequency:

2575MHz～2635MHz

Insertion Loss:

≤1dB

VSWR:

≤1.3

Rejection:

≥30dB@2555MHz,≥30dB@2655MHz

Impedance:

50Ω

Interface Type:

N-KFD

Operating Temperature:

-55℃～85℃

External Dimensions:

160×70×53（mm）

Weight:

700g

Highlight:

2575~2635 MHz bandpass filter

Waveguide low insertion loss bandpass filter

JT-QTF-2605-N bandpass filter

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

2200~220 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-2230-MCX

Get Best Price

1575.42 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-1575-MCX-1

Get Best Price

JT-QTF-1575-MCX Cavity Bandpass Filter Customized Waveguide Low Insertion Loss

Get Best Price

JT-QTF-1501-KFD Customized Bandpass Filter with 50Ω Impedance and N-KFD Interface

Get Best Price

86-29-88292913

Contact Now

Product Description

Summary

JT-QTF-2605-N cavity filter is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.

Mainly used in military or civilian communication systems to improve communication quality and suppress interference in this frequency band.

Characteristic

Low insertion loss, high reliability, and strong environmental adaptability.

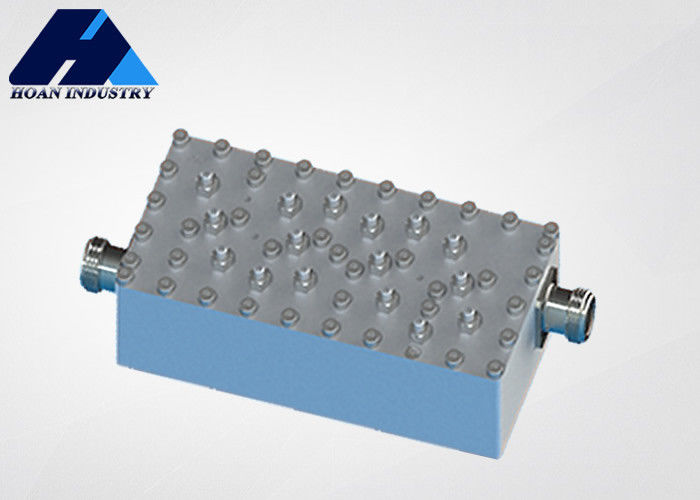

2575~2635 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-2605-N 0

Main parameter

passband frequency	2575MHz～2635MHz
insertion loss	≤1dB
rejection	≥30dB@2555MHz,≥30dB@2655MHz
VSWR	≤1.3
impedance	50Ω
interface type	N-KFD
operating temperature	-55℃～85℃
external dimensions	160×70×53(mm)
weight	700g
