960 To 1225 MHz RF Bandpass Filters UHF VUF 50W RF Cavity Filter

960 To 1225 MHz RF Bandpass Filters UHF VUF 50W RF Cavity Filter

  • 960 To 1225 MHz RF Bandpass Filters UHF VUF 50W RF Cavity Filter
960 To 1225 MHz RF Bandpass Filters UHF VUF 50W RF Cavity Filter
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Passband Frequency: 960MHz~1225MHz Insertion Loss: ≤0.8dB
Rejection: ≥40dB@860MHz, ≥20dB@930MHz ≥30dB@1270MHz, ≥45dB@1325MHz ≥55dB@1477MHz VSWR: ≤1.3
Impedance: 50Ω Interface Type: N-KFD
Operating Temperature: -55℃~85℃ External Dimensions: 130×60×20(mm)
Weight: 360g
Highlight:

960 To 1225 MHz RF Bandpass Filters

,

UHF VUF RF Cavity Filter

,

50W RF Cavity Filter

Summary

JT-QTF-1092-N-1 cavity filter is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.

Mainly used for frequency selection in military communication systems, and can also be used to suppress interference in civilian communication systems.

Characteristic

Low insertion loss, high suppression, high reliability, and strong environmental adaptability.

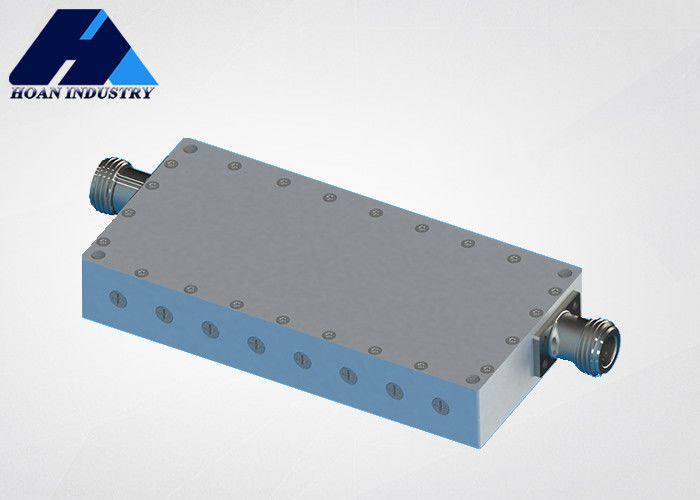

960 To 1225 MHz RF Bandpass Filters UHF VUF 50W RF Cavity Filter 0

Main parameter

passband frequency 960MHz~1225MHz
insertion loss ≤0.8dB
rejection

≥40dB@860MHz, ≥20dB@930MHz

≥30dB@1270MHz, ≥45dB@1325MHz

≥55dB@1477MHz

VSWR ≤1.3
impedance 50Ω
interface type N-KFD
operating temperature -55℃~85℃
external dimensions 130×60×20(mm)
weight 360g
