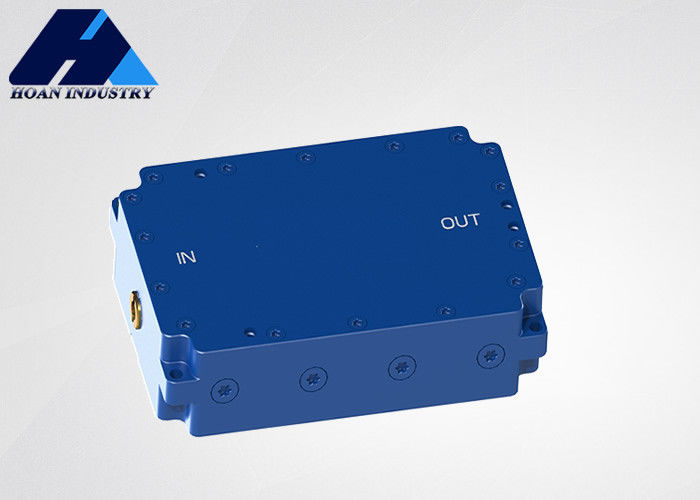

JT-QTF-1268-MCX Cavity Filter Customized Waveguide Low Insertion Loss Bandpass Filter

JT-QTF-1268-MCX Cavity Filter Customized Waveguide Low Insertion Loss Bandpass Filter

  • JT-QTF-1268-MCX Cavity Filter Customized Waveguide Low Insertion Loss Bandpass Filter
JT-QTF-1268-MCX Cavity Filter Customized Waveguide Low Insertion Loss Bandpass Filter
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Center Frequency: F0=1268MHz 1dB Bandwidth: ≥20MHz
Center Frequency Insertion Loss: ≤0.95dB VSWR: ≤1.3@f0±10MHz
Impedance: 50Ω Interface Type: MCX-K
Operating Temperature: -55℃~85℃ External Dimensions: 81.6×52×20(mm)
Weight: 112g Rejection: ≥60dB@1.1GHz,≥65dB@1.38GHz, ≥30dB@f0±40MHz
Average Power: 1W
Highlight:

Customized Waveguide Cavity Filter

,

Low Insertion Loss Cavity Filter

,

JT-QTF-1268-MCX Cavity Filter

Summary

JT-QTF-1268-MCX cavity filter is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.

Mainly used in military Beidou navigation and communication systems, and can also be used in civilian Beidou navigation and communication subsystems.



Characteristic

Small size, light weight, strong environmental adaptability, and high reliability.

JT-QTF-1268-MCX Cavity Filter Customized Waveguide Low Insertion Loss Bandpass Filter 0



Main parameter

center frequency f0=1268MHz
1dB bandwidth ≥20MHz
center frequency insertion loss ≤0.95dB
rejection

≥60dB@1.1GHz,≥65dB@1.38GHz,

≥30dB@f0±40MHz

VSWR ≤1.3@f0±10MHz
average power 1W
impedance 50Ω
interface type MCX-K
temperature -55℃~85℃
external dimensions 81.6×52×20(mm)
weight 112g
