2200~220 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-2230-MCX

MOQ:	1
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Passband Frequency:

2200MHz～2260MHz

Insertion Loss:

≤1dB

VSWR:

≤1.3

Rejection:

≥60dB@2120MHz

Impedance:

50Ω

Interface Type:

MCX-K

Operating Temperature:

-55℃～85℃

External Dimensions:

90×50×15（mm）

Weight:

180g

Highlight:

JT-QTF-2230-MCX bandpass filter

low insertion loss bandpass filter

2200~220 MHz bandpass filter

Product Description

Summary

JT-QTF-2230-MCX cavity filter is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.

Mainly used in or civilian communication systems to improve communication quality and suppress interference in this frequency band.

Characteristic

Small size, light weight, low insertion loss, and high reliability.

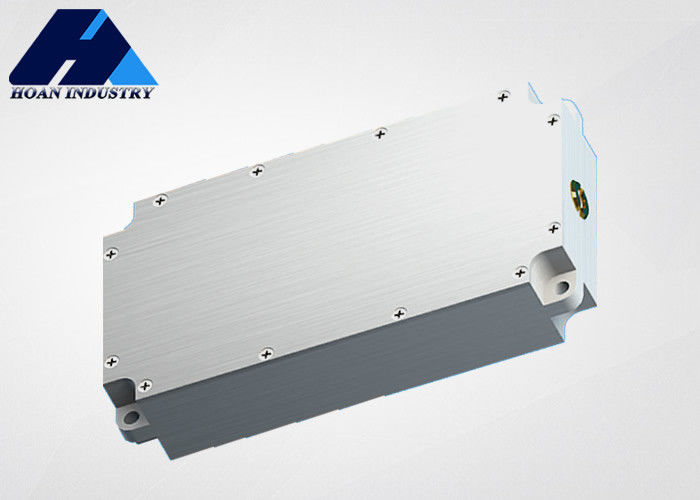

2200~220 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-2230-MCX 0

Main parameter

passband frequency	2200MHz～2260MHz
insertion loss	≤1dB
rejection	≥60dB@2120MHz
VSWR	≤1.3
impedance	50Ω
interface type	MCX-K
operating temperature	-55℃～85℃
external dimensions	90×50×15(mm)
weight	180g
