JT-QTF-1575-MCX Cavity Bandpass Filter Customized Waveguide Low Insertion Loss

MOQ:	1
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Center Frequency:

F0=1575.42MHz

1dB Bandwidth:

≥3MHz

Center Frequency Insertion Loss:

≤1.5dB

VSWR:

≤1.3@f0±1.5MHz

Rejection:

≥50dB@1545MHz ≥55dB@1645MHz

Impedance:

50Ω

Interface Type:

MCX-K

Operating Temperature:

-55℃～85℃

External Dimensions:

86×60×27（mm）

Weight:

130g

Highlight:

customized Cavity Bandpass Filter

JT-QTF-1575-MCX Cavity Bandpass Filter

low insertion loss Cavity Bandpass Filter

Product Description

Summary

JT-QTF-1575-MCX cavity filter is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.

Mainly used in Beidou navigation and communication systems, and can also be used in civilian Beidou navigation and communication subsystems.

Characteristic

Small size, light weight, strong environmental adaptability, and high reliability.

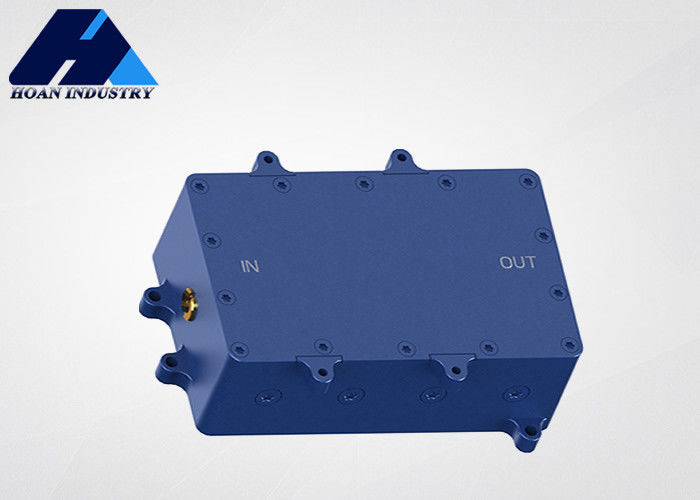

JT-QTF-1575-MCX Cavity Bandpass Filter Customized Waveguide Low Insertion Loss 0

Main parameter

center frequency

f0=1575.42MHz

1dB bandwidth

≥3MHz

center frequency insertion loss

≤1.5dB

rejection

VSWR

≤1.3@f0±1.5MHz

average power

impedance

50Ω

interface type

MCX-K

operating temperature

-55℃～85℃

external dimensions

86×60×27(mm)

weight

130g
