1575.42 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-1575-MCX-1

1575.42 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-1575-MCX-1

  • 1575.42 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-1575-MCX-1
1575.42 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-1575-MCX-1
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Center Frequency: F0=1575.42MHz Center Frequency Insertion Loss: ≤1.5dB
VSWR: ≤1.3@f0±1.5MHz Rejection: ≥30dB@1545MHz ≥50dB@1645MHz
Impedance: 50Ω Interface Type: IN:MCX-K,OUT: Glass Insulator
Operating Temperature: -55℃~85℃ External Dimensions: 55×47×16(mm)
Weight: 50g
Highlight:

1575.42 MHz bandpass filter

,

Waveguide low insertion loss bandpass filter

,

JT-QTF-1575-MCX-1 bandpass filter

Summary

JT-QTF-1575-MCX-1 cavity filter is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.

Mainly used in military Beidou navigation and communication systems, and can also be used in civilian Beidou navigation and communication subsystems.



Characteristic

Small size, light weight, strong environmental adaptability, and high reliability.

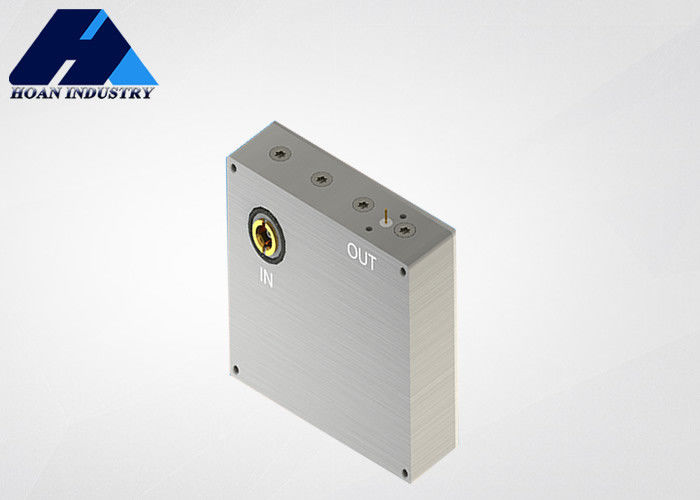

1575.42 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-1575-MCX-1 0

Main parameter

center frequency f0=1575.42MHz
center frequency insertion loss ≤1.5dB
rejection

≥30dB@1545MHz

≥50dB@1645MHz

VSWR ≤1.3@f0±1.5MHz
impedance 50Ω
interface type IN:MCX-K,OUT: glass insulator
operating temperature -55℃~85℃
external dimensions 55×47×16(mm)
weight 50g
