JT-QTF-1300-DIN Cavity Bandpass Filter 1200-1400 MHz Customized Waveguide Low Insertion Loss

JT-QTF-1300-DIN Cavity Bandpass Filter 1200-1400 MHz Customized Waveguide Low Insertion Loss

  • JT-QTF-1300-DIN Cavity Bandpass Filter 1200-1400 MHz Customized Waveguide Low Insertion Loss
JT-QTF-1300-DIN Cavity Bandpass Filter 1200-1400 MHz Customized Waveguide Low Insertion Loss
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Passband Frequency: 1200MHz~1400MHz Insertion Loss: ≤0.5dB
VSWR: ≤1.3 Rejection: ≥50dB@DC~1000MHz ≥50dB@1800MHz~3.5GHz
Impedance: 50Ω Interface Type: DIN-K
Operating Temperature: -55℃~85℃ External Dimensions: 12×82×50(mm)
Weight: 400g
Highlight:

DIN Cavity Bandpass Filter

,

1200-1400 MHz Cavity Bandpass Filter

,

Customized Waveguide Cavity Bandpass Filter

Summary

JT-QTF-1300-DIN cavity filter is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.

Mainly used in military or civilian communication systems to improve communication quality and suppress interference in this frequency band.



Characteristic

Low insertion loss, high reliability, and strong environmental adaptability.

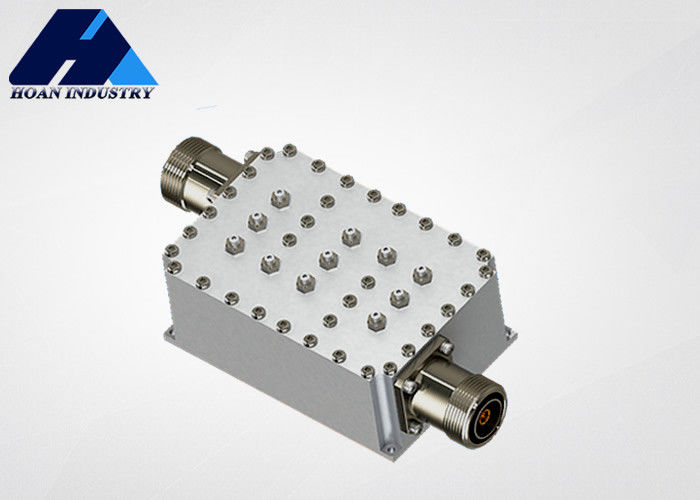

JT-QTF-1300-DIN Cavity Bandpass Filter 1200-1400 MHz Customized Waveguide Low Insertion Loss 0

Main parameter

passband frequency 1200MHz~1400MHz
insertion loss ≤0.5dB
rejection

≥50dB@DC~1000MHz

≥50dB@1800MHz~3.5GHz

VSWR ≤1.3
impedance 50Ω
interface type DIN-K
operating temperature -55℃~85℃
external dimensions 12×82×50(mm)
weight 400g
